Browning® 1078971 1078971

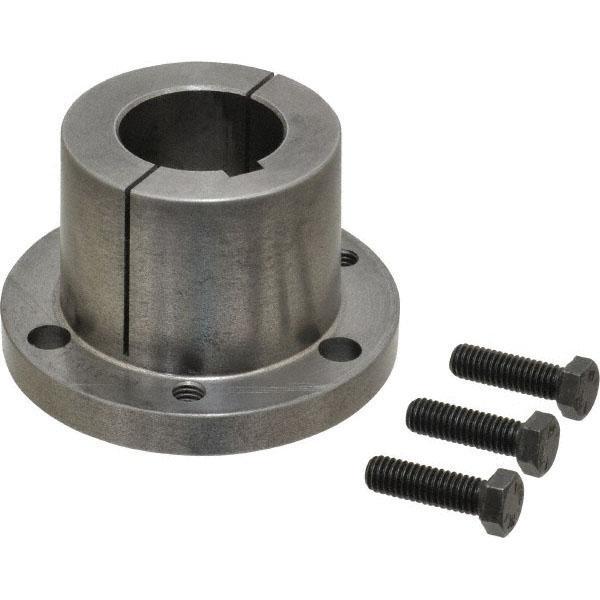

Browning Q1 Series 1078971 Bushing, 1-5/8 in Dia Bore, 2.7657 in Small End, 2-7/8 in Large End Dia Barrel, 1-1/4 in L

Browning® Q1 Series 1078971 Bushing, 1-5/8 in Dia Bore, 2.7657 in, 2-7/8 in Dia Barrel, 1-1/4 in L, Steel

Browning® Q1 Series 1078971 Bushing, 1-5/8 in Dia Bore, 2.7657 in, 2-7/8 in Dia Barrel, 1-1/4 in L, Steel 1078971

Browning® Bushing, Series: Q1 Series, Finished with Keyway Bore, 1-5/8 in Bore Diameter, 4-1/8 in OD, 2.7657 in, 2-7/8 in Barrel Diameter, 1-1/4 in Length, 3/8 x 3/16 in Keyway Size, Solid Flange Type, 17/32 in Flange Thickness, 348 in-lb Torque, Steel

Barrel Diameter      :      2.7657 in, 2-7/8 in
Bore Diameter      :      1-5/8 in
Bore Type      :      Finished with Keyway
Flange Thickness      :      17/32 in
Flange Type      :      Solid
Keyway Size      :      3/8 x 3/16 in
Length      :      1-1/4 in
Material      :      Steel
Outside Diameter      :      4-1/8 in
Series      :      Q1 Series
Torque Rating      :      348 in-lb
  • Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
  • Highest torque carrying capacity
  • Double split barrel improves true concentricity-grips the shaft with positive clamp fit
