Browning® R1 3 3/4 R1 3 3/4

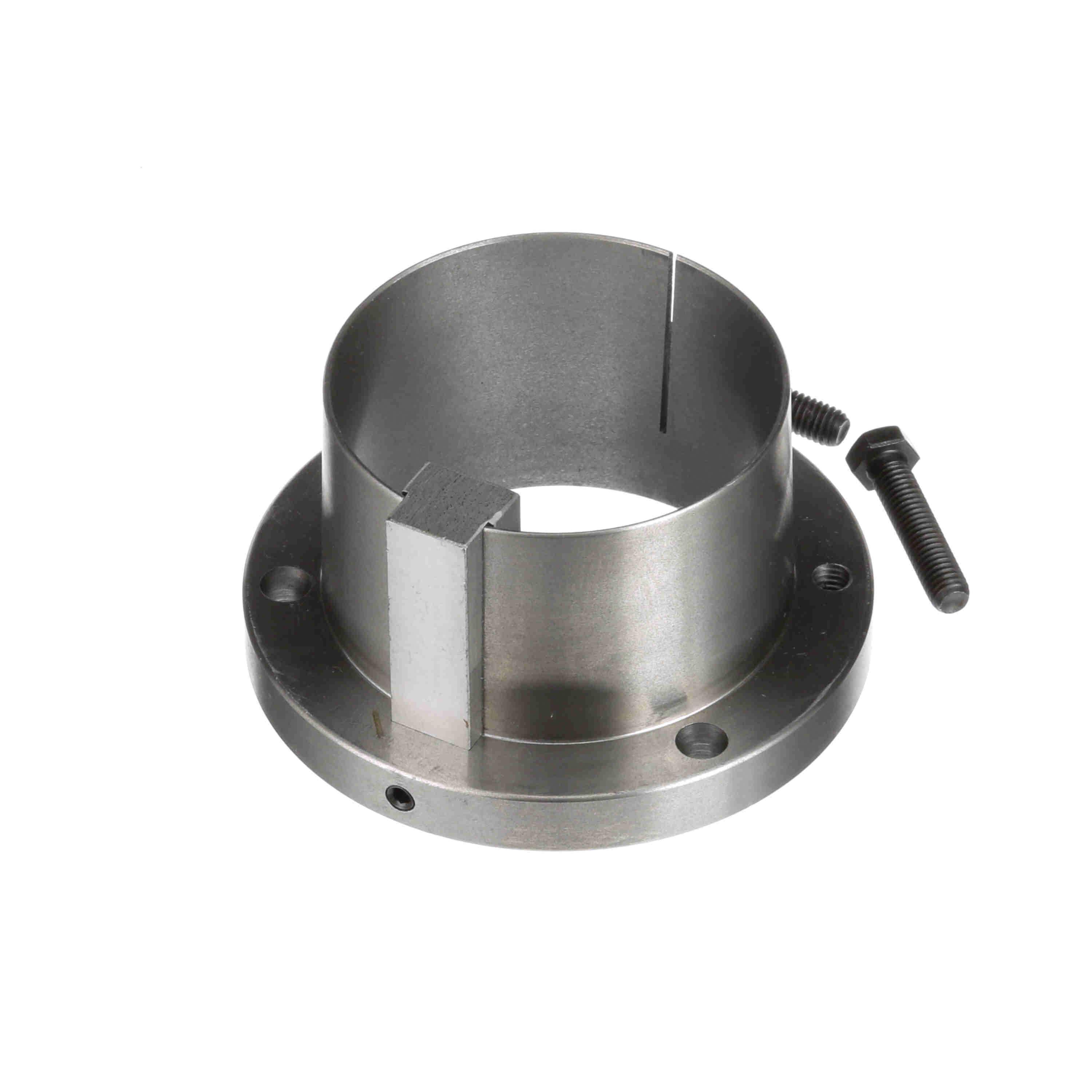

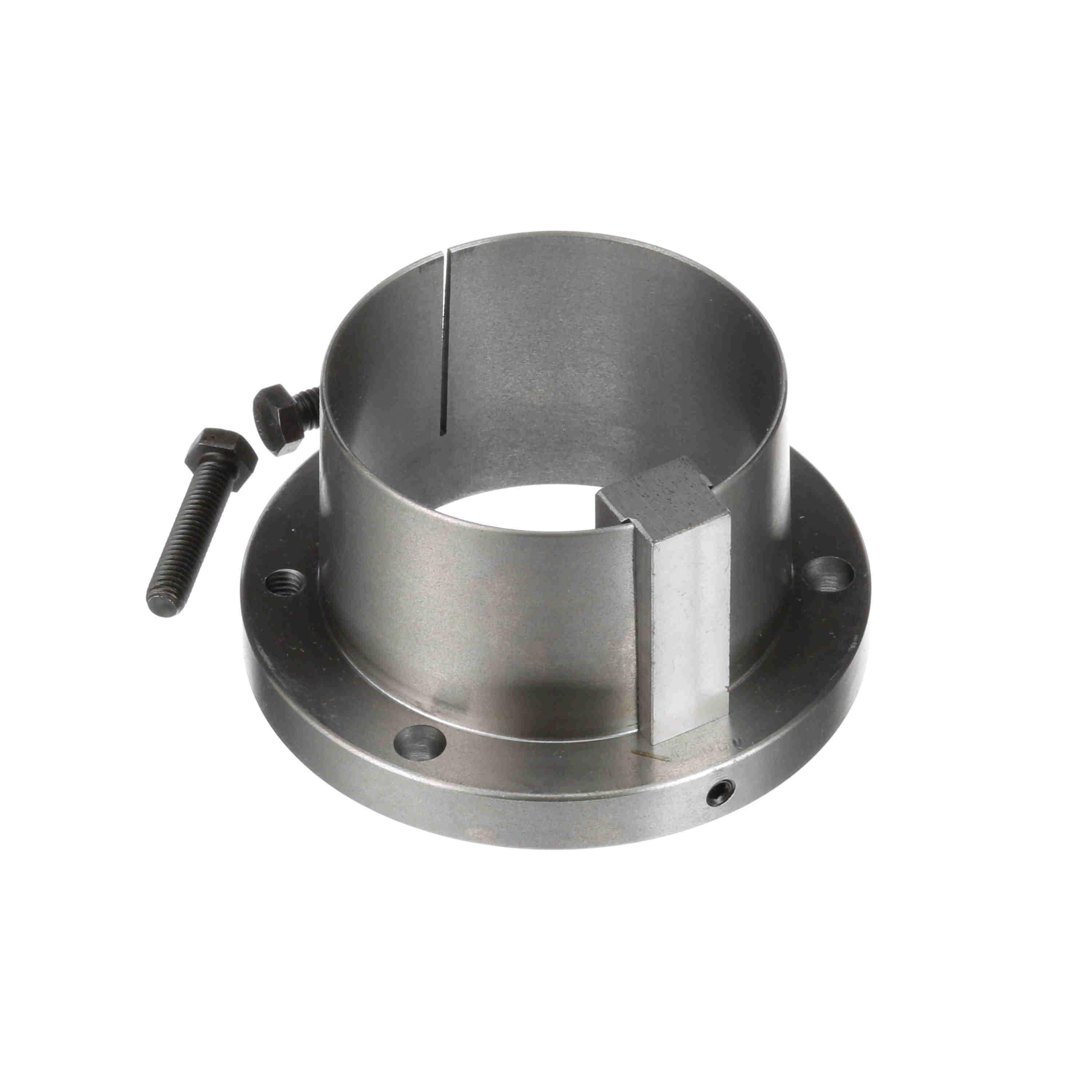

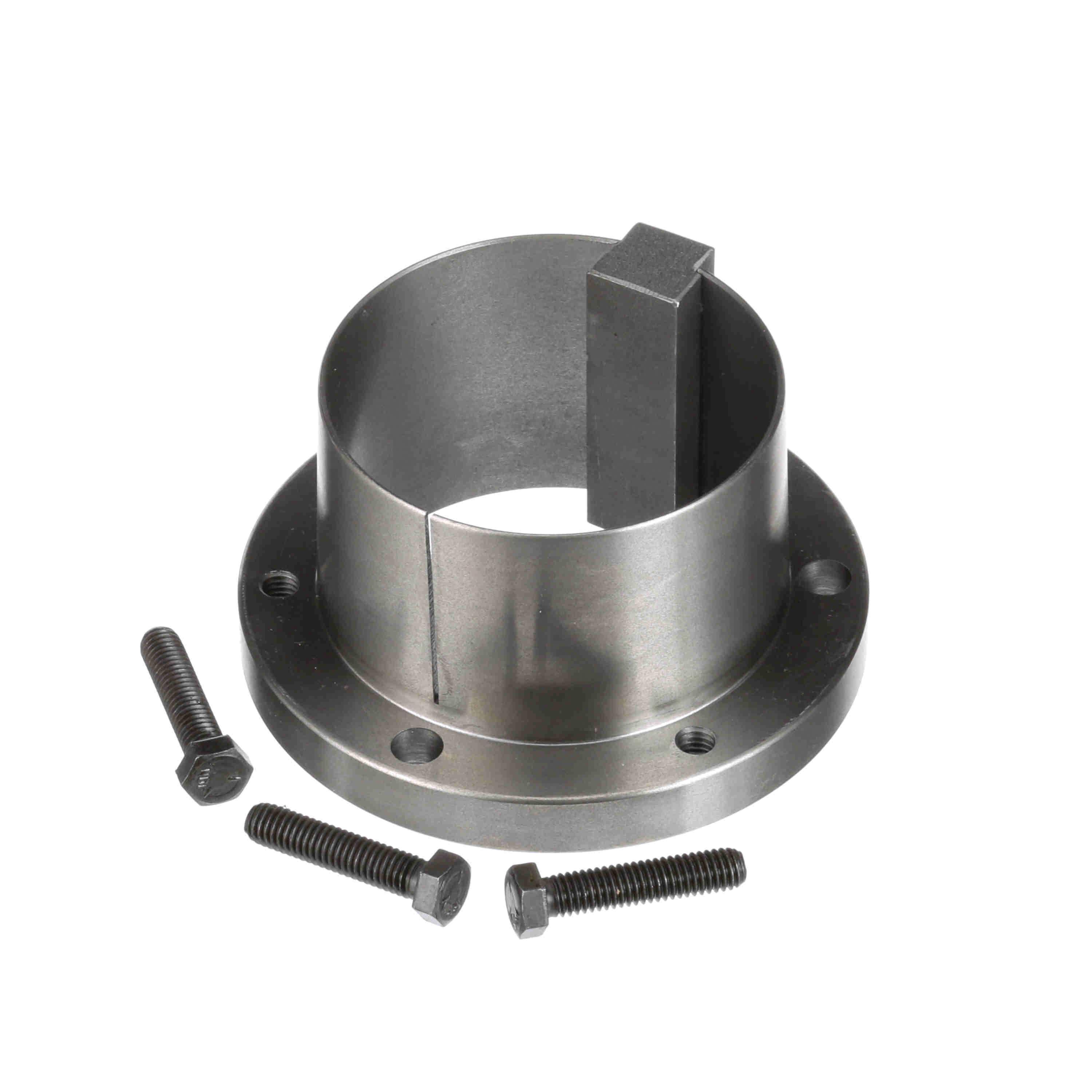

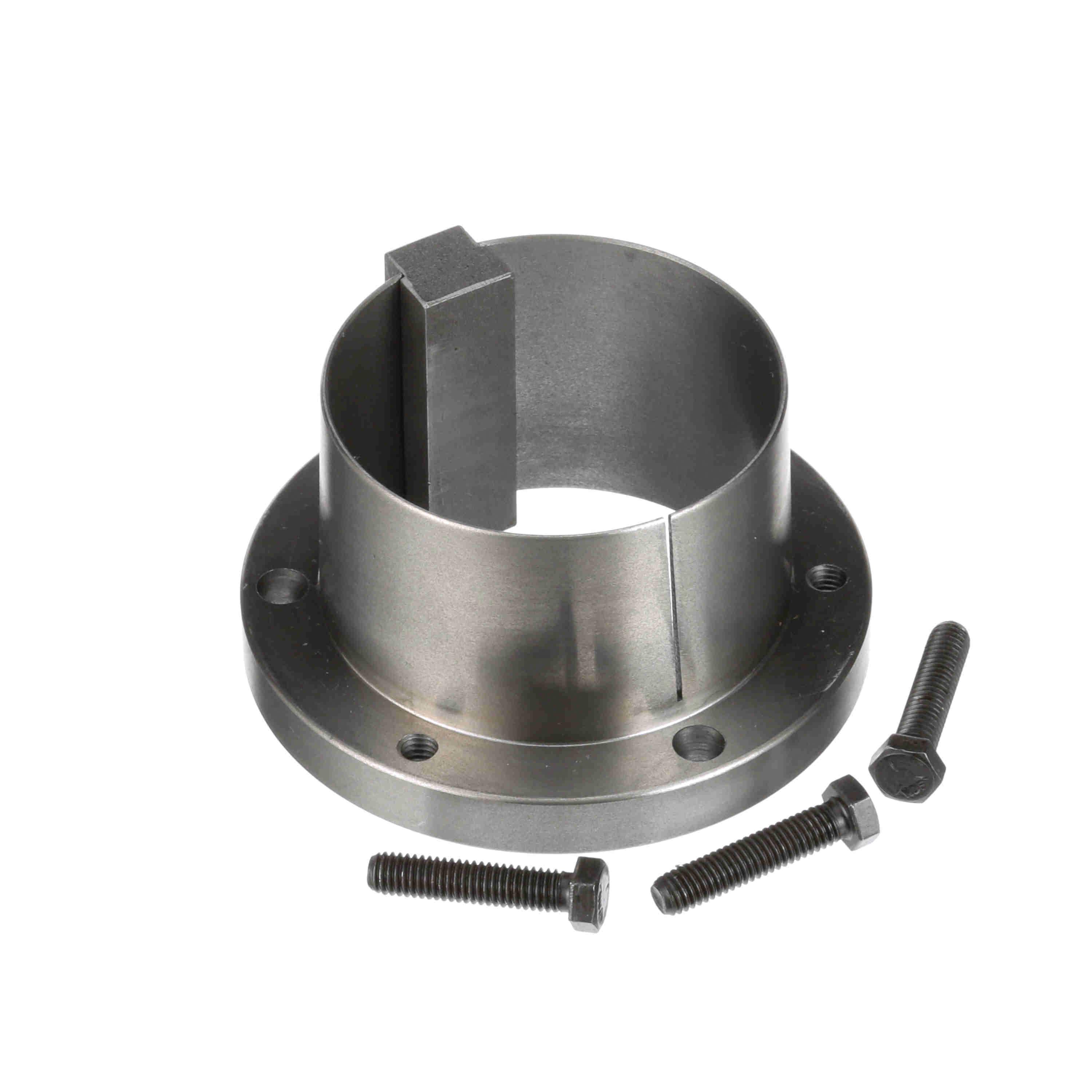

Browning R1 3 3/4 Split Taper Bushing, 3-3/4 in Dia Bore, 2-7/8 in L, Sintered Steel

Browning® R1 3 3/4 Split Tapered Bushing, 3-3/4 in Dia Bore, 2-7/8 in L, Steel

Browning® R1 3 3/4 Split Tapered Bushing, 3-3/4 in Dia Bore, 2-7/8 in L, Steel R1 3 3/4

Browning® Split Tapered Bushing, Model: R1-R2_Type2_BushingMaster, 3-3/4 in Bore Diameter, 5-3/8 in OD, 2-7/8 in Length, 7/8 x 7/16 in Keyway Size, Solid Flange Type, 3 Number of Cap Screws, 3/8 x 1-3/4 in Cap Screw Size, 348 in-lb Torque, Steel

Bore Diameter      :      3-3/4 in
Cap Screw Size      :      3/8 x 1-3/4 in
Flange Type      :      Solid
Keyway Size      :      7/8 x 7/16 in
Length      :      2-7/8 in
Material      :      Steel
Model      :      R1-R2_Type2_BushingMaster
Number of Cap Screws      :      3
Outside Diameter      :      5-3/8 in
Torque Rating      :      348 in-lb
  • If this bushing ever fails Browning will replace it free of charge
  • Solid flange and double split barrel assures better concentricity to the shaft
  • Key-to-key drive, with keys on both the shaft and product to provide the strongest possible drive
  • 3/4 in/ft taper on barrel, self-locking taper provides the highest degree of mechanical locking product to product
  • Lifetime warranty - if this bushing ever fails Browning will replace it free of charge
