Browning® SSRPS-112 SSRPS-112

Browning SSRPS-112 Pillow Block Ball Bearing, 3/4 in Dia Bore, 3-3/8 in L Bolt Center-to-Center

Browning® SSRPS 100 Series SSRPS-112 Pillow Block Ball Bearing, 3/4 in Dia Bore, 3-3/8 in L Bolt Center-to-Center

Browning® SSRPS 100 Series SSRPS-112 Pillow Block Ball Bearing, 3/4 in Dia Bore, 3-3/8 in L Bolt Center-to-Center SSRPS-112

Browning® Pillow Block Ball Bearing, Series: SSRPS 100 Series, 3/4 in Bore Diameter, 1-1/4 in Base Width, 1-1/4 in Housing Width, 3-3/8 in Bolt Center-to-Center Length, 1-1/8 in Base to Bore Centerline, 3/8 in Bolt Size, 250 lb Dynamic, 1444 lb Static Load, 4000 rpm Maximum Speed, Straight Bore, Ball Rolling Element, Intermediate, Single Lip Seal Type, Set Screw Locking Device, 2-Bolt Base Mounting, Steel Bearing Material, Steel Cage Material, Black Oxide, -20 to 200 deg F, 2.203 in H x 4.25 in L

Base Width      :      1-1/4 in
Base to Bore Centerline      :      1-1/8 in
Bearing Material      :      Steel
Bolt Center-to-Center Length      :      3-3/8 in
Bolt Size      :      3/8 in
Bore Diameter      :      3/4 in
Bore Type      :      Straight
Cage Material      :      Steel
Dimensions      :      2.203 in H x 4.25 in L
Duty Type      :      Intermediate
Finish      :      Black Oxide
Housing Width      :      1-1/4 in
Load Capacity      :      250 lb Dynamic, 1444 lb Static
Locking Device      :      Set Screw
Maximum Speed Rating      :      4000 rpm
Mounting Type      :      2-Bolt Base
Rolling Element      :      Ball
Seal Type      :      Single Lip
Series      :      SSRPS 100 Series
Temperature Rating      :      -20 to 200 deg F

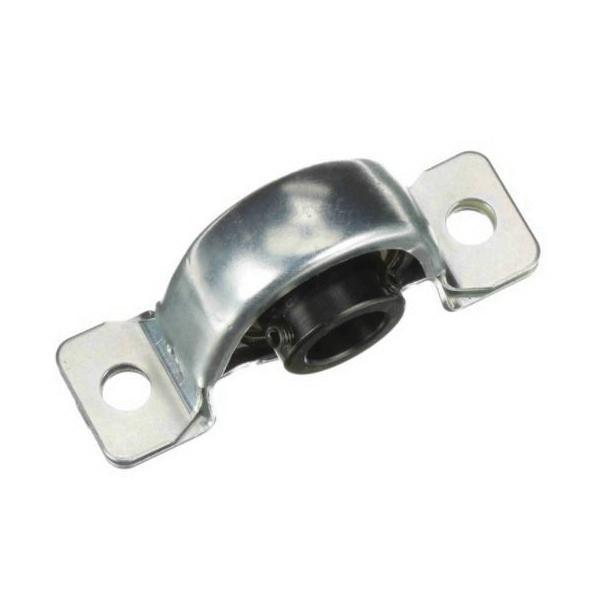

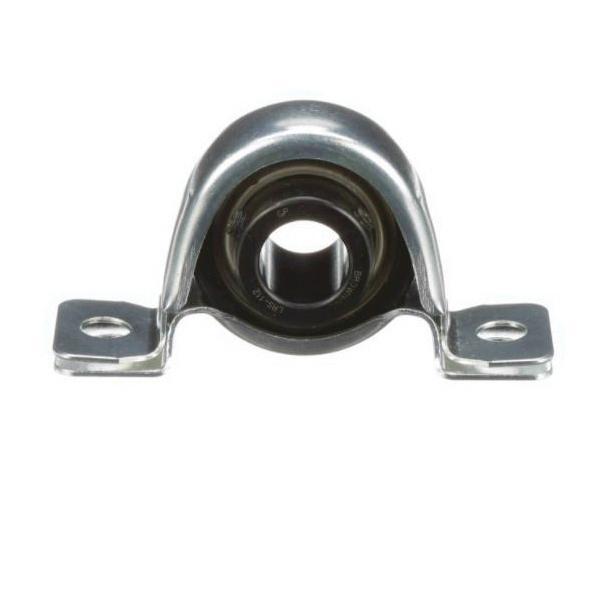

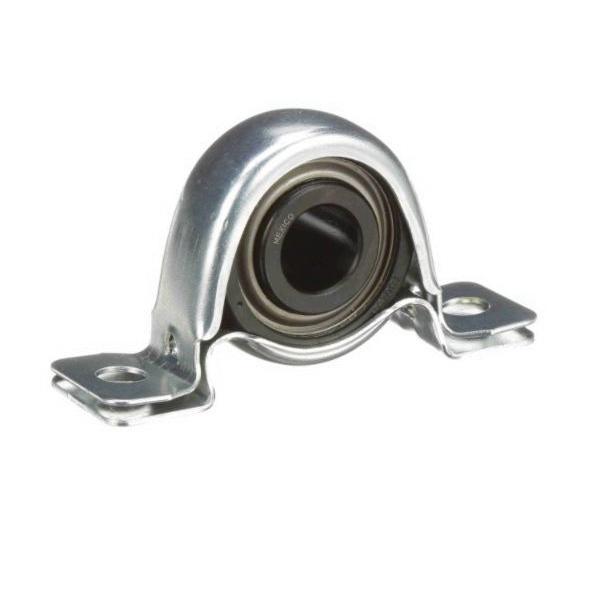

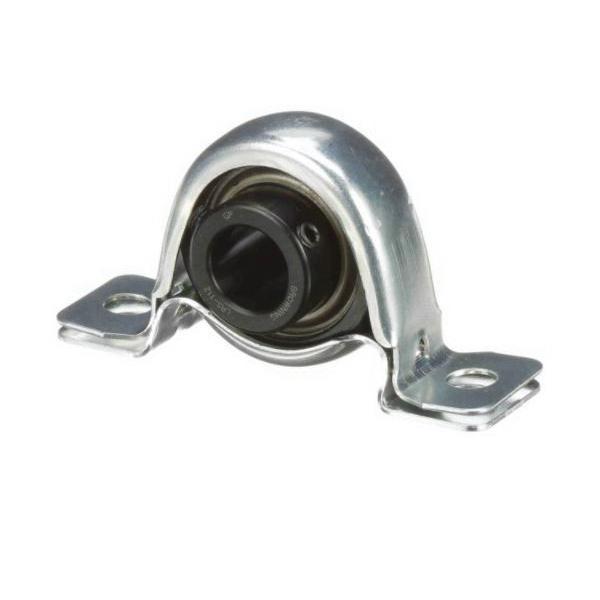

  • Stamped steel housing with bearing insert in rubber grommet
  • Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
