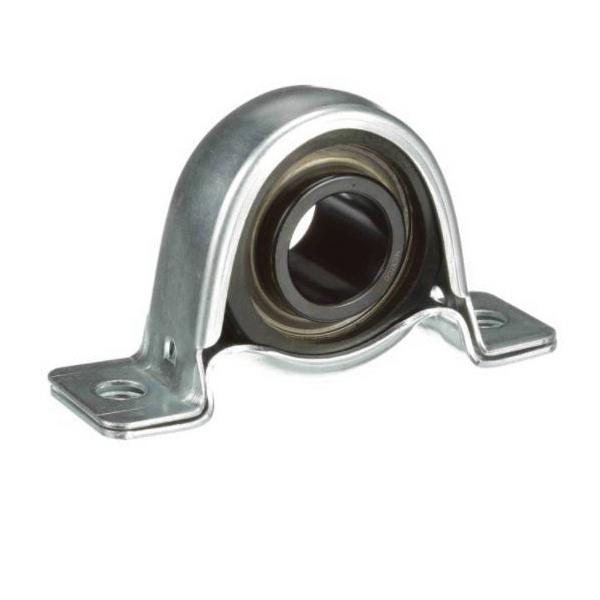

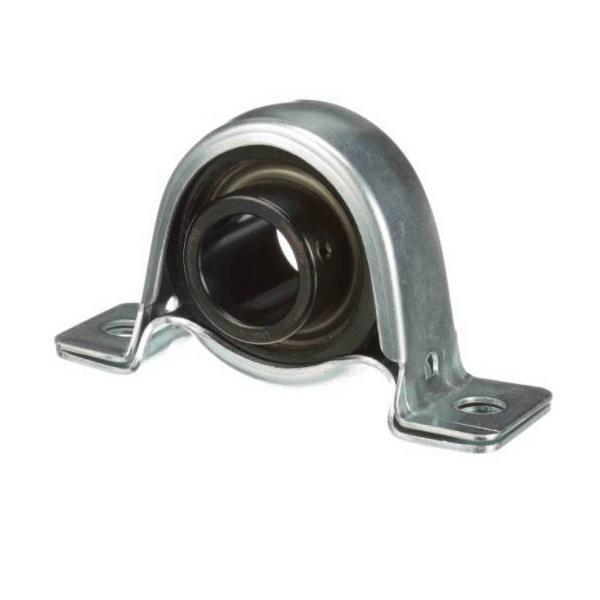

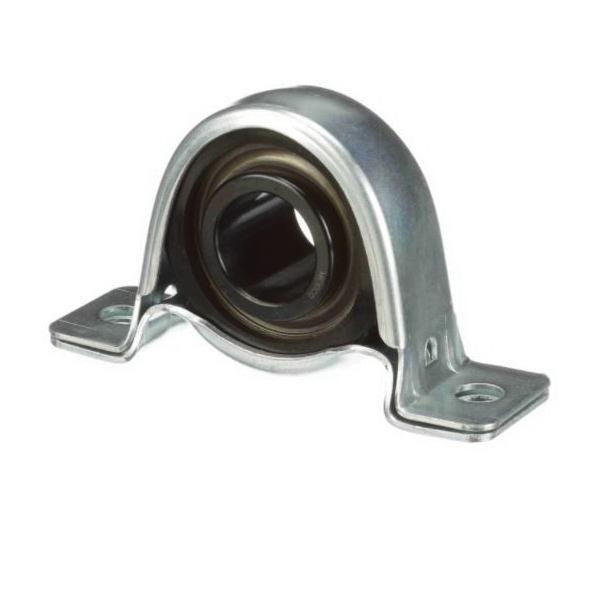

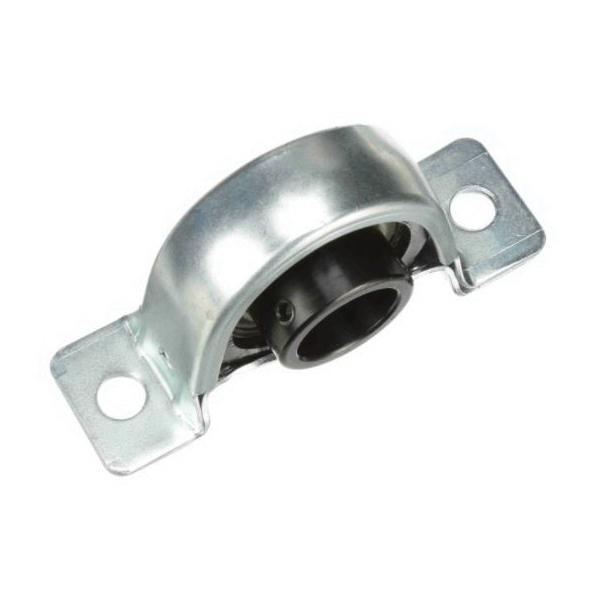

Browning SSRPS-116 Pillow Block Ball Bearing, 1 in Dia Bore, 3-3/4 in L Bolt Center-to-Center
Browning® SSRPS 100 Series SSRPS-116 Pillow Block Ball Bearing, 1 in Dia Bore, 3-3/4 in L Bolt Center-to-Center
Browning® SSRPS 100 Series SSRPS-116 Pillow Block Ball Bearing, 1 in Dia Bore, 3-3/4 in L Bolt Center-to-Center SSRPS-116- Brand Name: Browning®
- Part Number: SSRPS-116
- UPC: 662460343105
- Check Stock
Add To Favorites ListBrowning® Pillow Block Ball Bearing, Series: SSRPS 100 Series, 1 in Bore Diameter, 1-3/8 in Base Width, 1-3/8 in Housing Width, 3-3/4 in Bolt Center-to-Center Length, 1-5/16 in Base to Bore Centerline, 3/8 in Bolt Size, 300 lb Dynamic, 1651 lb Static Load, 3500 rpm Maximum Speed, Straight Bore, Ball Rolling Element, Intermediate, Single Lip Seal Type, Set Screw Locking Device, 2-Bolt Base Mounting, Steel Bearing Material, Steel Cage Material, Black Oxide, -20 to 200 deg F, 2.594 in H x 4.625 in L
| Base Width | : | 1-3/8 in |
| Base to Bore Centerline | : | 1-5/16 in |
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 3-3/4 in |
| Bolt Size | : | 3/8 in |
| Bore Diameter | : | 1 in |
| Bore Type | : | Straight |
| Cage Material | : | Steel |
| Dimensions | : | 2.594 in H x 4.625 in L |
| Duty Type | : | Intermediate |
| Finish | : | Black Oxide |
| Housing Width | : | 1-3/8 in |
| Load Capacity | : | 300 lb Dynamic, 1651 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed Rating | : | 3500 rpm |
| Mounting Type | : | 2-Bolt Base |
| Rolling Element | : | Ball |
| Seal Type | : | Single Lip |
| Series | : | SSRPS 100 Series |
| Temperature Rating | : | -20 to 200 deg F |
- Stamped steel housing with bearing insert in rubber grommet
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
