Browning® 3B90 3B90

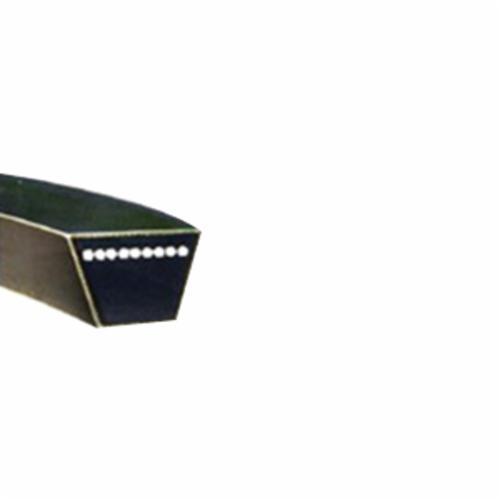

Browning Super Gripbelt 3B90 V-Belt, B Section, 93 in L Outside, 21/32 in W Top, 7/16 in Thick

Browning® Super Gripbelt® 3B90 V-Belt, B Section, 93 in L Outside, 21/32 in W Top, 7/16 in Thick, Nylon/Synthetic Fiber

Browning® Super Gripbelt® 3B90 V-Belt, B Section, 93 in L Outside, 21/32 in W Top, 7/16 in Thick, Nylon/Synthetic Fiber 3B90

Browning® Super Gripbelt® V-Belt, B Section, 93 in Outside Length, 21/32 in Top Width, 7/16 in Thickness, 91.8 in Pitch Length, 3 Ribs, Wrapped Construction, Nylon/Synthetic Fiber, -60 to 250 deg F

Construction      :      Wrapped
Material      :      Nylon/Synthetic Fiber
Number of Ribs      :      3
Outside Length      :      93 in
Pitch Length      :      91.8 in
Section Size      :      B
Temperature Rating      :      -60 to 250 deg F
Thickness      :      7/16 in
Top Width      :      21/32 in
  • Wrapped construction-provides smooth quiet operation, single fabric design allows greater flexibility, wrapped belts are more tolerant to slipping and misalignment than raw edge belts
  • Close belt tolerance-browning belts offer the "code 1" match belt system on all classical and 358 belts, allowing easy selection of just one match number for each belt size, this ensures tighter than RMA standards
  • High tensile cord-specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
  • Static conductivity
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_3B90_Catalog.pdf
