Browning® 2TB70 2TB70

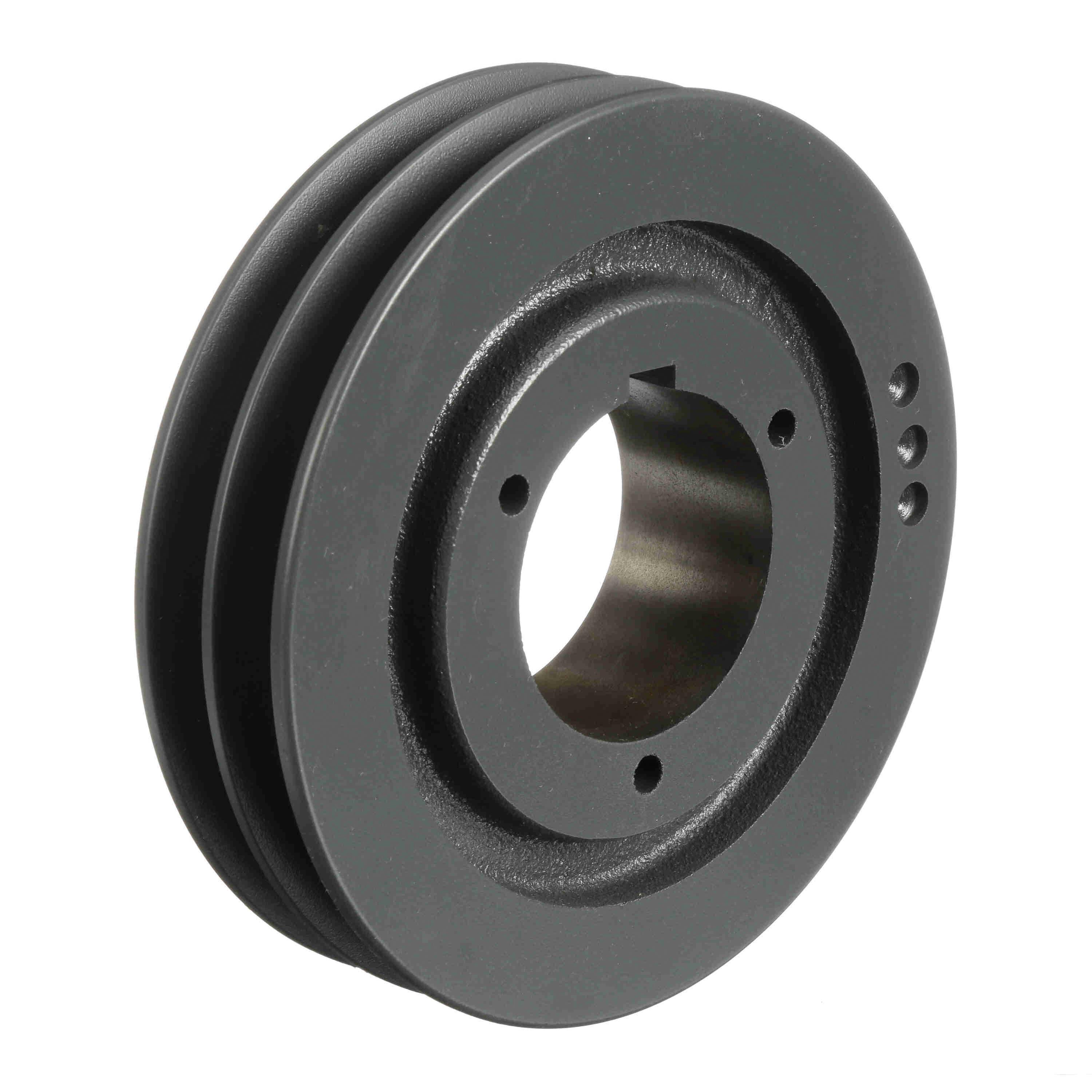

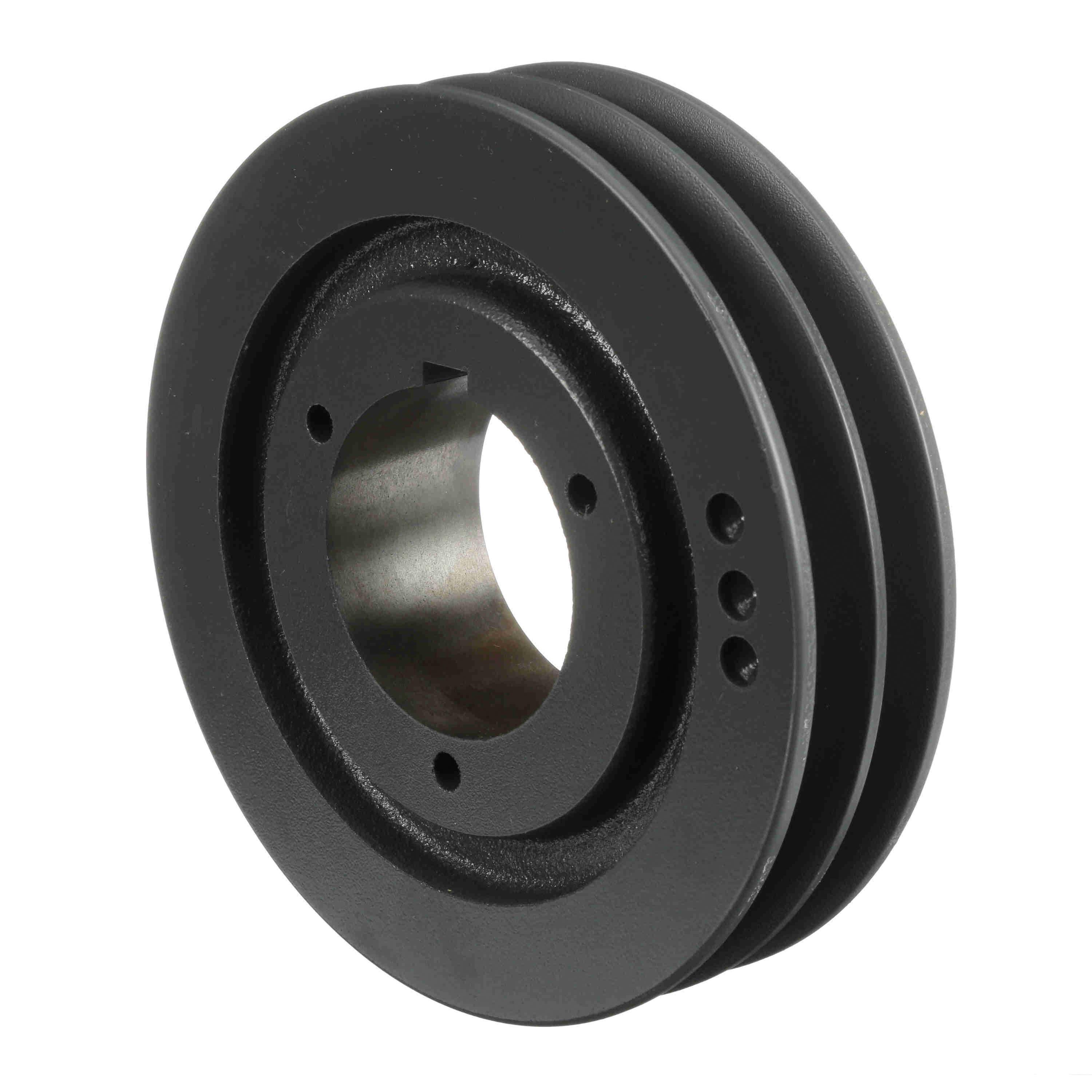

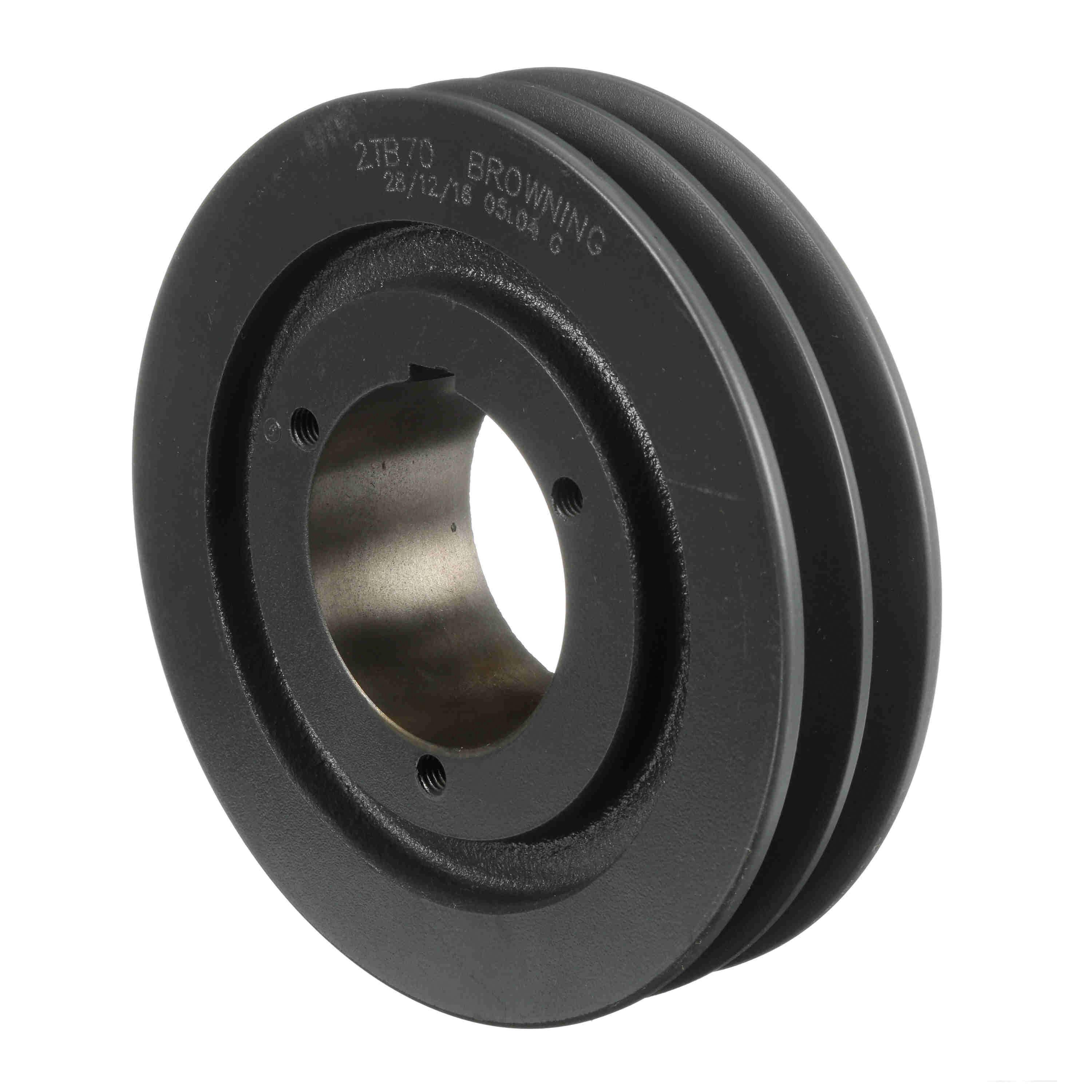

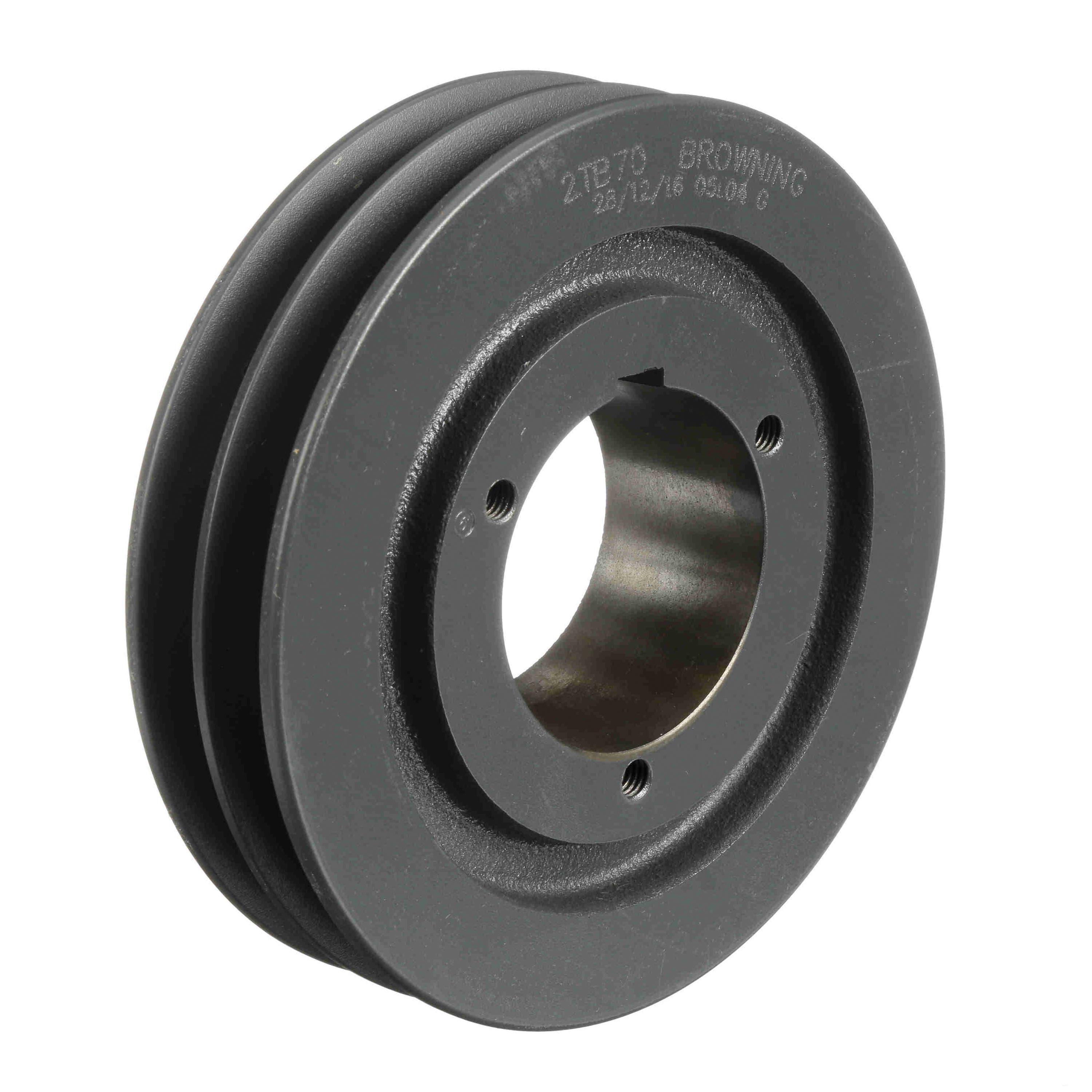

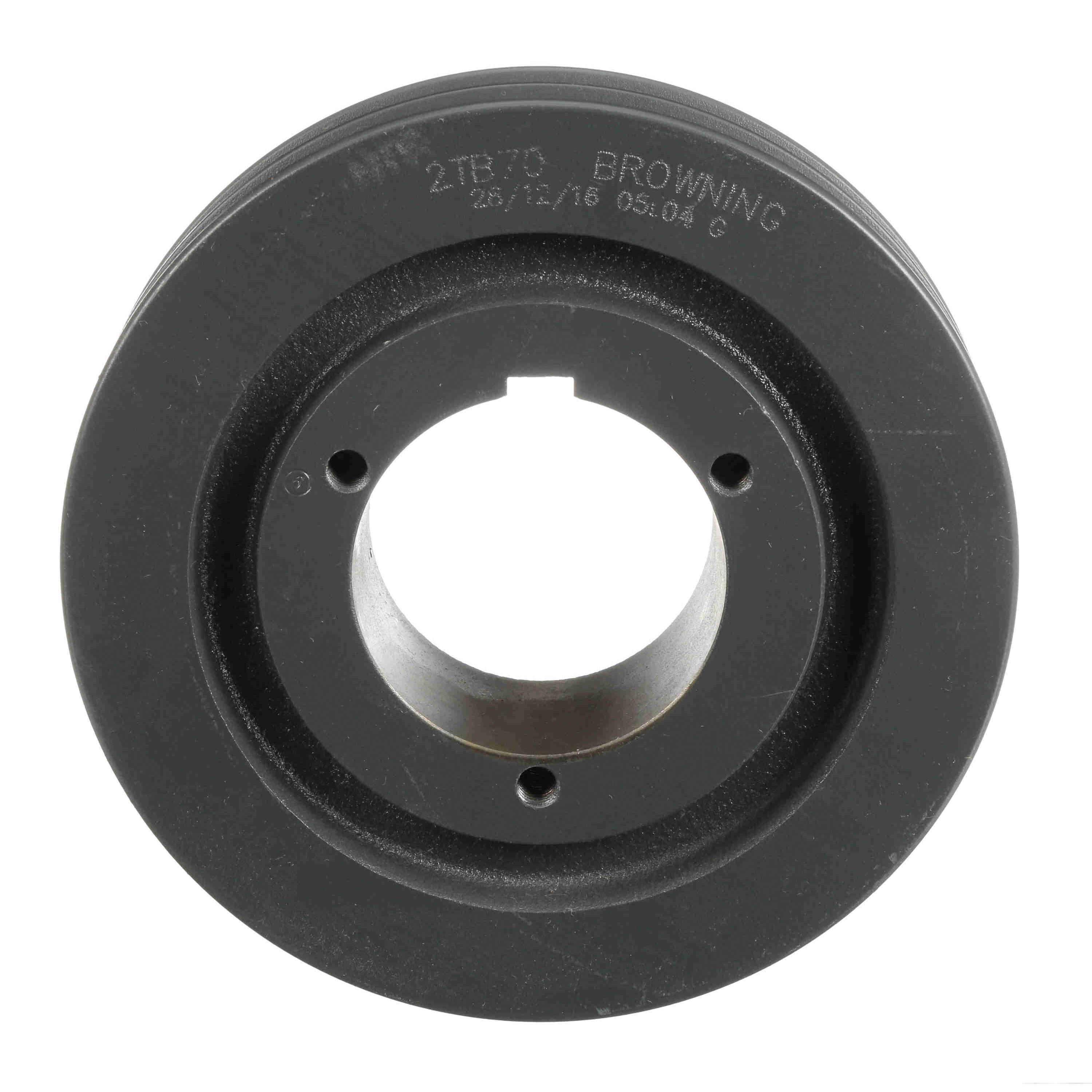

Browning TB GRIPBELT 2TB70 V-Belt Sheave, 0.75 to 2.688 in Dia Bore, Bushed Bore, 7.35 in OD, 2-Groove

Browning® TB Gripbelt® 2TB70 V-Belt Sheave, 0.75 to 2.688 in Dia Bore, Bushed Bore, 7.35 in OD, 2 -Groove

Browning® TB Gripbelt® 2TB70 V-Belt Sheave, 0.75 to 2.688 in Dia Bore, Bushed Bore, 7.35 in OD, 2 -Groove 2TB70

Browning® TB Gripbelt® V-Belt Sheave, Bushed Bore, 0.75 to 2.688 in Bore Diameter, 7.35 in OD, 7.3 in Pitch Diameter, 2 Number of Grooves, 1-3/4 in Face Width, Split Taper Bushing Type, 2-25/32 in Overall Length, Iron, For Use With: A and B Cross Section Belts

Bore Diameter      :      0.75 to 2.688 in
Bore Type      :      Bushed
Bushing Type      :      Split Taper
Face Width      :      1-3/4 in
Material      :      Iron
Number of Grooves      :      2
Outside Diameter      :      7.35 in
Overall Length      :      2-25/32 in
Pitch Diameter      :      7.3 in
Suitable For Use With      :      A and B Cross Section Belts
  • Incorporates Browning® split taper bushing, the only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • Combination groove, all Browning® B sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
