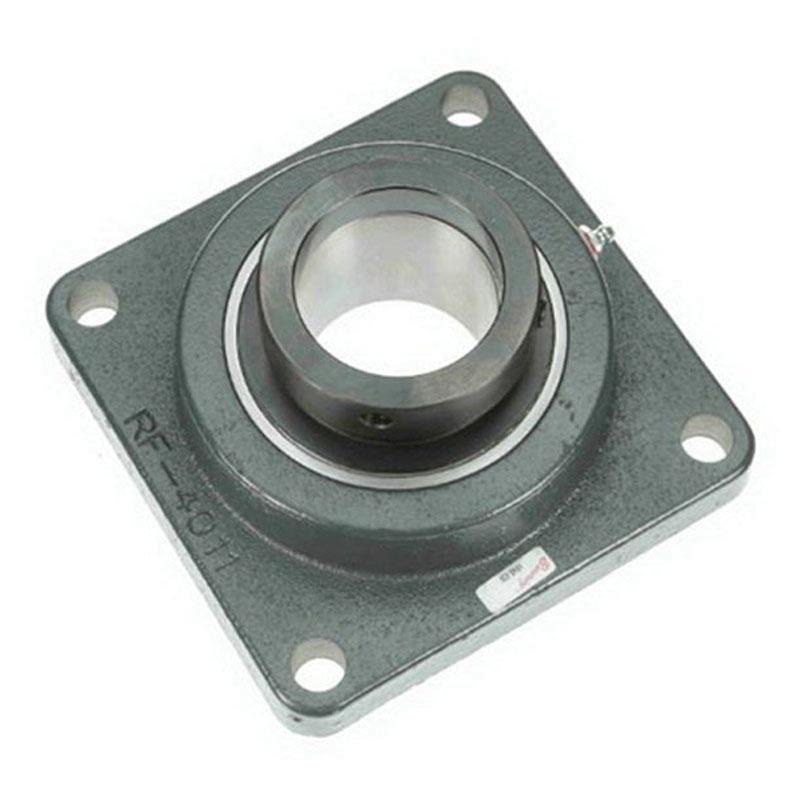

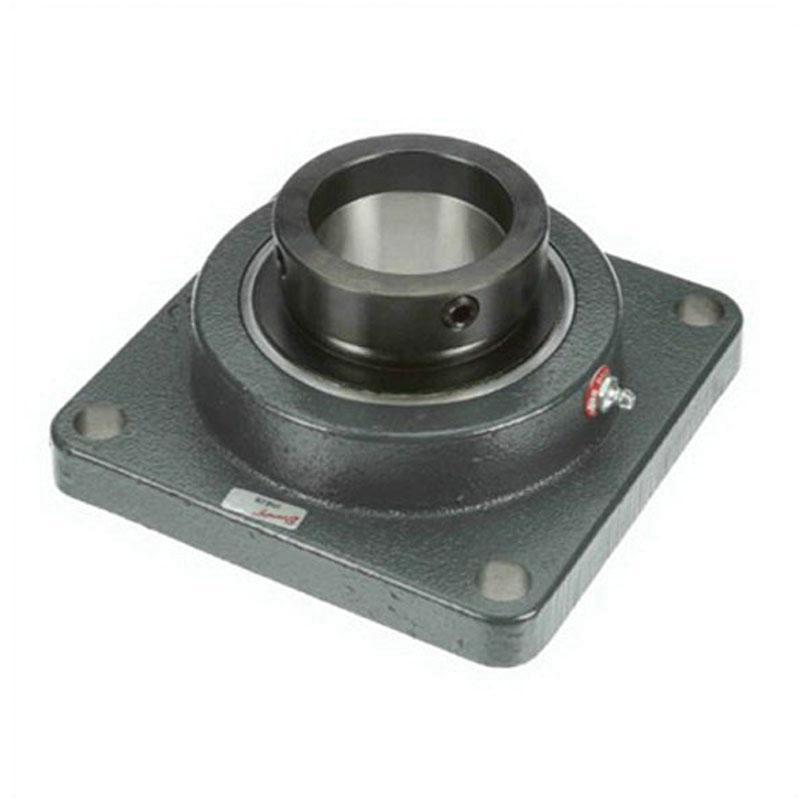

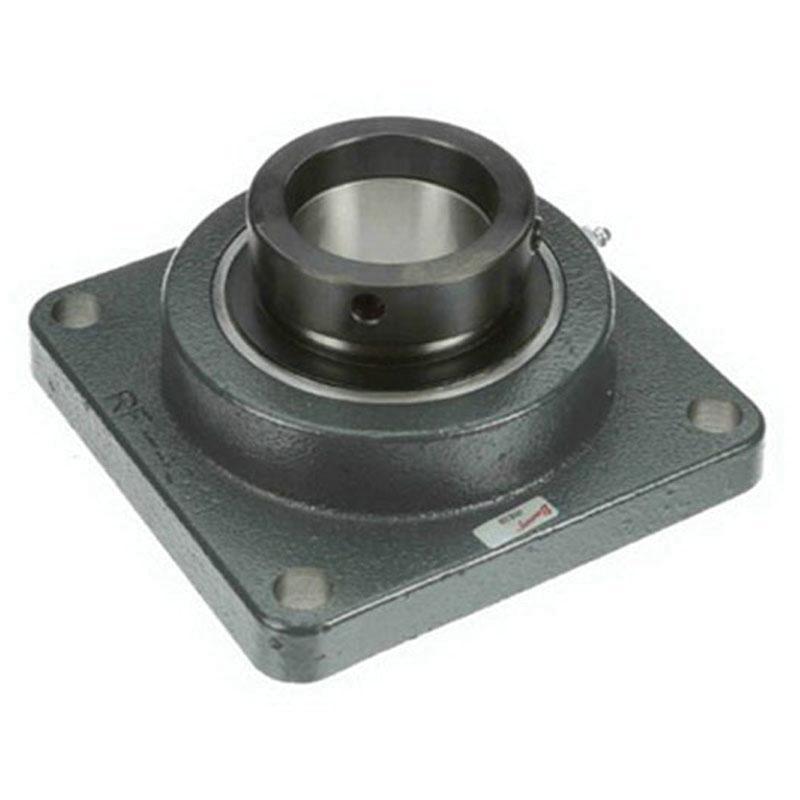

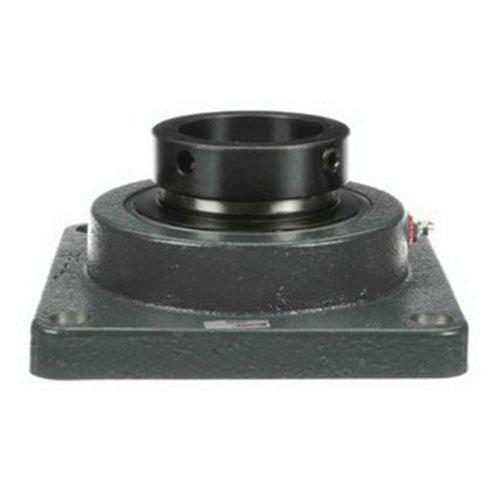

Browning VF4E-239 Flange Ball Bearing, Ball Rolling Element, 2-7/16 in Dia Bore, Eccentric Shaft Locking
Browning® VF4E-239 Flange Ball Bearing, Ball Rolling Element, 2-7/16 in Dia Bore, Eccentric Shaft Locking
Browning® VF4E-239 Flange Ball Bearing, Ball Rolling Element, 2-7/16 in Dia Bore, Eccentric Shaft Locking VF4E-239- Brand Name: Browning®
- Part Number: VF4E-239
- UPC: 662289522200
- Check Stock
Add To Favorites ListBrowning® Flange Ball Bearing, Ball Rolling Element Type, 2-7/16 in Bore Diameter, Eccentric Shaft Locking Type, 11789 lb Dynamic Load Capacity, 8150 lb Static Load Capacity, Maximum Speed: 2500 rpm, Steel Bearing Insert Material, Iron Bearing Housing Material, 4 Bolt Holes, 5-5/8 in Bolt Hole Center-to-Center, -20 to 200 deg F, Lithium Complex NLGI 2 Grease Lubrication, 6-7/8 in Overall Width, 3-1/4 in Overall Height
| Bearing Housing Material | : | Iron |
| Bearing Insert Material | : | Steel |
| Bolt Hole Center-to-Center | : | 5-5/8 in |
| Bore Diameter | : | 2-7/16 in |
| Dynamic Load Capacity | : | 11789 lb |
| Lubrication | : | Lithium Complex NLGI 2 Grease |
| Maximum Speed | : | 2500 rpm |
| Number of Bolt Holes | : | 4 |
| Overall Height | : | 3-1/4 in |
| Overall Width | : | 6-7/8 in |
| Rolling Element Type | : | Ball |
| Shaft Locking Type | : | Eccentric |
| Static Load Capacity | : | 8150 lb |
| Temperature Rating | : | -20 to 200 deg F |
- Powder-coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
Instruction/Installation Manual
