Browning® VF4S-222 VF4S-222

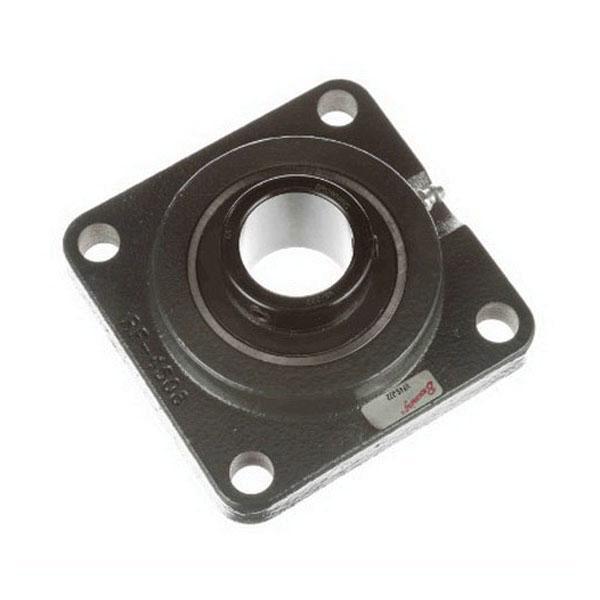

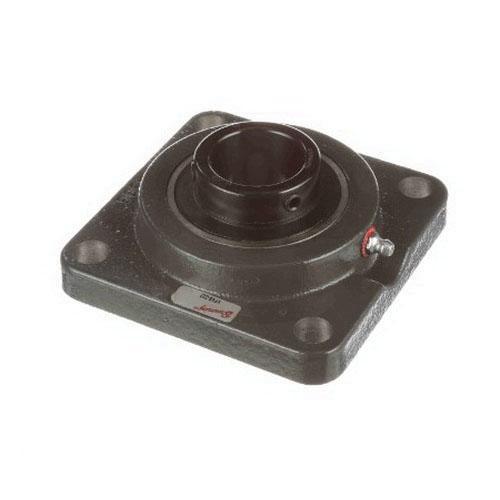

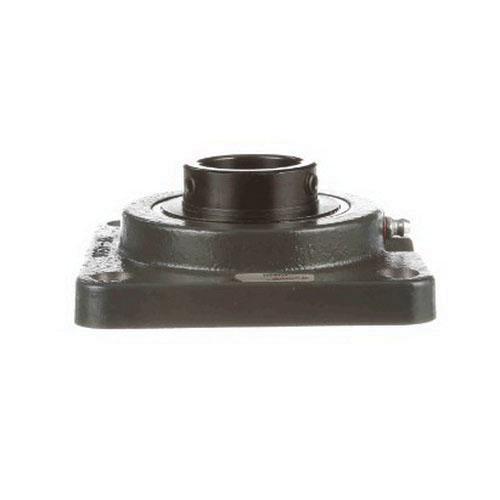

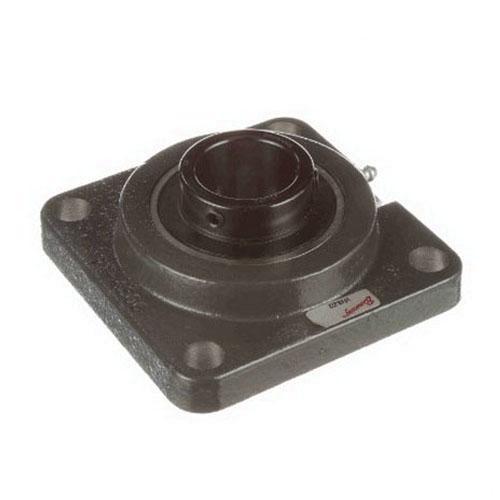

Browning VF4S-222 Flange Ball Bearing, Ball Rolling Element, 1-3/8 in Dia Bore, +/-1.5 deg Tolerance, 4-Bolt Hole

Browning® VF4S 200 Series VF4S-222 Flange Ball Bearing, Ball Rolling Element, 1-3/8 in Dia Bore, +/-1.5 deg Tolerance

Browning® VF4S 200 Series VF4S-222 Flange Ball Bearing, Ball Rolling Element, 1-3/8 in Dia Bore, +/-1.5 deg Tolerance VF4S-222

Browning® Flange Ball Bearing, Series: VF4S 200 Series, Ball Rolling Element Type, 1-3/8 in Bore Diameter, +/-1.5 deg Tolerance, Setscrew Shaft Locking Type, 5782 lb Dynamic Load Capacity, 3493 lb Static Load Capacity, Maximum Speed: 4000 rpm, Steel Bearing Insert Material, Iron Bearing Housing Material, 4 Bolt Holes, 3-5/8 in Bolt Hole Center-to-Center, -20 to 200 deg F, Lithium Complex NLGI 2 Grease Lubrication, 4-5/8 in Overall Width, 1-3/4 in Overall Height

Bearing Housing Material      :      Iron
Bearing Insert Material      :      Steel
Bolt Hole Center-to-Center      :      3-5/8 in
Bore Diameter      :      1-3/8 in
Dynamic Load Capacity      :      5782 lb
Lubrication      :      Lithium Complex NLGI 2 Grease
Maximum Speed      :      4000 rpm
Number of Bolt Holes      :      4
Overall Height      :      1-3/4 in
Overall Width      :      4-5/8 in
Rolling Element Type      :      Ball
Series      :      VF4S 200 Series
Shaft Locking Type      :      Setscrew
Static Load Capacity      :      3493 lb
Temperature Rating      :      -20 to 200 deg F
Tolerance      :      +/-1.5 deg
  • Powder-coat epoxy cast iron housing
  • Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
  • Single lip contact seal and flinger
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_VF4S-222_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_VPE-231_Instruction_Installation_Manual.pdf
