Browning® VPB-216 VPB-216

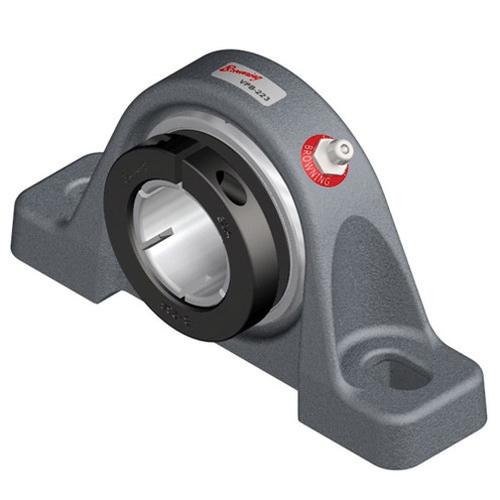

Browning VPB 200 VPB-216 Pillow Block Ball Bearing, 1 in Dia Bore, 2801 lb Dynamic, 1651 lb Static Load

Browning® VPB 200 Series VPB-216 Pillow Block Ball Bearing, 1 in Dia Bore, 2801 lb Dynamic, 1651 lb Static Load

Browning® VPB 200 Series VPB-216 Pillow Block Ball Bearing, 1 in Dia Bore, 2801 lb Dynamic, 1651 lb Static Load VPB-216

Browning® Pillow Block Ball Bearing, Series: VPB 200 Series, 1 in Bore Diameter, 3/8 in Bolt Size, 2801 lb Dynamic, 1651 lb Static Load, Iron Bearing Material, Gray, Painted, -20 to 200 deg F, 5-1/2 in L x 1-13/32 in W x 2-13/16 in H

Bearing Material      :      Iron
Bolt Size      :      3/8 in
Bore Diameter      :      1 in
Color      :      Gray
Dimensions      :      5-1/2 in L x 1-13/32 in W x 2-13/16 in H
Finish      :      Painted
Load Capacity      :      2801 lb Dynamic, 1651 lb Static
Series      :      VPB 200 Series
Temperature Rating      :      -20 to 200 deg F
  • Normal-duty
  • Two-bolt pillow block
  • BOA concentric lock
  • Ball rolling element
  • Semi solid housing base
  • 52100 steel insert material
  • +/- 1.5 deg self-alignment
  • Nylon retainer type
  • Alemite fitting lubrication
  • Maximum 5500 rev/min
  • Lubrication Fitting
  • Round bore type
  • 1-7/16 in base to bore centerline
  • 3-11/16 - 4-9/16 in L bolt center-to-center
  • Two-bolt base mounting
  • Non-expansion bearing (Fixed) Type
  • One-lip contact with flinger
