Browning® VPE-232 VPE-232

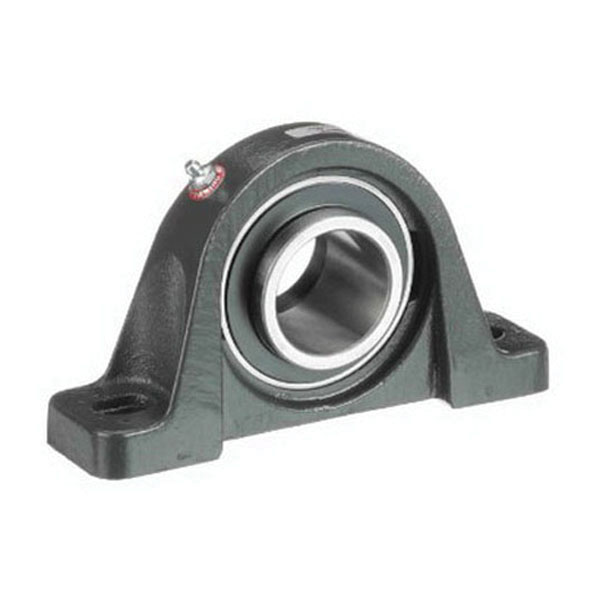

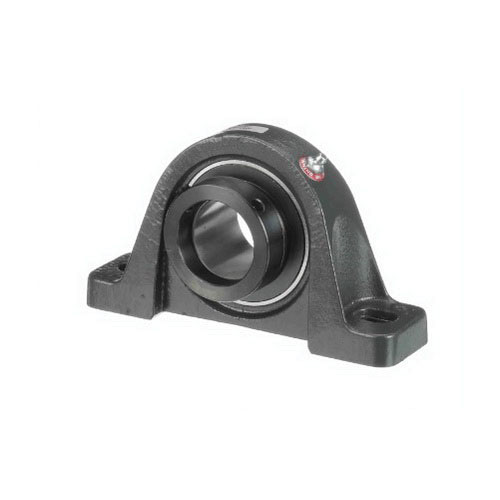

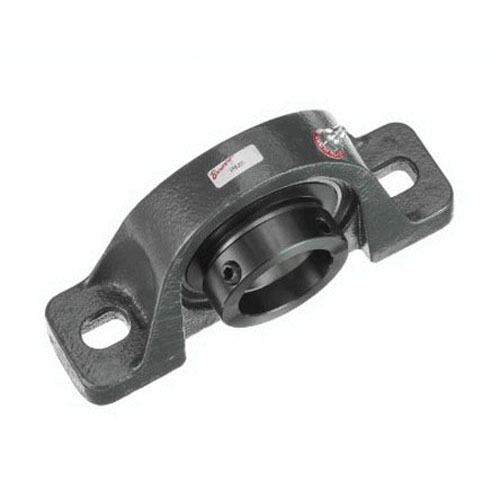

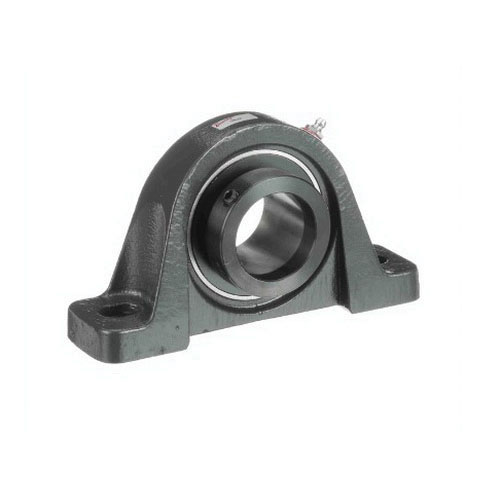

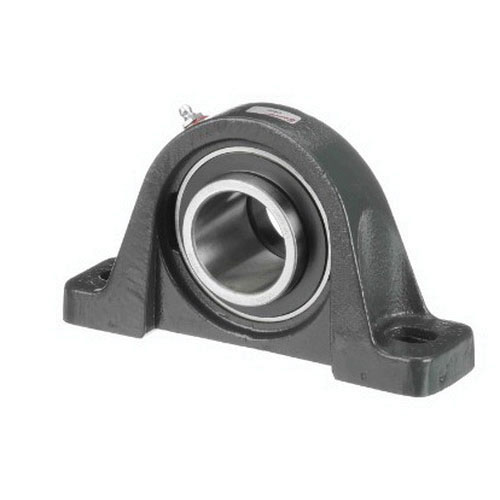

Browning VPE-232 2-Bolt Pillow Block Ball Bearing, 2 in Dia Bore, 6.348 to 7.438 in L Bolt Center-to-Center

Browning® VPE 200 Series VPE-232 2-Bolt Pillow Block Ball Bearing, 2 in Dia Bore, 2-1/2 in Base to Bore Centerline

Browning® VPE 200 Series VPE-232 2-Bolt Pillow Block Ball Bearing, 2 in Dia Bore, 2-1/2 in Base to Bore Centerline VPE-232

Browning® 2-Bolt Pillow Block Ball Bearing, Series: VPE 200 Series, 2 in Bore Diameter, 7/8 in Flange Thickness, 2.813 in Bearing Width, 2.313 in Base Width, 2-13/16 in Housing Width, 6.348 to 7.438 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 5/8 in Bolt Size, 9752 lb Dynamic, 6601 lb Static Load, 2500 rpm Maximum Speed, Seal Closure, Ball Rolling Element, Standard, Contact, Flinger Seal Type, Eccentric Locking Device, Steel Bearing Material, Gray, -20 to 200 deg F, 8.813 in L x 2.812 in W x 4.969 in H

Base Width      :      2.313 in
Base to Bore Centerline      :      2-1/2 in
Bearing Material      :      Steel
Bearing Width      :      2.813 in
Bolt Center-to-Center Length      :      6.348 to 7.438 in
Bolt Size      :      5/8 in
Bore Diameter      :      2 in
Closure Type      :      Seal
Color      :      Gray
Dimensions      :      8.813 in L x 2.812 in W x 4.969 in H
Duty Type      :      Standard
Flange Thickness      :      7/8 in
Housing Width      :      2-13/16 in
Load Capacity      :      9752 lb Dynamic, 6601 lb Static
Locking Device      :      Eccentric
Maximum Speed Rating      :      2500 rpm
Rolling Element      :      Ball
Seal Type      :      Contact, Flinger
Series      :      VPE 200 Series
Temperature Rating      :      -20 to 200 deg F
  • Powder-coat epoxy cast iron housing
  • Eccentric locking designed for locking in direction of rotation
  • Single lip contact seal and flinger
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_VPE-231_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_VPE-231_Instruction_Installation_Manual.pdf
