Browning® VPLE-235 VPLE-235

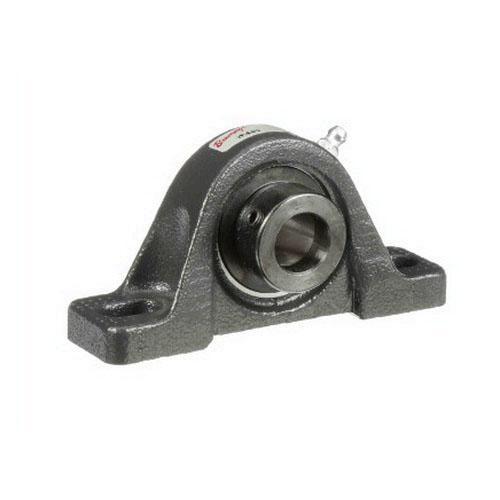

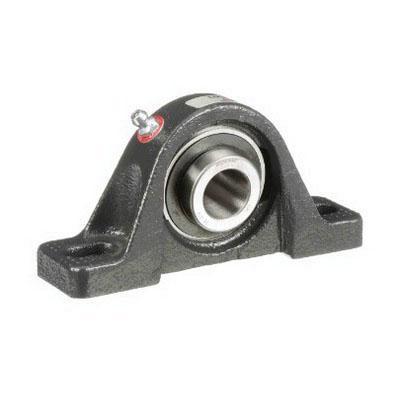

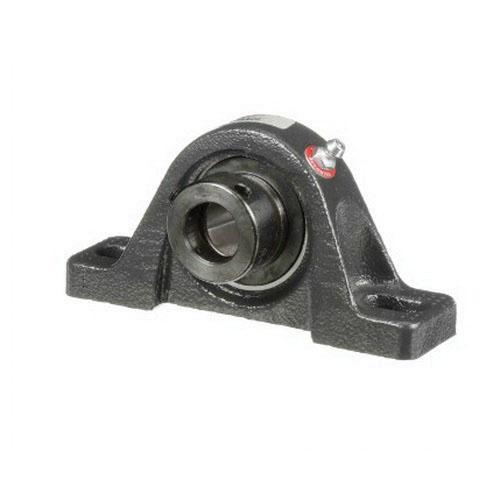

Browning VPLE-235 2-Bolt Low Base Pillow Block Ball Bearing, 2-3/16 in Dia Bore, 2.438 in Base to Bore Centerline

Browning® VPLE 200 Series VPLE-235 2-Bolt Low Base Pillow Block Ball Bearing, 2-3/16 in Dia Bore

Browning® VPLE 200 Series VPLE-235 2-Bolt Low Base Pillow Block Ball Bearing, 2-3/16 in Dia Bore VPLE-235

Browning® 2-Bolt Low Base Pillow Block Ball Bearing, Series: VPLE 200 Series, 2-3/16 in Bore Diameter, 13/16 in Flange Thickness, 2.813 in Bearing Width, 2.313 in Base Width, 2-13/16 in Housing Width, 6-9/16 to 7-5/16 in Bolt Center-to-Center Length, 2.438 in Base to Bore Centerline, 5/8 in Bolt Size, 9752 lb Dynamic, 6601 lb Static Load, 2500 rpm Maximum Speed, Seal Closure, Ball Rolling Element, Standard, Contact, Flinger Seal Type, Eccentric Locking Device, Steel Bearing Material, Gray, -20 to 200 deg F, 8.813 in L x 2.812 in W x 4.906 in H

Base Width      :      2.313 in
Base to Bore Centerline      :      2.438 in
Bearing Material      :      Steel
Bearing Width      :      2.813 in
Bolt Center-to-Center Length      :      6-9/16 to 7-5/16 in
Bolt Size      :      5/8 in
Bore Diameter      :      2-3/16 in
Closure Type      :      Seal
Color      :      Gray
Dimensions      :      8.813 in L x 2.812 in W x 4.906 in H
Duty Type      :      Standard
Flange Thickness      :      13/16 in
Housing Width      :      2-13/16 in
Load Capacity      :      9752 lb Dynamic, 6601 lb Static
Locking Device      :      Eccentric
Maximum Speed Rating      :      2500 rpm
Rolling Element      :      Ball
Seal Type      :      Contact, Flinger
Series      :      VPLE 200 Series
Temperature Rating      :      -20 to 200 deg F
  • Powder-coat epoxy cast iron housing
  • Eccentric locking designed for locking in direction of rotation
  • Single lip contact seal and flinger
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_VPLE-212_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_VPE-231_Instruction_Installation_Manual.pdf
