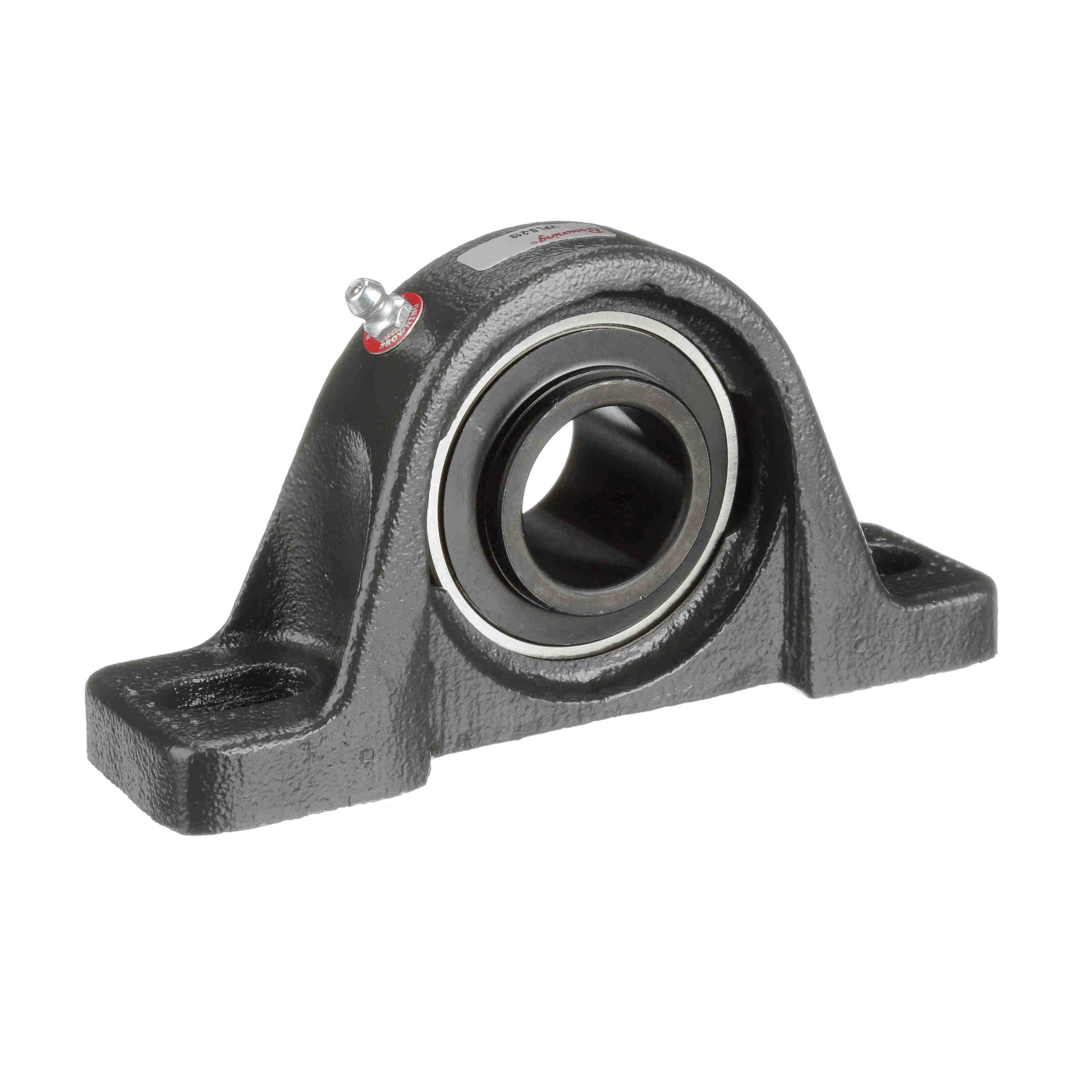

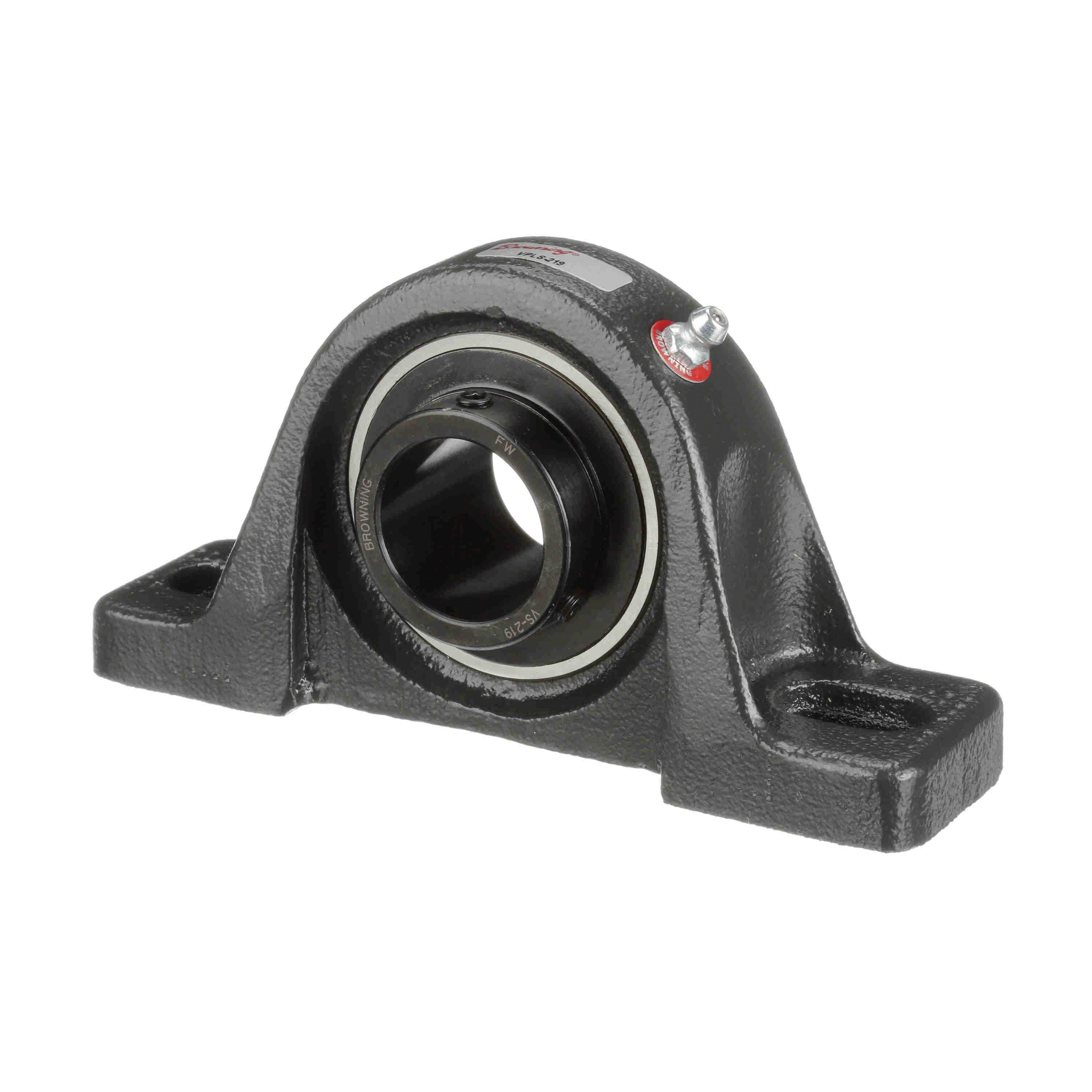

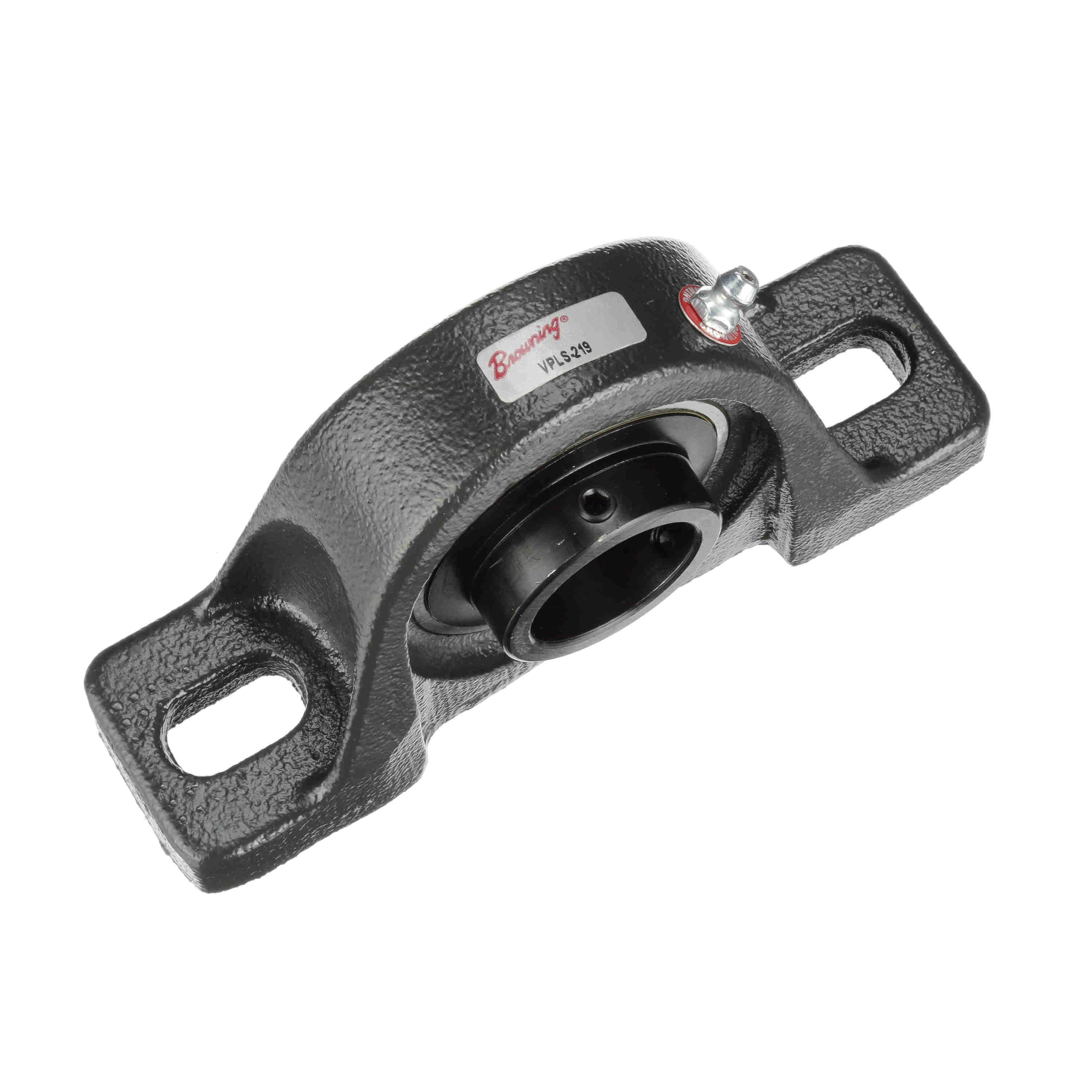

Browning VPLS-219 Pillow Block Ball Bearing, 1-3/16 in Dia Bore, 4-3/16 to 5-1/16 in L Bolt Center-to-Center
Browning® VPLS 200 Series VPLS-219 Pillow Block Ball Bearing, 1-3/16 in Dia Bore, 1-9/16 in Base to Bore Centerline
Browning® VPLS 200 Series VPLS-219 Pillow Block Ball Bearing, 1-3/16 in Dia Bore, 1-9/16 in Base to Bore Centerline VPLS-219- Brand Name: Browning®
- Part Number: VPLS-219
- UPC: 662289524853
- Check Stock
Add To Favorites ListBrowning® Pillow Block Ball Bearing, Series: VPLS 200 Series, 1-3/16 in Bore Diameter, 1-3/4 in Base Width, 1-3/4 in Housing Width, 4-3/16 to 5-1/16 in Bolt Center-to-Center Length, 1-9/16 in Base to Bore Centerline, 1/2 in Bolt Size, 4381 lb Dynamic, 2567 lb Static Load, 4500 rpm Maximum Speed, Straight Bore, Ball Rolling Element, Standard, Single Lip Seal Type, Set Screw Locking Device, 2-Bolt Base Mounting, Steel Bearing Material, Iron Cage Material, Gray, Black Oxide/Epoxy Powder-Coated, -20 to 200 deg F, 3.156 in H x 6.188 in L
| Base Width | : | 1-3/4 in |
| Base to Bore Centerline | : | 1-9/16 in |
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 4-3/16 to 5-1/16 in |
| Bolt Size | : | 1/2 in |
| Bore Diameter | : | 1-3/16 in |
| Bore Type | : | Straight |
| Cage Material | : | Iron |
| Color | : | Gray |
| Dimensions | : | 3.156 in H x 6.188 in L |
| Duty Type | : | Standard |
| Finish | : | Black Oxide/Epoxy Powder-Coated |
| Housing Width | : | 1-3/4 in |
| Load Capacity | : | 4381 lb Dynamic, 2567 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed Rating | : | 4500 rpm |
| Mounting Type | : | 2-Bolt Base |
| Rolling Element | : | Ball |
| Seal Type | : | Single Lip |
| Series | : | VPLS 200 Series |
| Temperature Rating | : | -20 to 200 deg F |
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
Instruction/Installation Manual
