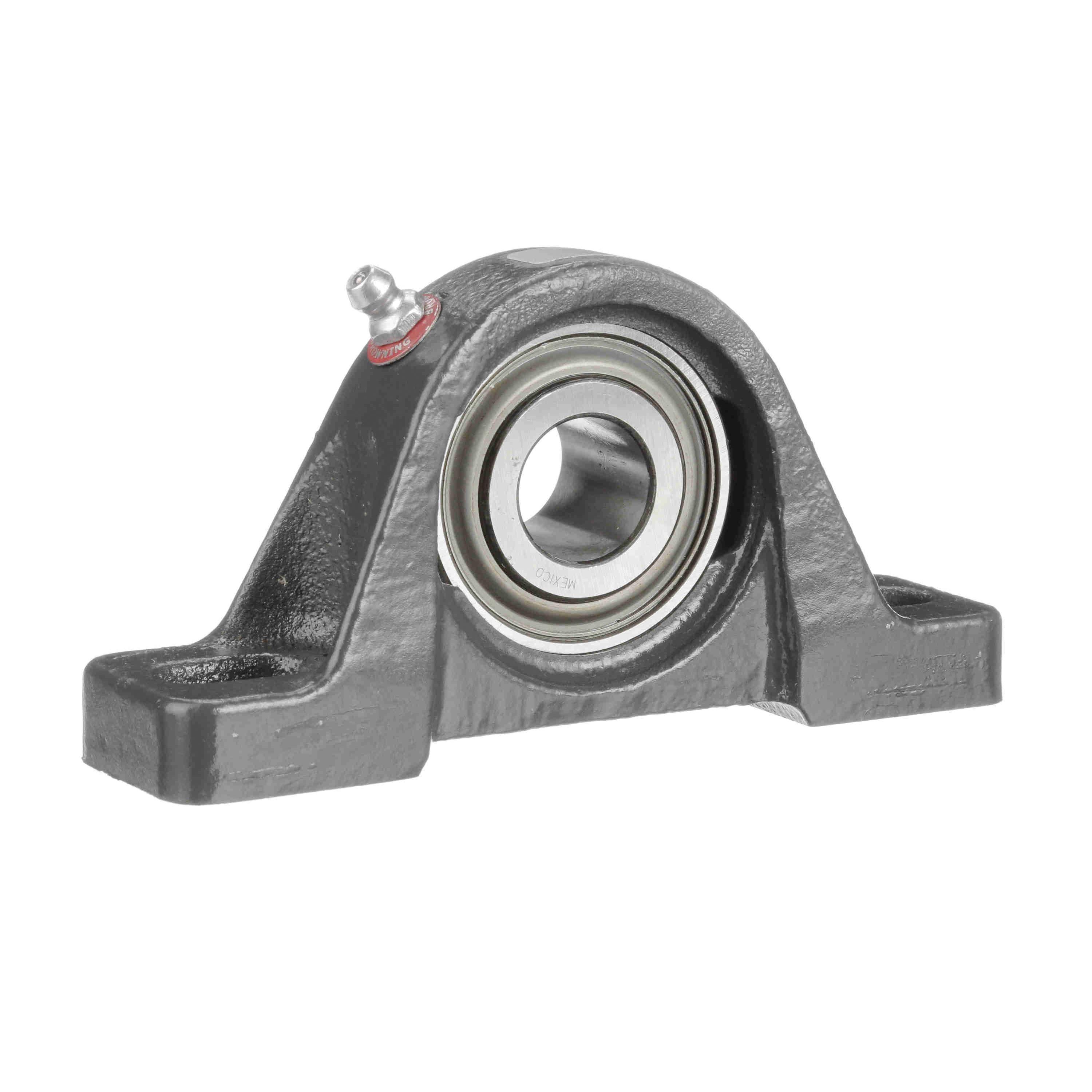

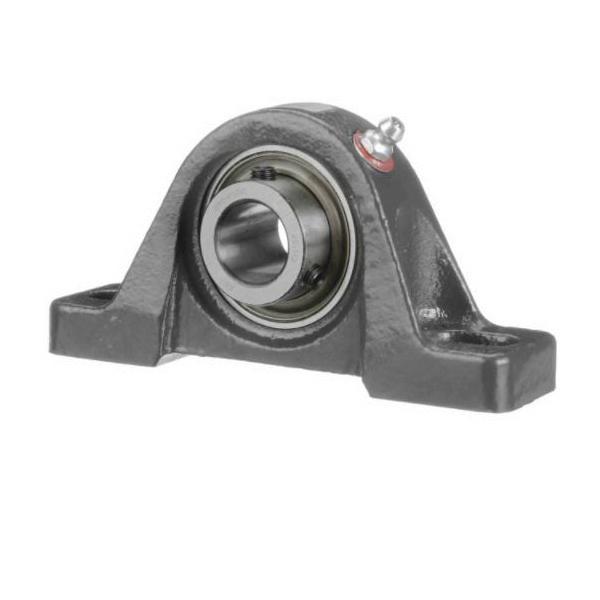

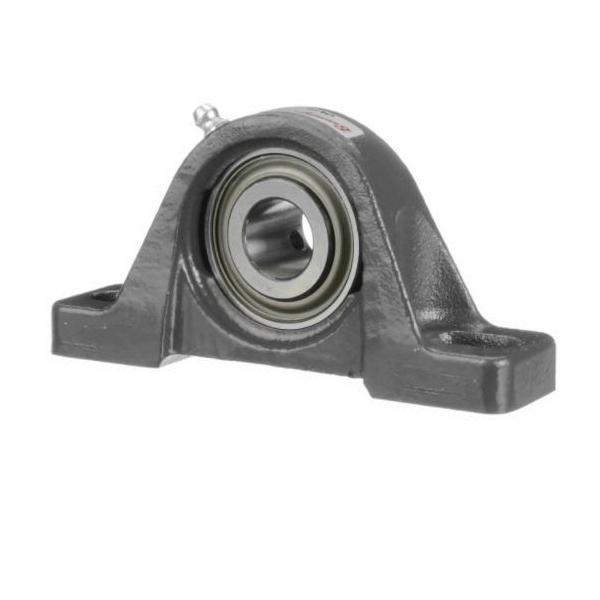

Browning VPS-112 Pillow Block Ball Bearing, 3/4 in Dia Bore, 3-15/32 to 4-9/32 in L Bolt Center-to-Center
Browning® VPS 100 Series VPS-112 Pillow Block Ball Bearing, 3/4 in Dia Bore, 1-7/16 in Base to Bore Centerline
Browning® VPS 100 Series VPS-112 Pillow Block Ball Bearing, 3/4 in Dia Bore, 1-7/16 in Base to Bore Centerline VPS-112- Brand Name: Browning®
- Part Number: VPS-112
- UPC: 662289525201
- Check Stock
Add To Favorites ListBrowning® Pillow Block Ball Bearing, Series: VPS 100 Series, 3/4 in Bore Diameter, 1-11/32 in Base Width, 1-11/32 in Housing Width, 3-15/32 to 4-9/32 in Bolt Center-to-Center Length, 1-7/16 in Base to Bore Centerline, 3/8 in Bolt Size, 2611 lb Dynamic, 1444 lb Static Load, 4000 rpm Maximum Speed, Straight Bore, Ball Rolling Element, Intermediate, Single Lip Seal Type, Set Screw Locking Device, 2-Bolt Base Mounting, Steel Bearing Material, Iron Cage Material, Gray, Epoxy Powder-Coated, -20 to 200 deg F, 2.531 in H x 5 in L
| Base Width | : | 1-11/32 in |
| Base to Bore Centerline | : | 1-7/16 in |
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 3-15/32 to 4-9/32 in |
| Bolt Size | : | 3/8 in |
| Bore Diameter | : | 3/4 in |
| Bore Type | : | Straight |
| Cage Material | : | Iron |
| Color | : | Gray |
| Dimensions | : | 2.531 in H x 5 in L |
| Duty Type | : | Intermediate |
| Finish | : | Epoxy Powder-Coated |
| Housing Width | : | 1-11/32 in |
| Load Capacity | : | 2611 lb Dynamic, 1444 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed Rating | : | 4000 rpm |
| Mounting Type | : | 2-Bolt Base |
| Rolling Element | : | Ball |
| Seal Type | : | Single Lip |
| Series | : | VPS 100 Series |
| Temperature Rating | : | -20 to 200 deg F |
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
