Browning® VPS-220 VPS-220

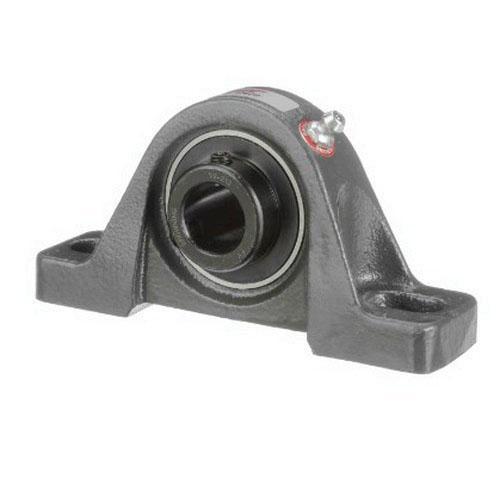

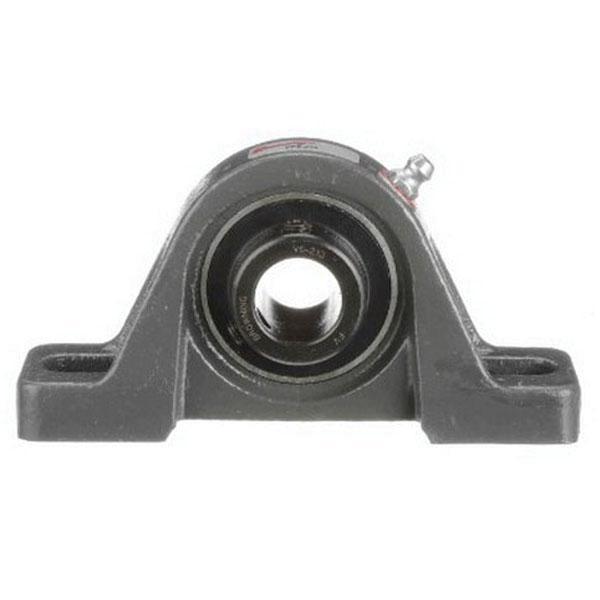

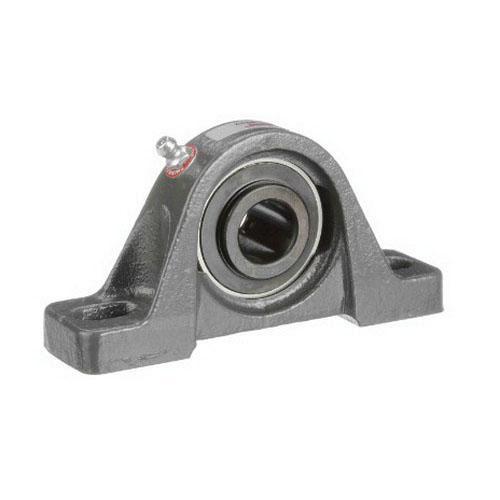

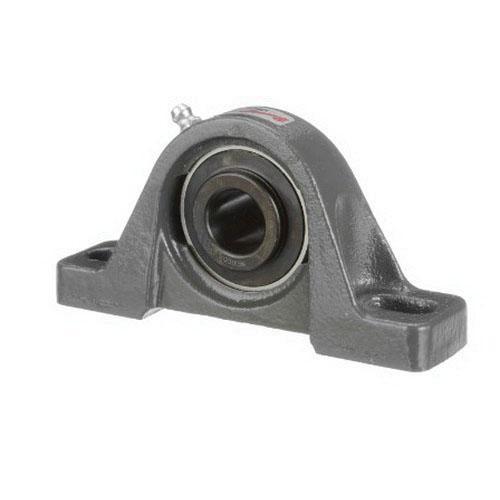

Browning VPS-220 2-Bolt Pillow Block Ball Bearing, 1-1/4 in Dia Bore, 4.563 to 5.438 in L Bolt Center-to-Center

Browning® VPS 200 Series VPS-220 2-Bolt Pillow Block Ball Bearing, 1-1/4 in Dia Bore, 1-7/8 in Base to Bore Centerline

Browning® VPS 200 Series VPS-220 2-Bolt Pillow Block Ball Bearing, 1-1/4 in Dia Bore, 1-7/8 in Base to Bore Centerline VPS-220

Browning® 2-Bolt Pillow Block Ball Bearing, Series: VPS 200 Series, 1-1/4 in Bore Diameter, 0.719 in Flange Thickness, 1.688 in Bearing Width, 1-3/4 in Base Width, 1-11/16 in Housing Width, 4.563 to 5.438 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 1/2 in Bolt Size, 5782 lb Dynamic, 3493 lb Static Load, 4000 rpm Maximum Speed, Seal Closure, Ball Rolling Element, Standard, Contact, Flinger Seal Type, Set Screw Locking Device, Steel Bearing Material, Gray, -20 to 200 deg F, 6.75 in L x 1.687 in W x 3.688 in H

Base Width      :      1-3/4 in
Base to Bore Centerline      :      1-7/8 in
Bearing Material      :      Steel
Bearing Width      :      1.688 in
Bolt Center-to-Center Length      :      4.563 to 5.438 in
Bolt Size      :      1/2 in
Bore Diameter      :      1-1/4 in
Closure Type      :      Seal
Color      :      Gray
Dimensions      :      6.75 in L x 1.687 in W x 3.688 in H
Duty Type      :      Standard
Flange Thickness      :      0.719 in
Housing Width      :      1-11/16 in
Load Capacity      :      5782 lb Dynamic, 3493 lb Static
Locking Device      :      Set Screw
Maximum Speed Rating      :      4000 rpm
Rolling Element      :      Ball
Seal Type      :      Contact, Flinger
Series      :      VPS 200 Series
Temperature Rating      :      -20 to 200 deg F
  • Powder-coat epoxy cast iron housing
  • Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
  • Single lip contact seal and flinger
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_VPS-212_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_VPE-231_Instruction_Installation_Manual.pdf
