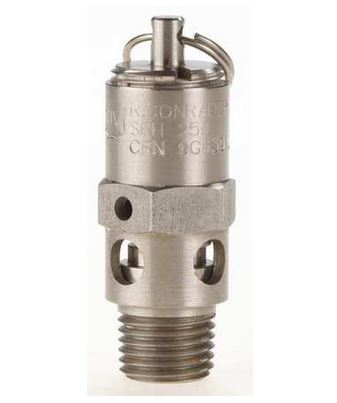

Conrader SRH250-1/4-SS-205 Hard Seat Stainless Steel Safety Valve

CONRADER SRH250-1/4-SS-205 Pressure Relief Valve, 1/4 in Nominal, NPT Connection, 205 psi Pressure, -65 to 400 deg F

CONRADER SRH250-1/4-SS-205 Pressure Relief Valve, 1/4 in Nominal, NPT Connection, 205 psi Pressure, -65 to 400 deg F SRH250-1/4-SS-205

CONRADER safety valves are designed to protect unfired pressure vessels and systems from over pressure in compressed air and gas applications. CONRADER offers two types of safety valves. The hard seat safety valve (SRH Series) has a metal-to-metal seal. All CONRADER safety valves are designed, manufactured and certified under our ISO 9001 quality control system to meet the requirements of ASME boiler and pressure vessel code section VIII division 1 and are registered for use in Canada (CRN).
CONRADER Pressure Relief Valve, Series: SRH Series, 1/4 in Nominal, NPT Connection, 205 psi, Air/Gas Media, 0.67 in Inlet to Outlet Length, Stainless Steel Body, Hard Seat, Brass Seat, 440 Stainless Steel Seal, 302 Stainless Steel Trim, -65 to 400 deg F, 1.98 in L

Body Material      :      Stainless Steel
Connection Type      :      NPT
Dimensions      :      1.98 in L
Inlet to Outlet Length      :      0.67 in
Media      :      Air/Gas
Nominal Size      :      1/4 in
Pressure Rating      :      205 psi
Seal Material      :      440 Stainless Steel
Seat Material      :      Brass
Seat Type      :      Hard
Series      :      SRH Series
Temperature Rating      :      -65 to 400 deg F
Trim Material      :      302 Stainless Steel
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/CONRADER_SRH250_1_8_25_Specification_Sheet.pdf
