Cutler-Hammer 258197 258197

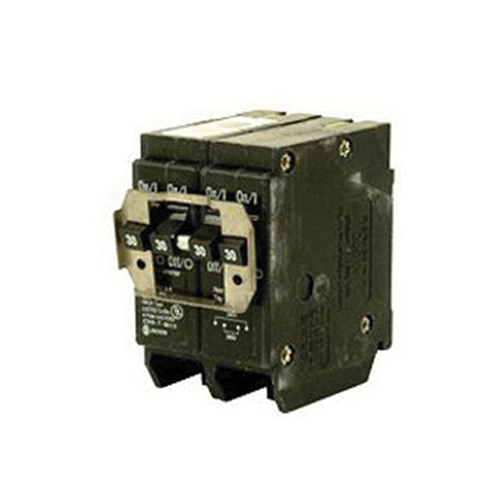

Cutler-Hammer 258197 Circuit Breaker

Cutler-Hammer 258197 Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 4-Pole, Thermal Magnetic Trip

Cutler-Hammer 258197 Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 4-Pole, Thermal Magnetic Trip 258197

EATON BR thermal magnetic circuit breaker, Type BQ 1 in CTL plug-on circuit breaker, includes rejection tab feature, two two-pole 20 A, 10 kAIC, four-pole, 120/240 V, BQ, independent, #14 to 4 AWG Cu/Al, Q28, BQ, Type BR load centers.

Amperage Rating      :      20 A
Frame Type      :      Type BQ
Height      :      3 in
Interrupt Rating      :      10 kA
Length      :      3 in
Mounting Type      :      Plug-In
Number of Poles      :      4
Trip Type      :      Thermal Magnetic
Voltage Rating      :      120/240 VAC
Width      :      2 in
Wire Size      :      14 to 4 AWG
  • CTL Quadplex breaker with rejection tab, two-pole outer independent trip and two-pole center independent trip, requires two 1 in spaces, wire size range No. 14-4, 120/240 VAC, 0.9 lb weight, 3 x 2 x 3 in, UL listed, meets UL 489, listing for HACR applications, meets Federal Specification classification W-C375, 120/240 V, 10000 AIC interrupting capacity
