Cutler-Hammer 258387 258387

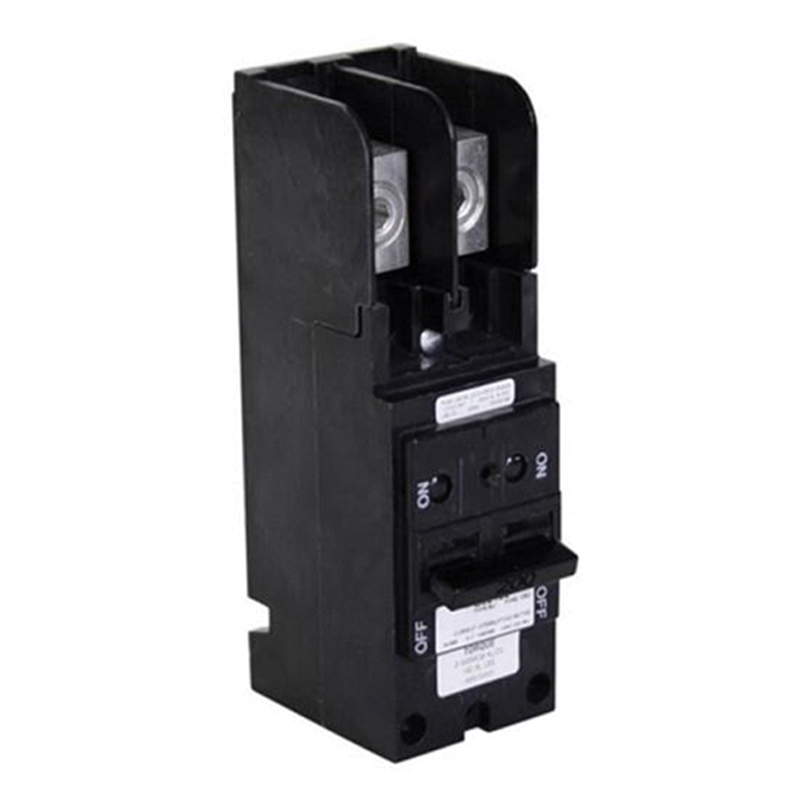

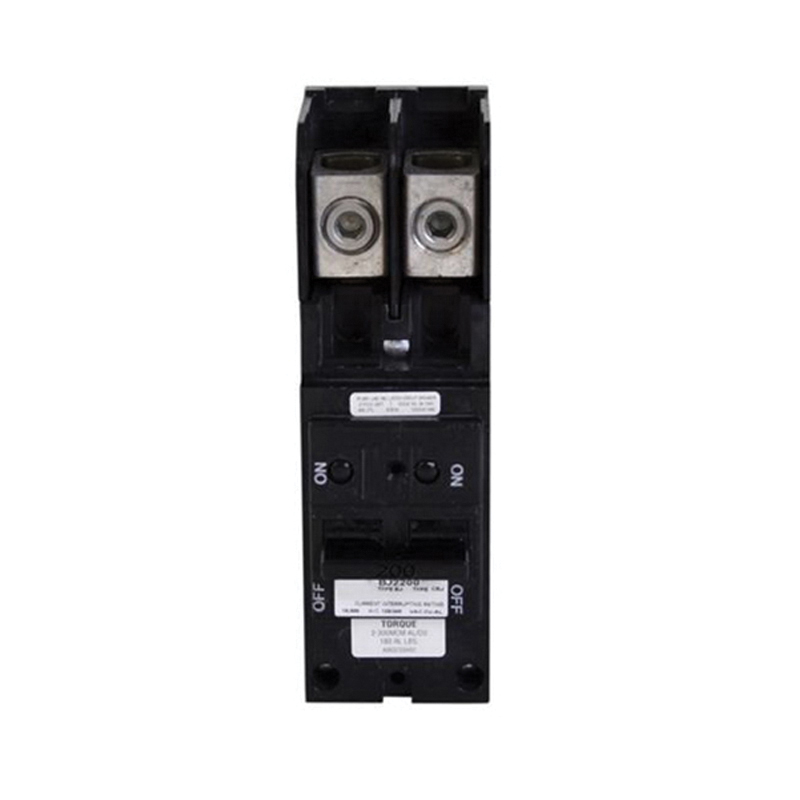

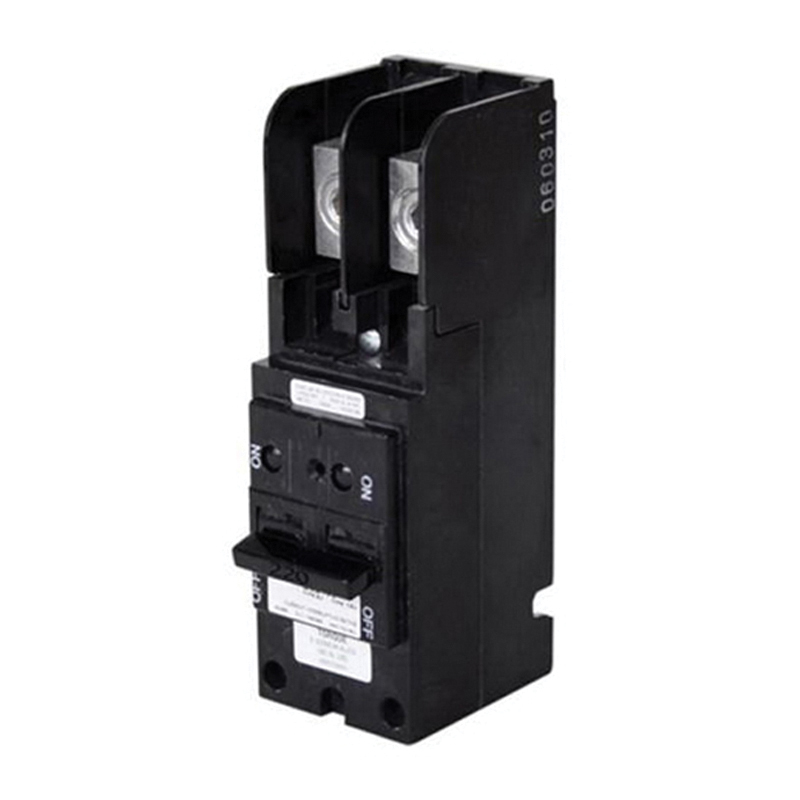

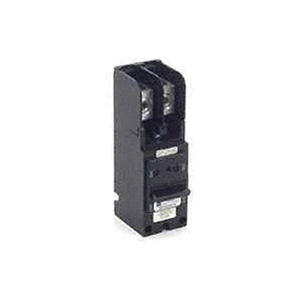

Cutler-Hammer 258387 Circuit Breaker

Cutler-Hammer 258387 Circuit Breaker, 120/240 VAC, 200 A, 10 kA Interrupt, 2-Pole, Common Trip

Cutler-Hammer 258387 Circuit Breaker, 120/240 VAC, 200 A, 10 kA Interrupt, 2-Pole, Common Trip 258387

EATON Type BJ 1 in plug-on main breakers,1 in plug-on main breaker, 200 A, 10 kAIC, two-pole, 120/240 V, common, plug-on, #2 AWG to 300 kcmil Cu/Al, BJ.

Amperage Rating      :      200 A
Frame Type      :      Type BJ
Height      :      7.22 in
Interrupt Rating      :      10 kA
Length      :      7.42 in
Mounting Type      :      Plug-In
Number of Poles      :      2
Trip Type      :      Common
Voltage Rating      :      120/240 VAC
Width      :      12-1/2 in
Wire Size      :      2 AWG to 300 kcmil Aluminum/Copper
  • For use in single and 3 ph Type BR load centers 150 A and up, requires two 1 in pole spaces on left side and two 1 in pole spaces on right side, no BJHDS hold down kit, necessary for using as a main or back feed device, sold separately, #2 to 300 kcmil wire range, 120/240 VAC, 10000 AIC
