Cutler-Hammer AN16BN0AC AN16BN0AC

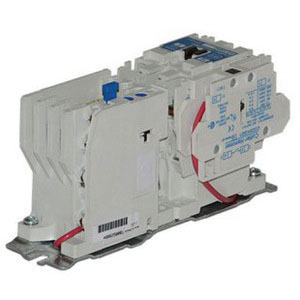

Cutler-Hammer AN16BN0AC Full Voltage Control Starter

Cutler-Hammer Freedom Series AN16BN0AC Full Voltage Control Starter, 110/120 V, 18 A, 5 hp, 3-Pole, Open Enclosure

Cutler-Hammer Freedom Series AN16BN0AC Full Voltage Control Starter, 110/120 V, 18 A, 5 hp, 3-Pole, Open Enclosure AN16BN0AC

Cutler-Hammer Full Voltage Control Starter, Series: Freedom Series, 110/120 V, 18 A, HP Rating: 5 hp, 50/60 Hz, 3 ph, 3 Pole, Automatic, Manual Reset, Open, NEMA 0, Screws Surface Mount, 4.61 in L x 4.38 in W x 3.31 in H, Additional Information: Trip Class 20

Additional Information      :      Trip Class 20
Amperage Rating      :      18 A
Dimensions      :      4.61 in L x 4.38 in W x 3.31 in H
Enclosure Type      :      Open
Frequency Rating      :      50/60 Hz
HP Rating      :      5 hp
Mounting Type      :      Screws Surface
NEMA Rating      :      NEMA 0
Number of Poles      :      3
Phase      :      3 ph
Reset Type      :      Automatic, Manual
Series      :      Freedom Series
Voltage Rating      :      110/120 V
  • Manual or automatic reset function, trip indication
  • Manual or automatic reset function, trip indication
  • Ambient temperature compensated for the case and tubing
  • Interchangeable heater packs, adjustable plus or minus 24%
  • Phase loss sensitive
  • Overload trip indication
  • Trip class 10
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_AN16BN0AC_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_AN16BN0AC_Specification_Sheet.pdf
