Cutler-Hammer AN16GN0BB AN16GN0BB

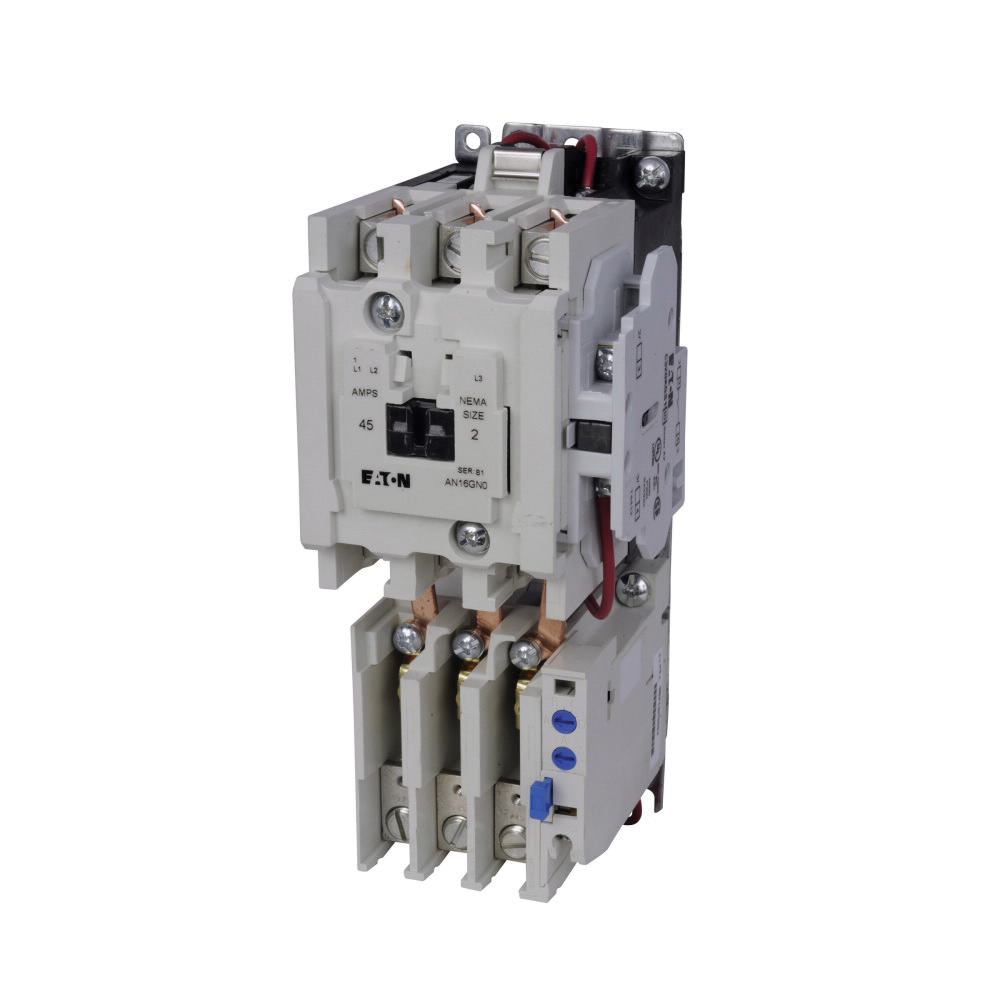

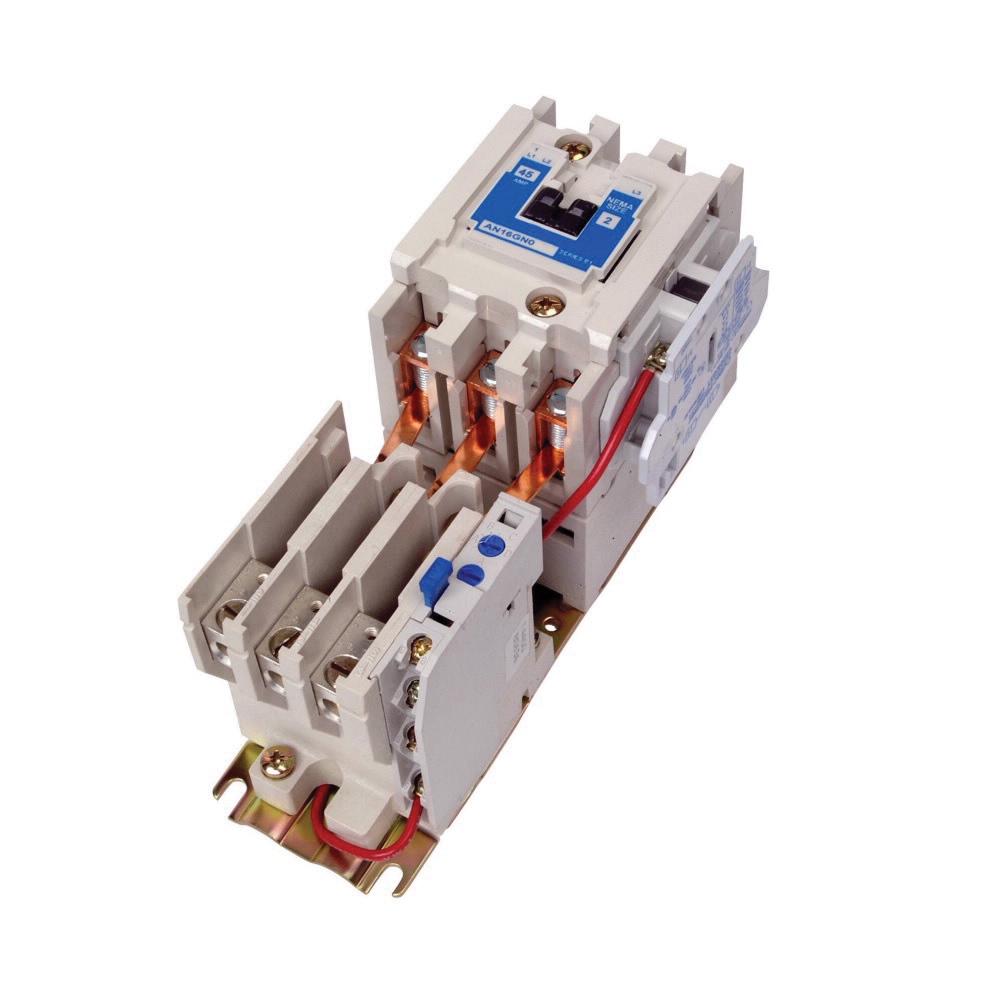

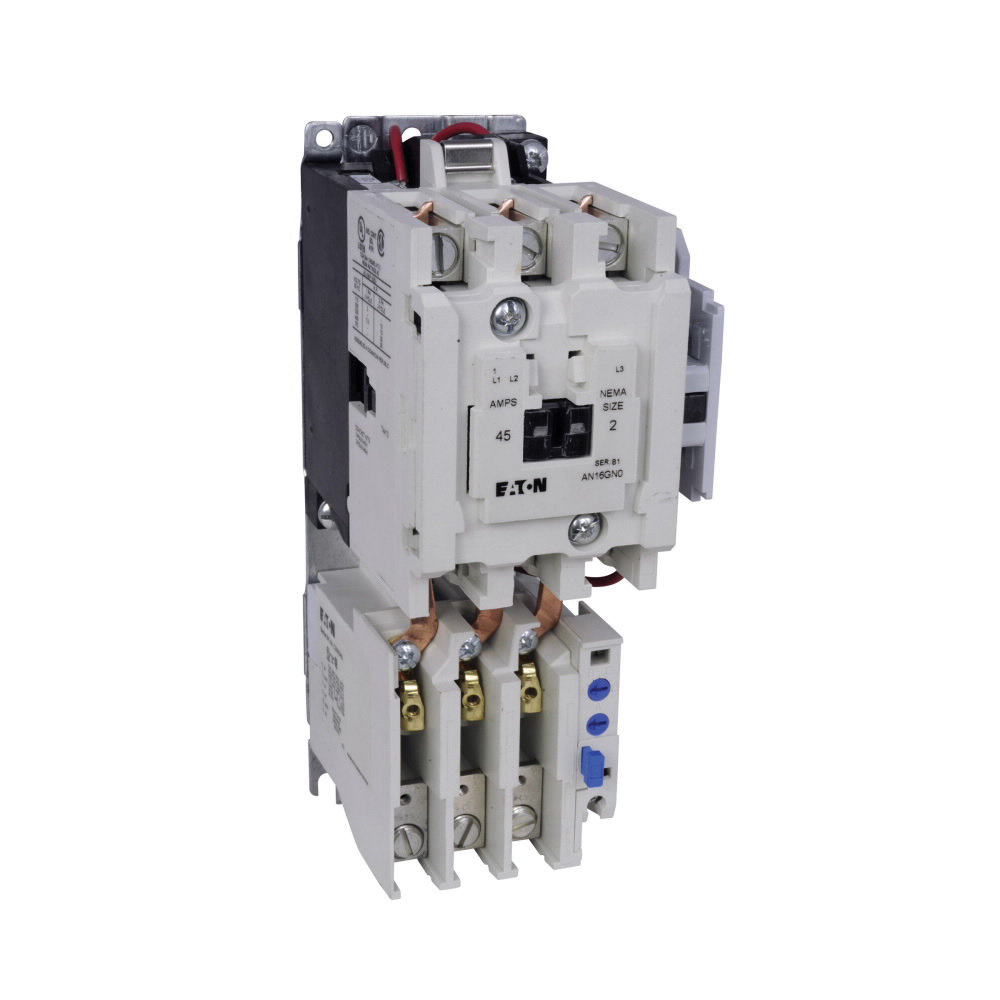

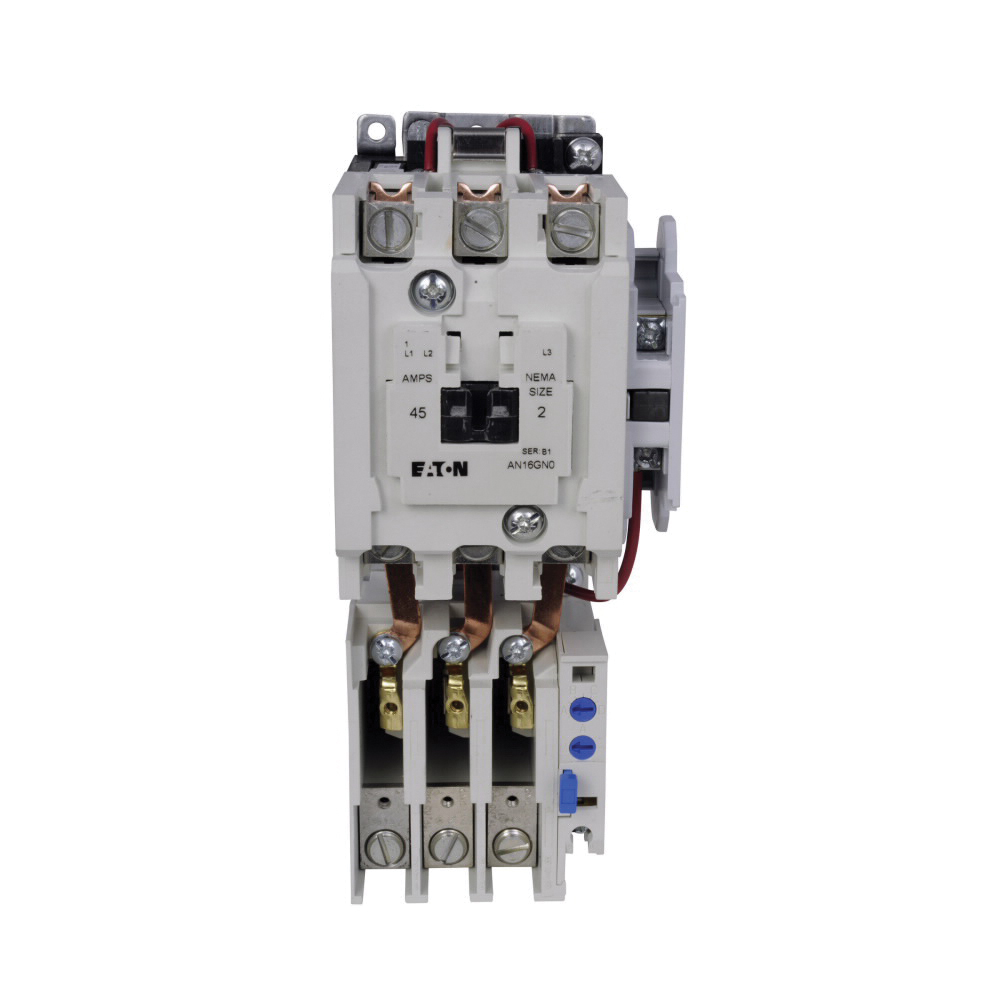

Cutler-Hammer AN16GN0BB NEMA Motor Control Starter

Cutler-Hammer Freedom Series AN16GN0BB NEMA Motor Control Starter, 600 V, 45 A, 25 hp, 3 -Pole

Cutler-Hammer Freedom Series AN16GN0BB NEMA Motor Control Starter, 600 V, 45 A, 25 hp, 3 -Pole AN16GN0BB

Cutler-Hammer NEMA Motor Control Starter, Series: Freedom Series, 600 V, 45 A, 25 hp, 50/60 Hz, 1 ph, 3 ph Phase, 3 Poles, NEMA Rating: NEMA 2, Horizontal Mounting, 11 in L x 7 in W x 6 in H

Amperage Rating      :      45 A
Dimensions      :      11 in L x 7 in W x 6 in H
Frequency Rating      :      50/60 Hz
HP Rating      :      25 hp
Mounting Type      :      Horizontal
NEMA Rating      :      NEMA 2
Number of Poles      :      3
Phase      :      1 ph, 3 ph
Series      :      Freedom Series
Voltage Rating      :      600 V
  • 3 hp at 115 V, 7-1/2 hp at 230 V, 10 hp at 208 V, 15 hp at 240 V, 25 hp at 480/600 V
  • Starter with C306 bi-metal OLR
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_AN16AN0BC_Catalog.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_AN16GN0BB_Line_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_AN16GN0BB_Specification_Sheet.pdf
  • pdfWarranty Information https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_AN16GN0BB_Warranty.pdf
