Cutler-Hammer AN19GN0A5E045 AN19GN0A5E045

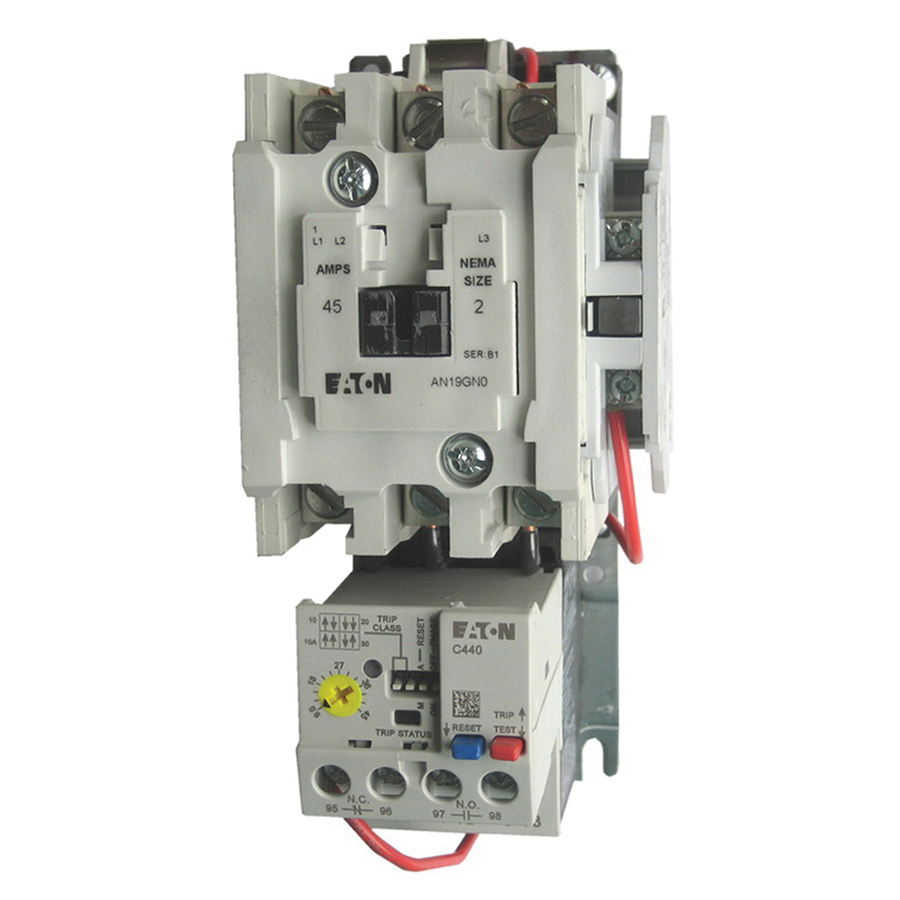

Cutler-Hammer AN19GN0A5E045 Starter With C440 Electronic Overload Relay

Cutler-Hammer Freedom Series AN19GN0A5E045 Starter With C440 Electronic Overload Relay, 110/120 VAC, 45 A, 25 hp

Cutler-Hammer Freedom Series AN19GN0A5E045 Starter With C440 Electronic Overload Relay, 110/120 VAC, 45 A, 25 hp AN19GN0A5E045

Cutler-Hammer Starter, Series: Freedom Series, 110/120 VAC, 45 A, HP Rating: 25 hp, 50/60 Hz, 3 ph, 3 Pole, Open, 1NO Auxiliary Contacts, NEMA 2, Surface Mount, 7.1 in H x 2.6 in W x 4.98 in D

Amperage Rating      :      45 A
Auxiliary Contacts      :      1NO
Dimensions      :      7.1 in H x 2.6 in W x 4.98 in D
Enclosure Type      :      Open
Frequency Rating      :      50/60 Hz
HP Rating      :      25 hp
Mounting Type      :      Surface
NEMA Rating      :      NEMA 2
Number of Poles      :      3
Phase      :      3 ph
Series      :      Freedom Series
Voltage Rating      :      110/120 VAC
  • Standard feature set SEL reset, SEL class (10A, 10, 20, 30)
  • 9 - 45 A C440 full-load for NEMA size 2
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_AN19GN0A5E045_Catalog.pdf
