Cutler-Hammer BD3030 BD3030

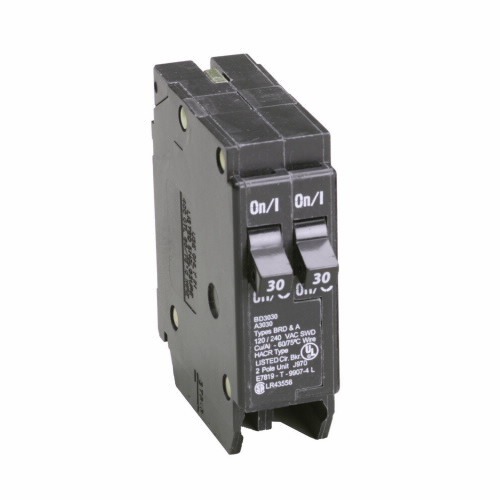

Cutler-Hammer BD3030 BD Duplex Thermal Magnetic Molded Case Circuit Breaker

Cutler-Hammer BD3030 BD Duplex Thermal Magnetic Molded Case Circuit Breaker, 120 VAC, 30 A, 10 kA Interrupt, 1-Pole

Cutler-Hammer BD3030 BD Duplex Thermal Magnetic Molded Case Circuit Breaker, 120 VAC, 30 A, 10 kA Interrupt, 1-Pole BD3030

Cutler-Hammer BD Duplex Thermal Magnetic Molded Case Circuit Breaker, 30 A, 120 VAC, 50/60 Hz, 10 kA Interrupt Rating, 1 Poles, 1 ph Phase, Feed-Thru Connection, Independent Trip, Line and Load Lug Terminal, Handle Actuator, 14 to 4 AWG Wire, Plug-On Mounting, 60 to 75 deg C, 1 in Width, 2.9 in Length, 2-1/2 in Height

Actuator Type      :      Handle
Amperage Rating      :      30 A
Connection Type      :      Feed-Thru
Frequency Rating      :      50/60 Hz
Height      :      2-1/2 in
Interrupt Rating      :      10 kA
Length      :      2.9 in
Mounting Type      :      Plug-On
Number of Poles      :      1
Phase      :      1 ph
Temperature Rating      :      60 to 75 deg C
Terminal Type      :      Line and Load Lug
Trip Type      :      Independent
Voltage Rating      :      120 VAC
Width      :      1 in
Wire Size      :      14 to 4 AWG
  • Type BD 1 in CTL plug-on breaker
  • Includes rejection tab feature
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_HFD3080_Catalog.pdf
