Cutler-Hammer BQ2402120 BQ2402120

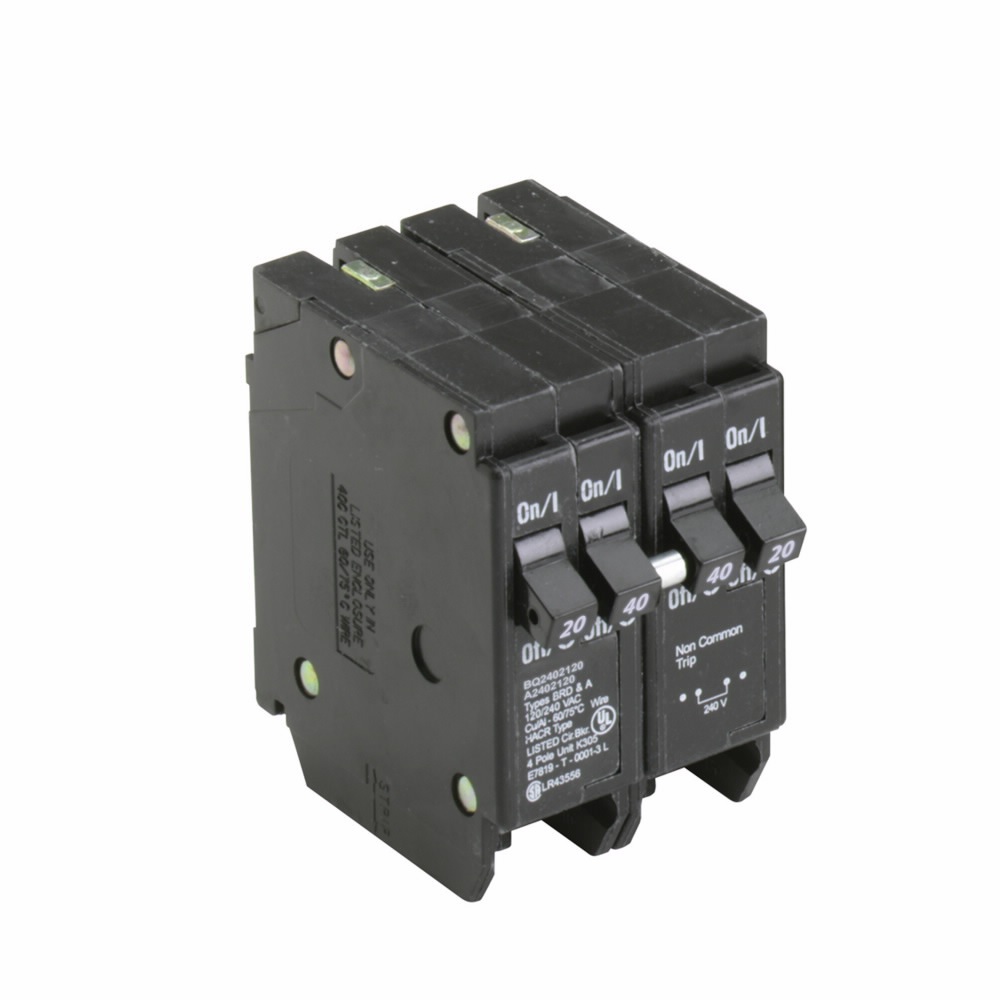

Cutler-Hammer BQ2402120 Circuit Breaker

Cutler-Hammer BQ2402120 Circuit Breaker, 120/240 VAC, 20/40 A, 10 kA Interrupt, 4-Pole, Independent Trip

Cutler-Hammer BQ2402120 Circuit Breaker, 120/240 VAC, 20/40 A, 10 kA Interrupt, 4-Pole, Independent Trip BQ2402120

Cutler-Hammer Circuit Breaker, 20/40 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 4 Poles, 1 ph Phase, Feed-Thru Connection, Independent Trip, Line and Load Lug Terminal, Handle Actuator, 14 to 4 AWG Wire, Plug-On Mounting, 60 to 75 deg C, 2 in Width, 3 in Length, 3 in Height

Actuator Type      :      Handle
Amperage Rating      :      20/40 A
Connection Type      :      Feed-Thru
Frequency Rating      :      50/60 Hz
Height      :      3 in
Interrupt Rating      :      10 kA
Length      :      3 in
Mounting Type      :      Plug-On
Number of Poles      :      4
Phase      :      1 ph
Temperature Rating      :      60 to 75 deg C
Terminal Type      :      Line and Load Lug
Trip Type      :      Independent
Voltage Rating      :      120/240 VAC
Width      :      2 in
Wire Size      :      14 to 4 AWG
  • Type BQ 1 in CTL plug-on breaker
  • Includes rejection tab feature
