Cutler-Hammer BRHH2100 BRHH2100

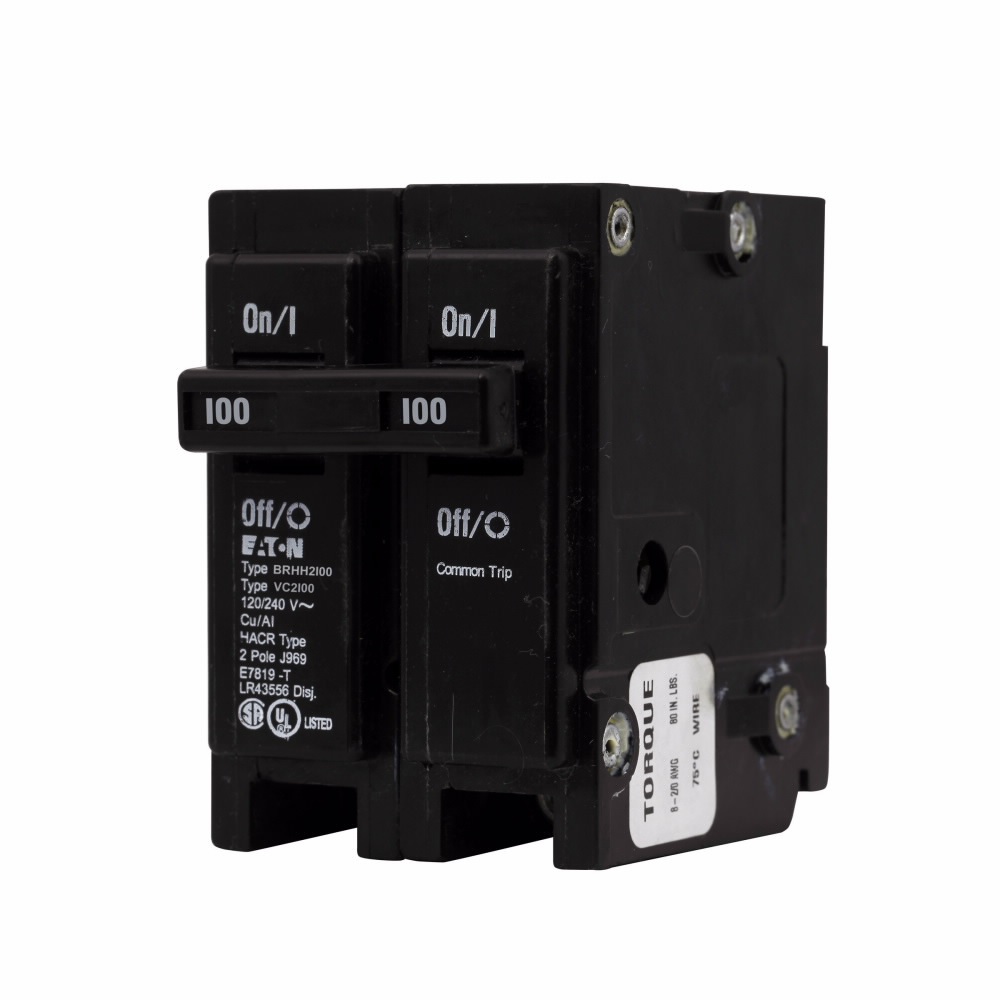

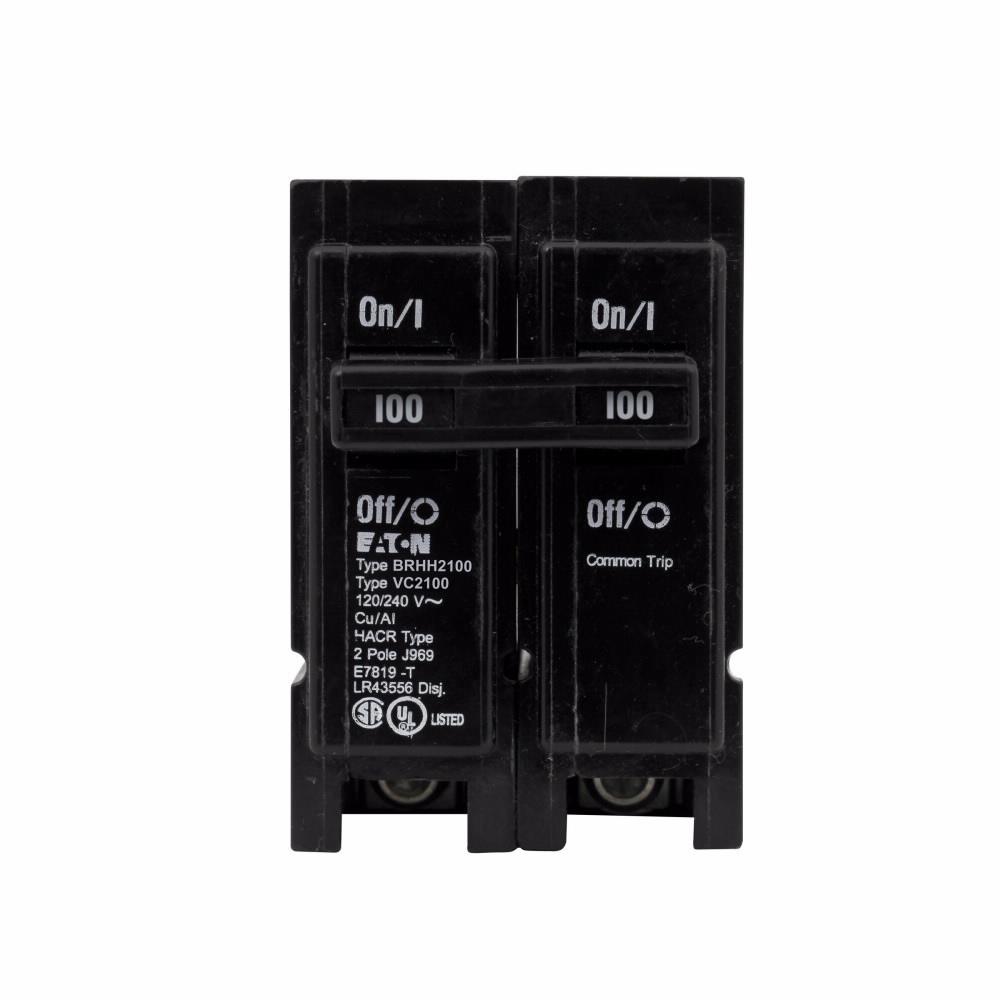

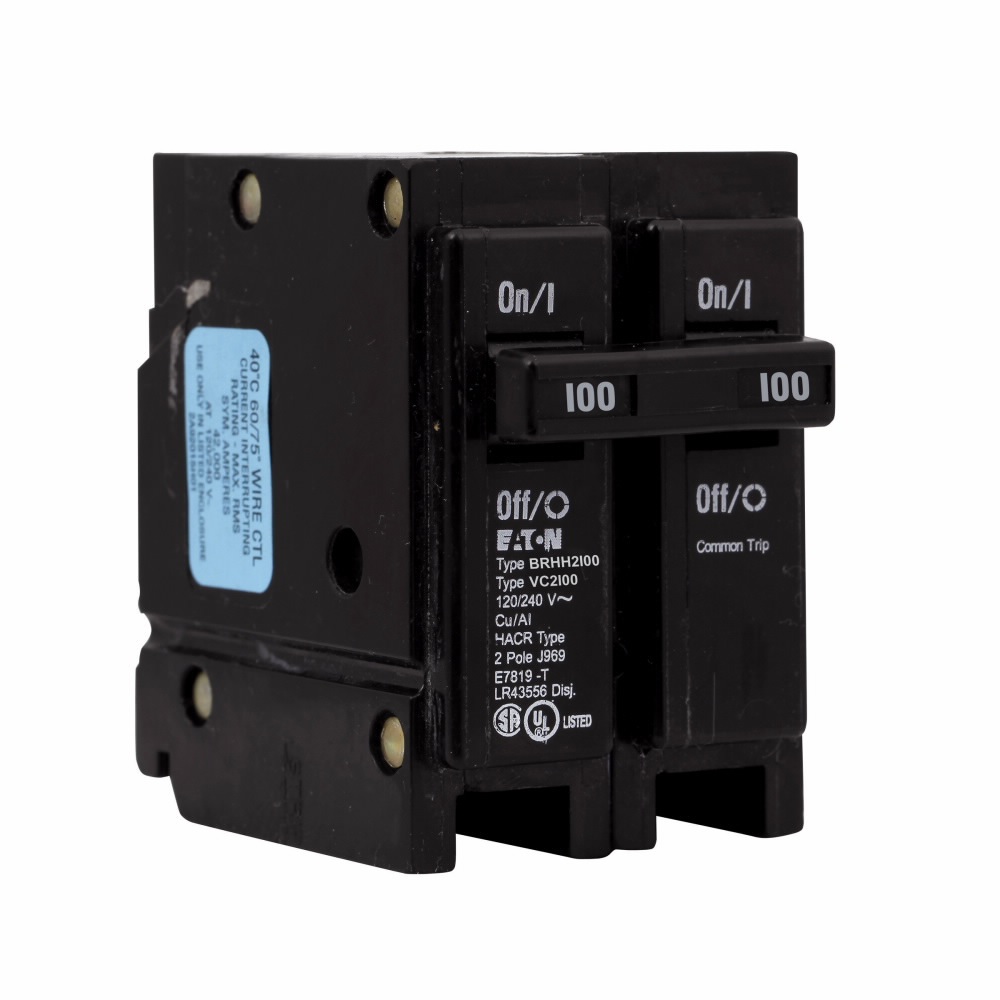

Cutler-Hammer BRHH2100 Circuit Breaker

Cutler-Hammer BRHH2100 Circuit Breaker, 120/240 VAC, 100 A, 42 kA Interrupt, 2-Pole, Common Breaker Trip

Cutler-Hammer BRHH2100 Circuit Breaker, 120/240 VAC, 100 A, 42 kA Interrupt, 2-Pole, Common Breaker Trip BRHH2100

Cutler-Hammer Circuit Breaker, 100 A, 120/240 VAC, 60 Hz, 42 kA Interrupt Rating, 2 Poles, 1 ph Phase, Common Breaker Trip, Box Lug Terminal, Handle Actuator, 4 to 1/0 AWG Aluminum/Copper Wire, Plug-On Mounting, 40 deg C, Thermoset Body, 2 in Width, 2-1/2 in Length, 3 in Height

Actuator Type      :      Handle
Amperage Rating      :      100 A
Body Material      :      Thermoset
Frequency Rating      :      60 Hz
Height      :      3 in
Interrupt Rating      :      42 kA
Length      :      2-1/2 in
Mounting Type      :      Plug-On
Number of Poles      :      2
Phase      :      1 ph
Temperature Rating      :      40 deg C
Terminal Type      :      Box Lug
Trip Type      :      Common Breaker
Voltage Rating      :      120/240 VAC
Width      :      2 in
Wire Size      :      4 to 1/0 AWG Aluminum/Copper
  • Type BJ 1 in plug-on main breakers
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_BJ3150_Catalog.pdf
