Cutler-Hammer BW2200 BW2200

Cutler-Hammer BW2200 Main Breaker

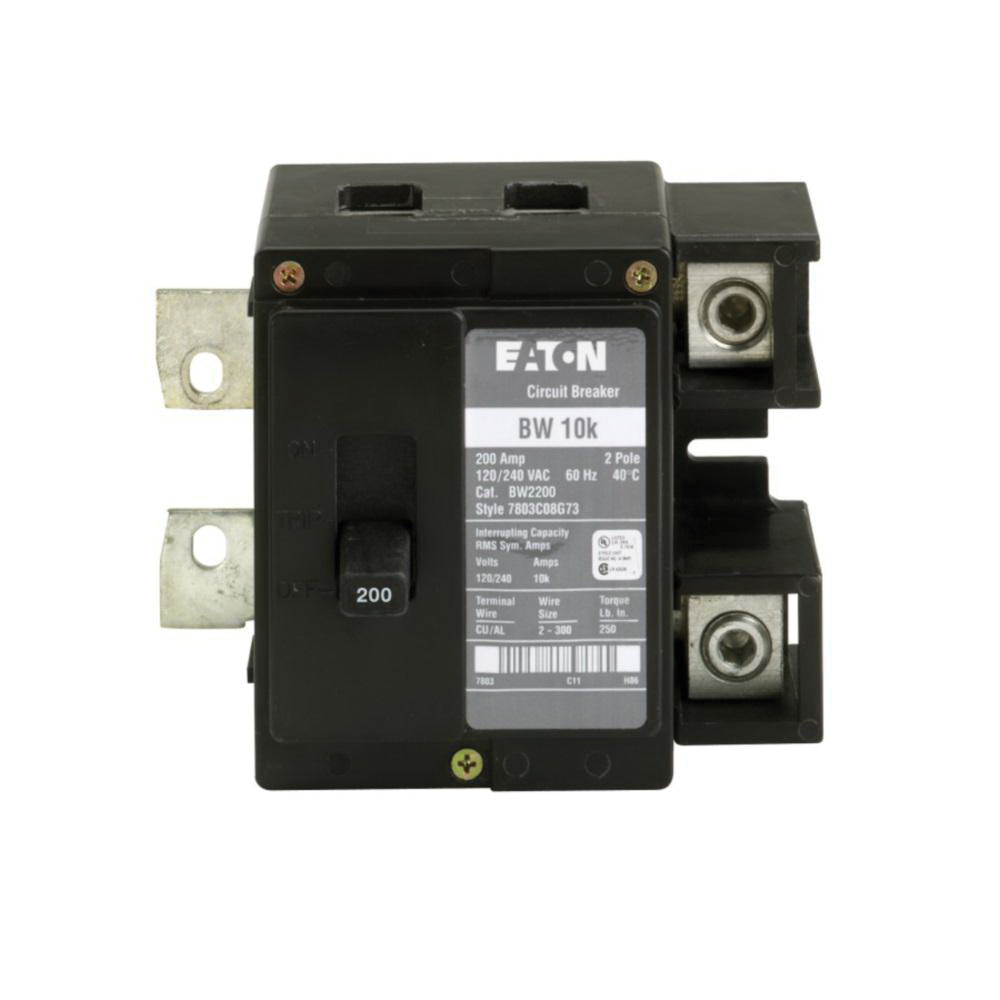

Cutler-Hammer QUICKLAG BW2200 Main Breaker, 120/240 VAC, 200 A, 10 kA Interrupt, 2-Pole

Cutler-Hammer QUICKLAG BW2200 Main Breaker, 120/240 VAC, 200 A, 10 kA Interrupt, 2-Pole BW2200

The main circuit breaker protects the entire load center. It can also be used as a service disconnect. The main breaker delivers electricity to the branch circuit breakers within the load center. It is either factory installed or sold separately depending on The Model and application.

Amperage Rating      :      200 A
Interrupt Rating      :      10 kA
Mounting Type      :      Bolt-On
Number of Poles      :      2
Phase      :      1 ph
Voltage Rating      :      120/240 VAC
Wire Size      :      2 AWG to 300 kcmil Aluminum/Copper
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_BW2200_Catalog.pdf
