Cutler-Hammer C320KGS3 C320KGS3

Cutler-Hammer C320KGS3 Base Auxiliary Contact

Cutler-Hammer C320KGS3 Base Auxiliary Contact, 120 to 600 VAC, 10 A

Cutler-Hammer C320KGS3 Base Auxiliary Contact, 120 to 600 VAC, 10 A C320KGS3

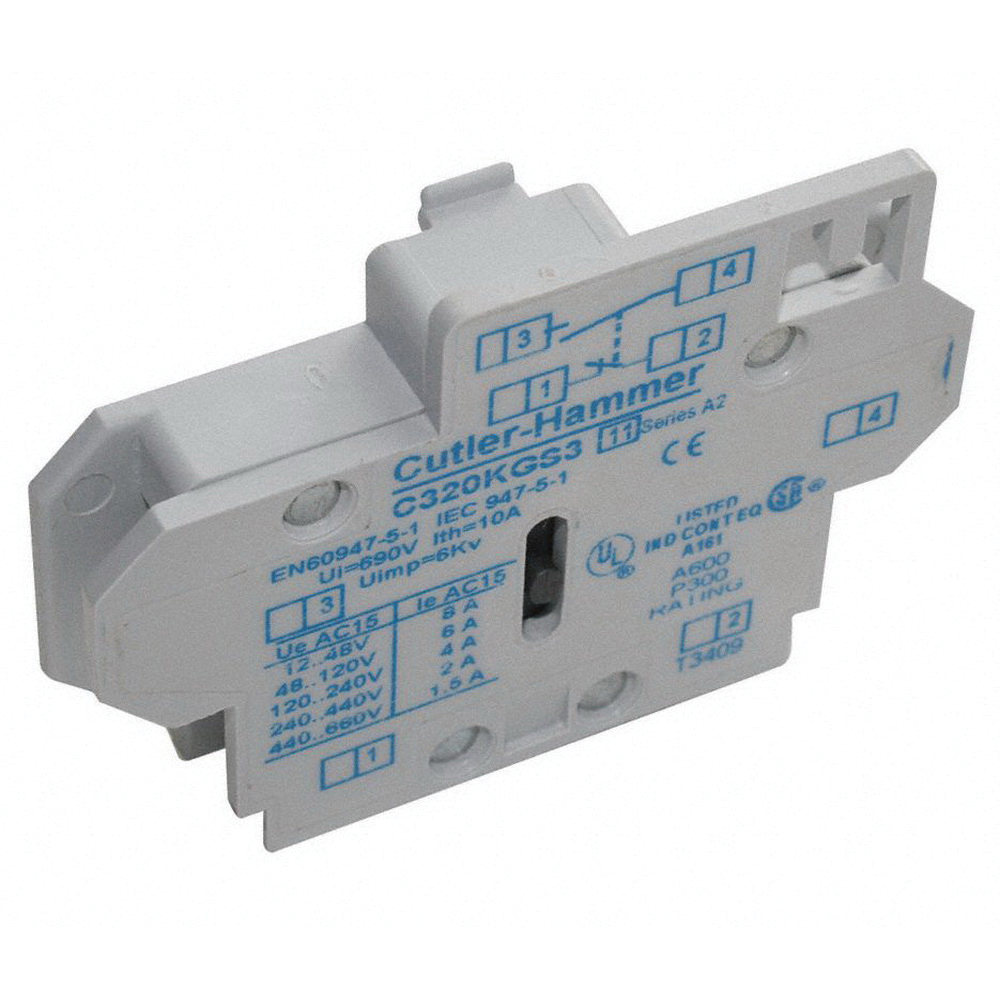

Cutler-Hammer Base Auxiliary Contact, 120 to 600 VAC, 10 A, 2 Pole, 1NO-1NC, Side Mount

Amperage Rating      :      10 A
Contact Configuration      :      (1) NO, (1) NC
Mounting Type      :      Side
Number of Poles      :      2
Suitable For Use With      :      NEMA Size 3, IEC Sizes L to N Freedom Series Starters and Contactors
Voltage Rating      :      120 to 600 VAC
  • Snap-on design facilitates quick, easy installation
  • These bifurcated design contact blocks, featuring silver cadmium alloy contacts, are well-suited for use in very low energy (logic level) circuits
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_C320KGS3_Specification_Sheet.pdf
