Cutler-Hammer C321KM90 C321KM90

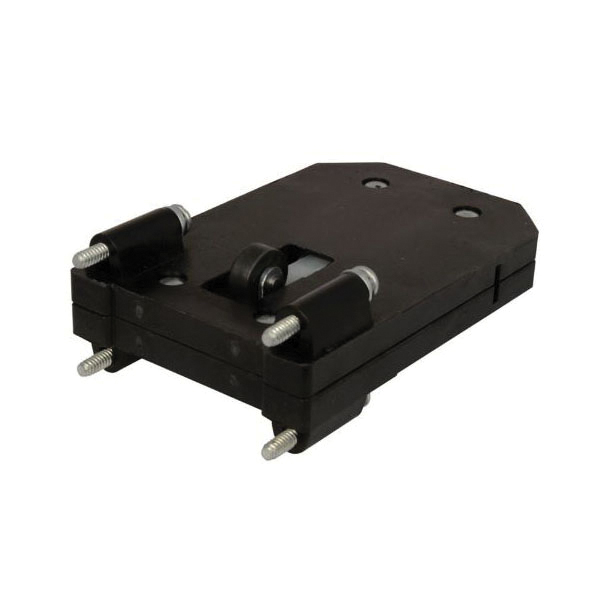

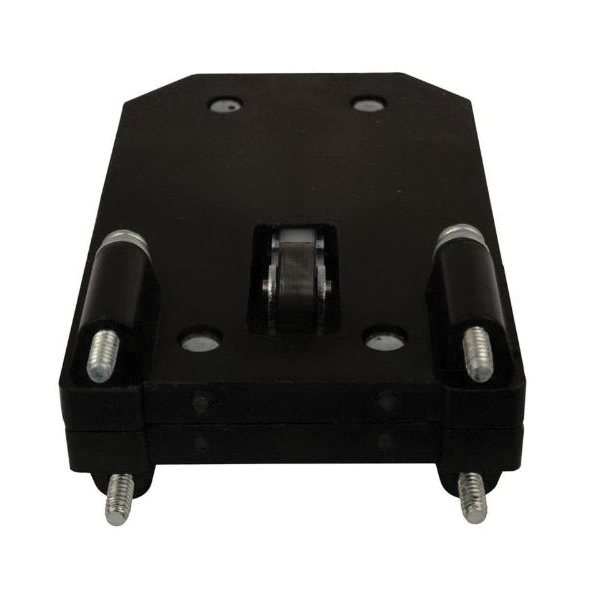

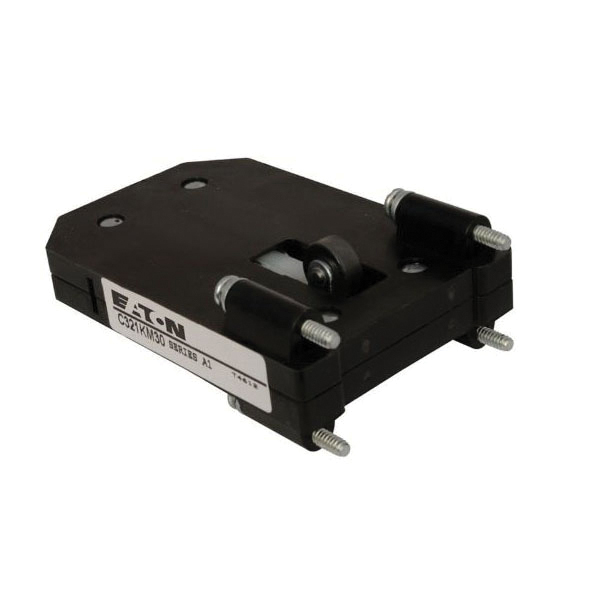

Cutler-Hammer C321KM90 Mechanical Interlock

Cutler-Hammer Freedom Series C321KM90 Mechanical Interlock, For Use With: Freedom Series NEMA Starters and Contactors

Cutler-Hammer Freedom Series C321KM90 Mechanical Interlock, For Use With: Freedom Series NEMA Starters and Contactors C321KM90

Mechanical interlocks are designed for field assembly of reversing contactors or starters from Freedom series components. The reversing kits include a mechanical interlock, stabilizer bar and a pre-cut, trimmed and formed wire set. Auxiliary contacts, if required, must be ordered separately.

Additional Information      :      IEC Size T/U to V to X, NEMA Size 4 to 7
Mounting Type      :      Horizontal
Series      :      Freedom Series
Suitable For Use With      :      Freedom Series NEMA Starters and Contactors
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_10370H26_Catalog.pdf
