Cutler-Hammer CH2125 CH2125

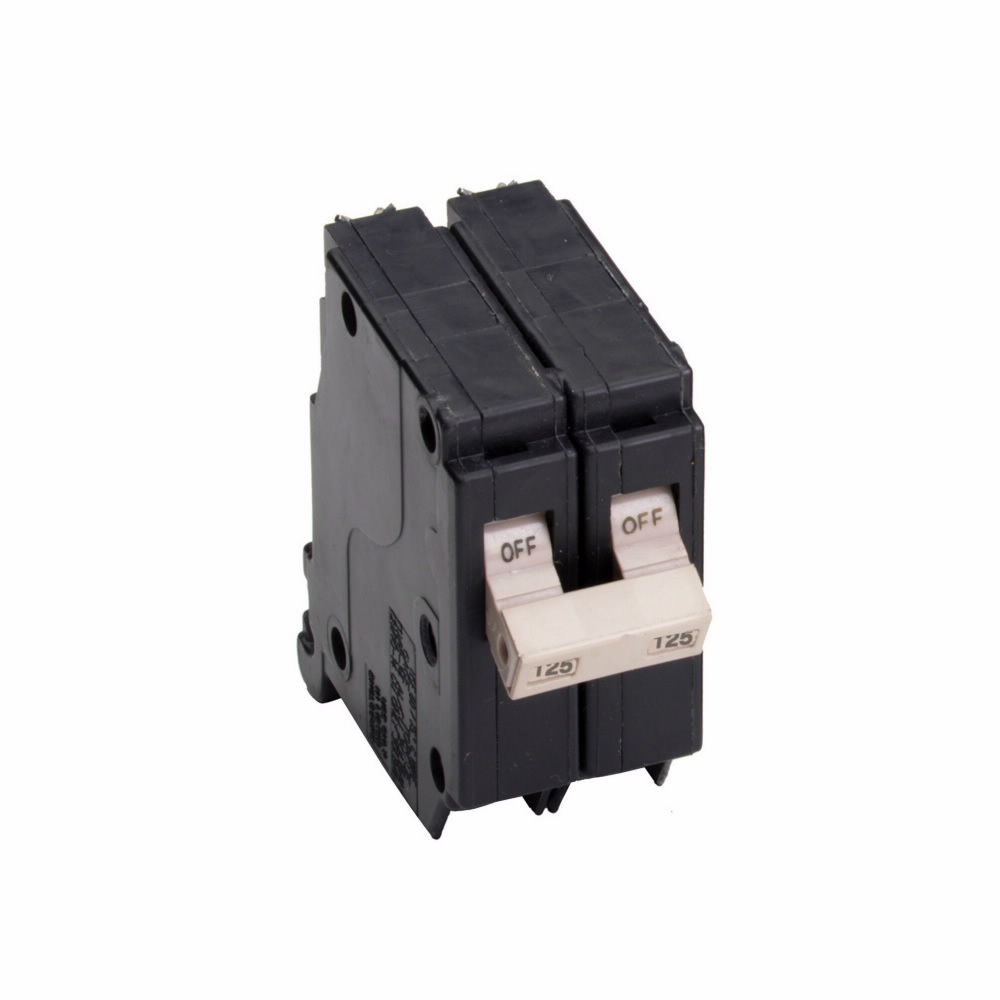

Cutler-Hammer CH2125 Circuit Breaker

Cutler-Hammer CH2125 Circuit Breaker, 120/240 VAC, 125 A, 10 kA Interrupt, 2-Pole, Common Breaker Trip

Cutler-Hammer CH2125 Circuit Breaker, 120/240 VAC, 125 A, 10 kA Interrupt, 2-Pole, Common Breaker Trip CH2125

Cutler-Hammer Circuit Breaker, 125 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 2 Poles, 1 ph Phase, Common Breaker Trip, Load Lug Terminal, 10 to 1/0 AWG Aluminum/Copper Wire, Plug-On Mounting, NEMA Rating: NEMA 1, 3R, 60 to 75 deg C, 2-1/2 in Width, 3-3/4 in Length, 2-3/4 in Height

Amperage Rating      :      125 A
Frequency Rating      :      50/60 Hz
Height      :      2-3/4 in
Interrupt Rating      :      10 kA
Length      :      3-3/4 in
Mounting Type      :      Plug-On
NEMA Rating      :      NEMA 1, 3R
Number of Poles      :      2
Phase      :      1 ph
Temperature Rating      :      60 to 75 deg C
Terminal Type      :      Load Lug
Trip Type      :      Common Breaker
Voltage Rating      :      120/240 VAC
Width      :      2-1/2 in
Wire Size      :      10 to 1/0 AWG Aluminum/Copper
  • Type CH 3/4 in standard circuit breaker
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_BJ3150_Catalog.pdf
