Cutler-Hammer CN15AN3AB CN15AN3AB

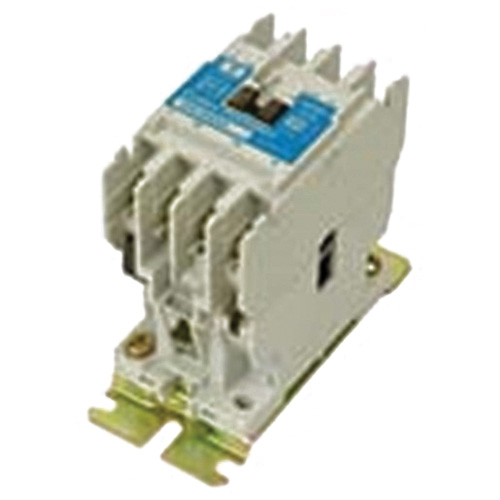

Cutler-Hammer CN15AN3AB NEMA Contactor

Cutler-Hammer CN15AN3AB NEMA Contactor, 110/120 VAC Coil, 3 -Pole, Open Enclosure, NEMA 00

Cutler-Hammer CN15AN3AB NEMA Contactor, 110/120 VAC Coil, 3 -Pole, Open Enclosure, NEMA 00 CN15AN3AB

Cutler-Hammer NEMA Contactor, CN15 Series, 600 V, 9 A, 50/60 Hz, 1.5 hp, 110/120 VAC Coil Voltage, 3 Poles, 16 to 12 AWG, 14 to 12 AWG Wire, Plate Mounting, Open Enclosure, NEMA Rating: NEMA 00, 3000000 cycles Operating Cycles, Silver Cadmium Oxide Contact, 3.88 in Height, 1-3/4 in Width, 3.49 in Depth

Amperage Rating      :      9 A
Coil Voltage      :      110/120 VAC
Contact Material      :      Silver Cadmium Oxide
Depth      :      3.49 in
Enclosure Type      :      Open
Frequency Rating      :      50/60 Hz
Height      :      3.88 in
Mounting Type      :      Plate
NEMA Rating      :      NEMA 00
Number of Poles      :      3
Operating Cycles      :      3000000 cycles
Power Rating      :      1.5 hp
Series      :      CN15 Series
Voltage Rating      :      600 V
Width      :      1-3/4 in
Wire Size      :      16 to 12 AWG, 14 to 12 AWG
  • 75 deg C wire
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_CN15AN3AB_Catalog.pdf
