Cutler-Hammer CN15GN3AB CN15GN3AB

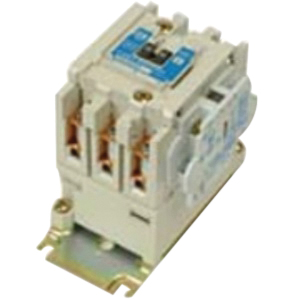

Cutler-Hammer CN15GN3AB NEMA Contactor

Cutler-Hammer CN15GN3AB NEMA Contactor, 110/120 VAC Coil, 3 -Pole, Open Enclosure, NEMA 2

Cutler-Hammer CN15GN3AB NEMA Contactor, 110/120 VAC Coil, 3 -Pole, Open Enclosure, NEMA 2 CN15GN3AB

Cutler-Hammer NEMA Contactor, CN15 Series, 600 V, 45 A, 50/60 Hz, 25 hp, 110/120 VAC Coil Voltage, 3 Poles, 16 to 12 AWG, 14 to 12 AWG, 14 to 3 AWG, 14 to 6 AWG Wire, Plate Mounting, Open Enclosure, NEMA Rating: NEMA 2, 3000000 cycles Operating Cycles, Silver Cadmium Oxide Contact, 5.05 in Height, 2.56 in Width, 4.44 in Depth

Amperage Rating      :      45 A
Coil Voltage      :      110/120 VAC
Contact Material      :      Silver Cadmium Oxide
Depth      :      4.44 in
Enclosure Type      :      Open
Frequency Rating      :      50/60 Hz
Height      :      5.05 in
Mounting Type      :      Plate
NEMA Rating      :      NEMA 2
Number of Poles      :      3
Operating Cycles      :      3000000 cycles
Power Rating      :      25 hp
Series      :      CN15 Series
Voltage Rating      :      600 V
Width      :      2.56 in
Wire Size      :      16 to 12 AWG, 14 to 12 AWG, 14 to 3 AWG, 14 to 6 AWG
  • 75 deg C wire
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_CN15AN3AB_Catalog.pdf
