Cutler-Hammer CPM120 CPM120

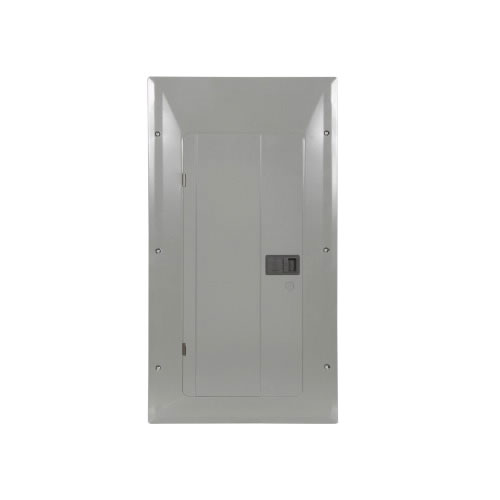

Cutler-Hammer CPM120 Main Breaker Load Center With Door

Cutler-Hammer CPM120 Main Breaker Load Center With Door, 120/240 VAC, 100 A, 25 kA Interrupt

Cutler-Hammer CPM120 Main Breaker Load Center With Door, 120/240 VAC, 100 A, 25 kA Interrupt CPM120

Cutler-Hammer Main Breaker Load Center, 100 A, 120/240 VAC, 25 kA Interrupt, 3-Wire Wiring Configuration, BRH Breaker, 1 ph, 100 A Bus Rating, 20 Spaces, 40 Circuits, Steel, Aluminum Bus, 4 to 1/0 AWG Wire, Flush, Surface Mount, NEMA 1, 27 in H x 14-3/8 in W x 3-7/8 in D, Galvanized

Amperage Rating      :      100 A
Breaker Type      :      BRH
Bus Material      :      Aluminum
Bus Rating      :      100 A
Dimensions      :      27 in H x 14-3/8 in W x 3-7/8 in D
Enclosure Type      :      NEMA 1
Finish      :      Galvanized
Interrupt Rating      :      25 kA
Material      :      Steel
Mounting Type      :      Flush, Surface
Number of Circuits      :      40
Number of Spaces      :      20
Phase      :      1 ph
Voltage Rating      :      120/240 VAC
Wire Size      :      4 to 1/0 AWG
Wiring Configuration      :      3-Wire
  • Larger knockout provides easier installation and time savings for renovation installations
  • Straight in wiring saves labor and material
  • Panel can be mounted in any orientation horizontally or vertically
  • Standard tin plate aluminum bus gives excellent conductivity and corrosion resistance
  • Drywall marking on enclosure indicates proper mounting depth for flush applications
  • One keyhole at the top and bottom provides easier mounting and leveling
  • 25kAIC series rated main breaker for superior protection
  • Slotted mounting feet enable easy removal and installation without fully removing screws
  • Minimum 200% neutral capacity with backed-out neutral screws
  • Steel backpan provides solid and reliable breaker mounting - single piece design for stability and durability
  • Circuit Directory provides easy identification of branch circuits with a center numbering strip
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_CPM120_Catalog.pdf
