Cutler-Hammer D7PAA D7PAA

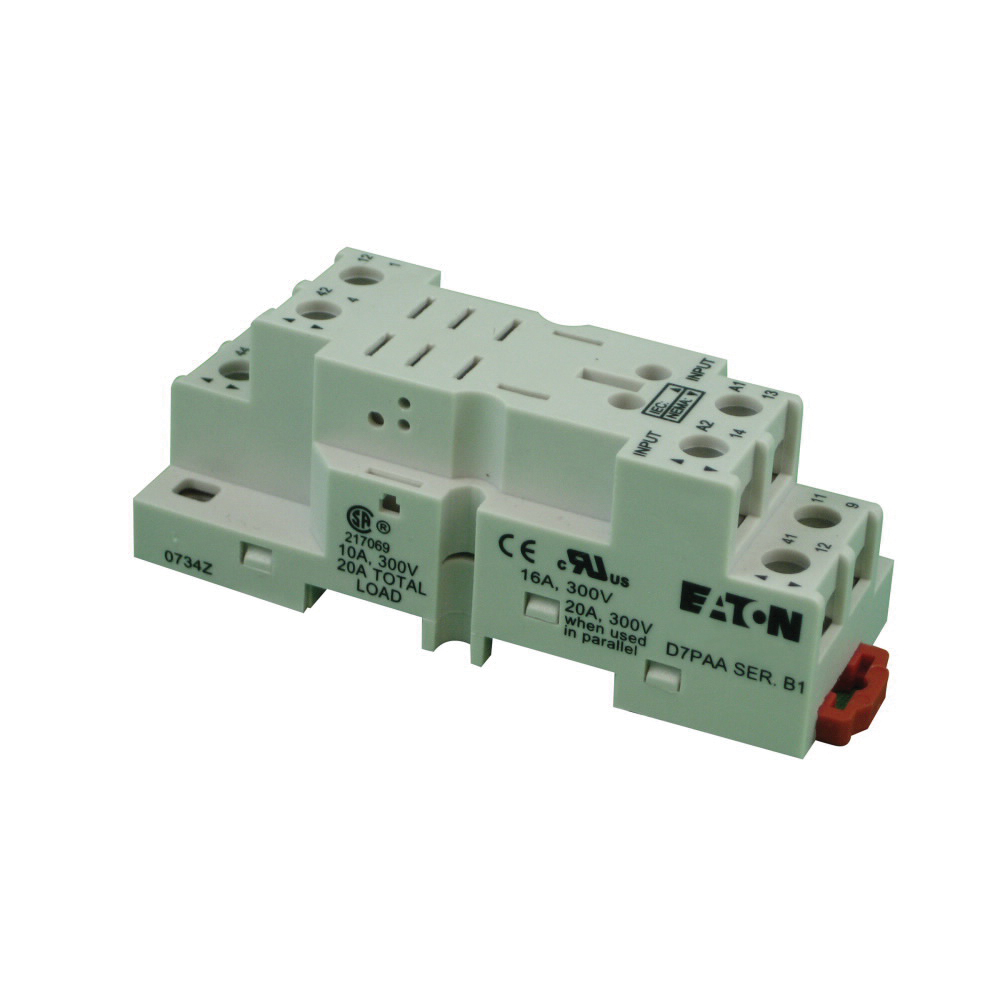

Cutler-Hammer D7PAA General Purpose Relay Socket

Cutler-Hammer D7 Series D7PAA General Purpose Relay Socket, 300 V, 16 A, 12/14 AWG Wire, DIN Rail/Screw Mounting

Cutler-Hammer D7 Series D7PAA General Purpose Relay Socket, 300 V, 16 A, 12/14 AWG Wire, DIN Rail/Screw Mounting D7PAA

Cutler-Hammer General Purpose Relay Socket, Series: D7 Series, 300 V, 16 A, Screw Clamp Electrical Connection, 12/14 AWG Wire, DIN Rail/Screw Mounting, 3.33 in Length, 1.18 in Width, 1.18 in Height, For Use With: D7PR1, D7PR2, D7PF1 and D7PF2 Relays, IP20 Enclosure Type, B Module Size Additional Information

Additional Information      :      IP20 Enclosure Type, B Module Size
Amperage Rating      :      16 A
Electrical Connection Type      :      Screw Clamp
Height      :      1.18 in
Length      :      3.33 in
Mounting Type      :      DIN Rail/Screw
Series      :      D7 Series
Suitable For Use With      :      D7PR1, D7PR2, D7PF1 and D7PF2 Relays
Voltage Rating      :      300 V
Width      :      1.18 in
Wire Size      :      12/14 AWG
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_D7PAA_Line_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_D7PAA_Specification_Sheet.pdf
  • pdfWarranty Information https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_D2PA6_Warranty.pdf
