Cutler-Hammer D7PAD D7PAD

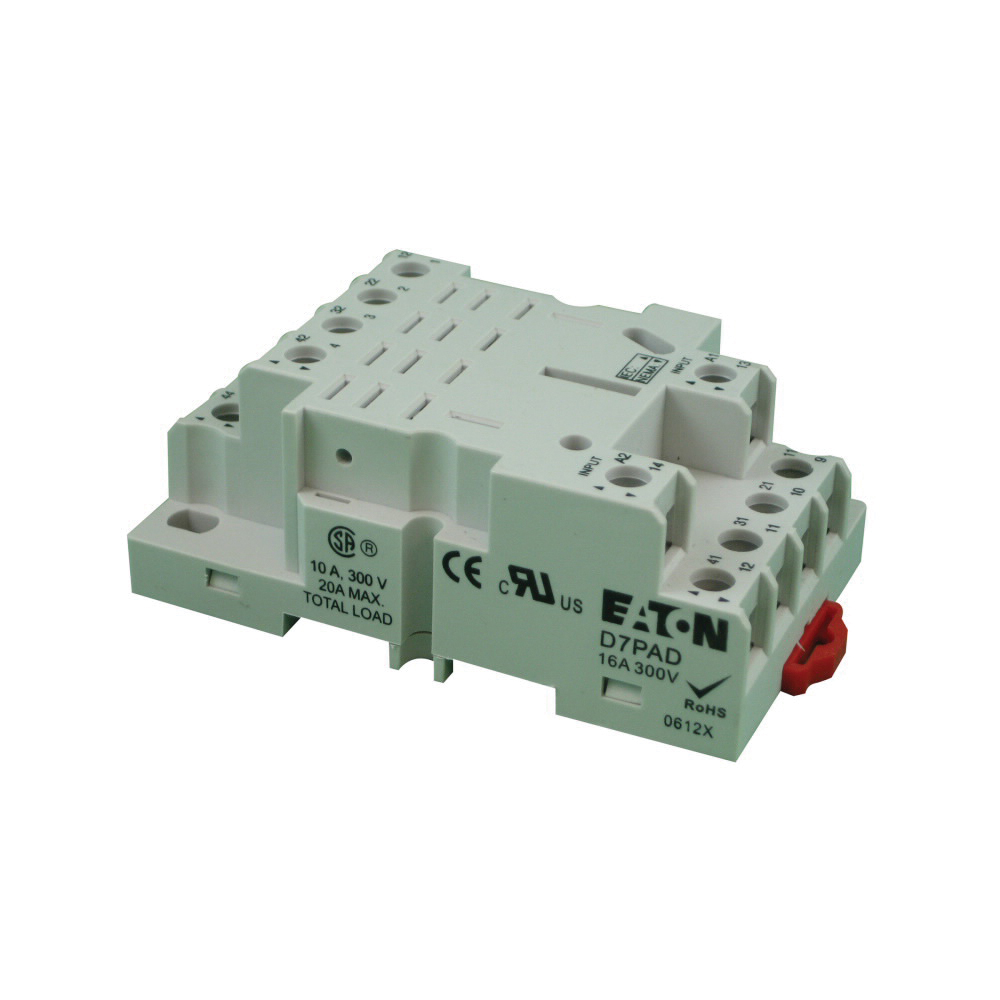

Cutler-Hammer D7PAD General Purpose Relay Socket

Cutler-Hammer D7 Series D7PAD General Purpose Relay Socket, 300 V, 16 A, 12/14 AWG Wire, DIN Rail/Screw Mounting

Cutler-Hammer D7 Series D7PAD General Purpose Relay Socket, 300 V, 16 A, 12/14 AWG Wire, DIN Rail/Screw Mounting D7PAD

Cutler-Hammer General Purpose Relay Socket, Series: D7 Series, 300 V, 16 A, Screw Clamp Electrical Connection, 12/14 AWG Wire, DIN Rail/Screw Mounting, 3-1/2 in Length, 2 in Width, 1-1/4 in Height, For Use With: D7PR4 and D7PF4 Relays, IP20 Enclosure Type, A Module Size Additional Information

Additional Information      :      IP20 Enclosure Type, A Module Size
Amperage Rating      :      16 A
Electrical Connection Type      :      Screw Clamp
Height      :      1-1/4 in
Length      :      3-1/2 in
Mounting Type      :      DIN Rail/Screw
Series      :      D7 Series
Suitable For Use With      :      D7PR4 and D7PF4 Relays
Voltage Rating      :      300 V
Width      :      2 in
Wire Size      :      12/14 AWG
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_D7PAD_Line_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_D7PAD_Specification_Sheet.pdf
