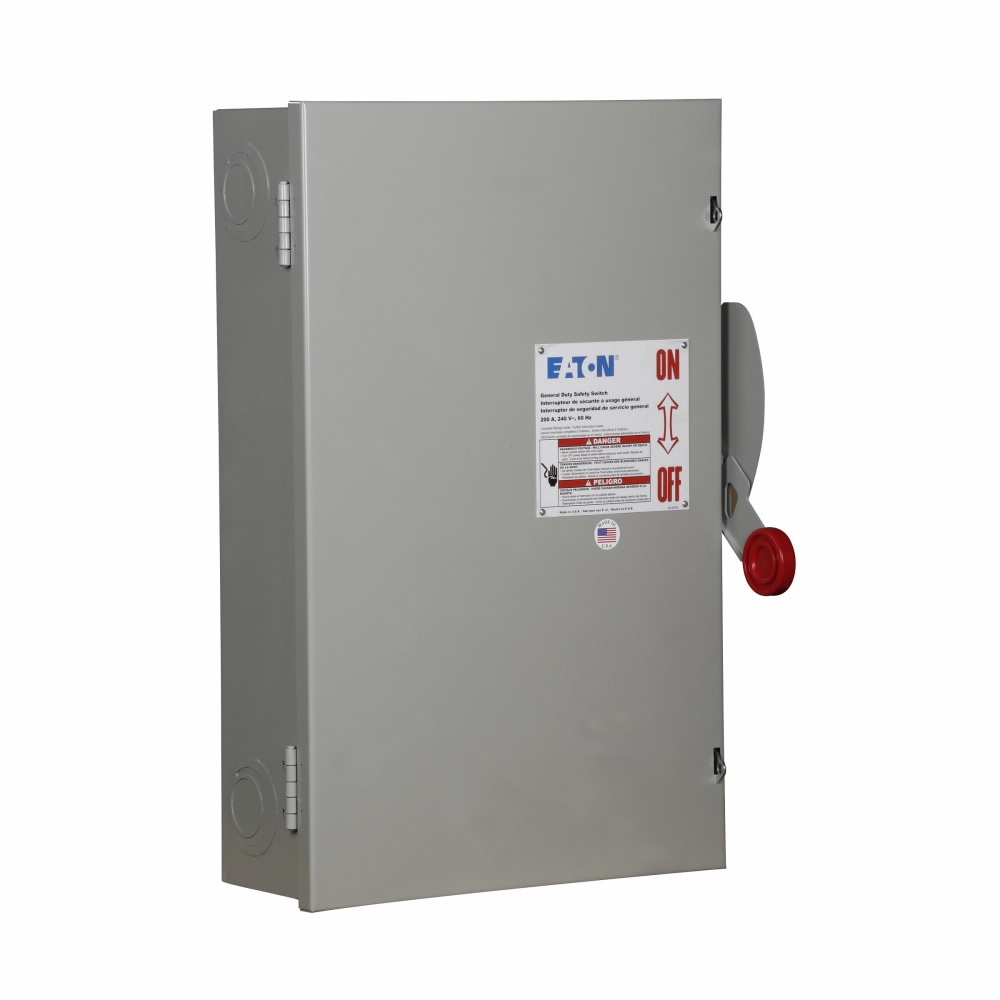

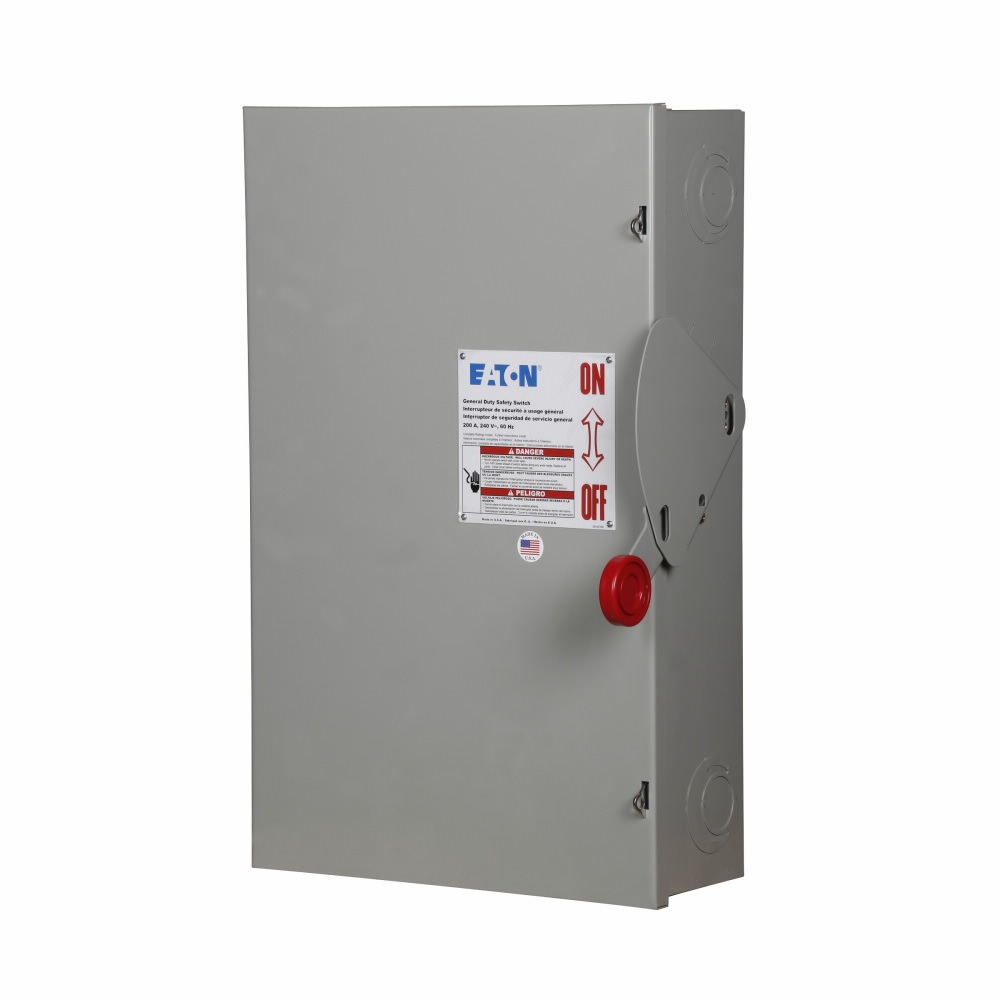

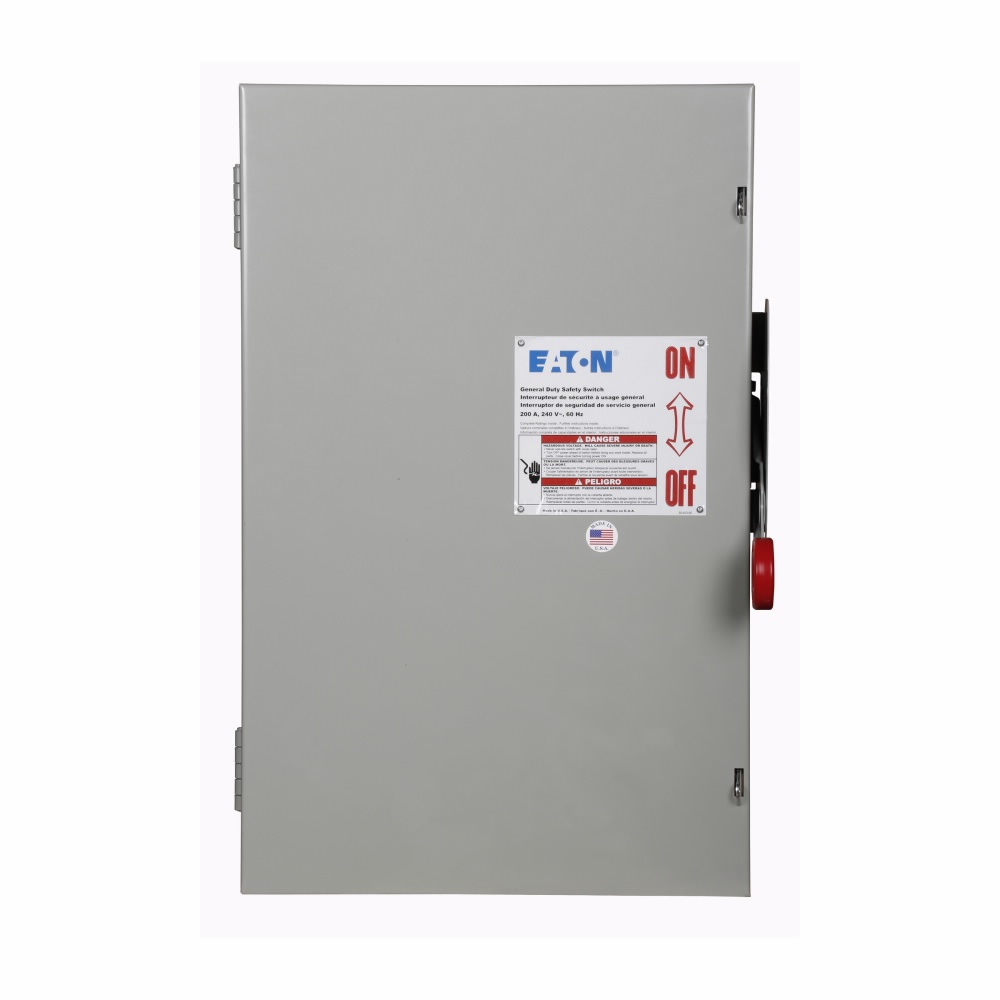

Cutler-Hammer DG224NGK Cartridge Safety Switch
Cutler-Hammer DG224NGK Cartridge Safety Switch, 240 VAC, 200 A, 1 ph, 3-Phase, 2-Pole, 25 to 60 hp, 3-Wire, Steel
Cutler-Hammer DG224NGK Cartridge Safety Switch, 240 VAC, 200 A, 1 ph, 3-Phase, 2-Pole, 25 to 60 hp, 3-Wire, Steel DG224NGK- Brand Name: Cutler-Hammer
- Part Number: DG224NGK
- UPC: 782113213491
- Check Stock
Add To Favorites ListCutler-Hammer Cartridge Safety Switch, 240 VAC, 200 A, 1 ph, 3 ph, 2 Pole, HP Rating: 25 to 60 hp, DPST, Disconnect Type: Fusible, With Neutral With Neutral/Without Neutral, 3 Wires, NEMA 1, Surface Mount, Steel, Painted, 11-1/4 in L x 16 in W x 24-3/4 in H
| Amperage Rating | : | 200 A |
| Contact Configuration | : | DPST |
| Dimensions | : | 11-1/4 in L x 16 in W x 24-3/4 in H |
| Disconnect Type | : | Fusible |
| Enclosure Type | : | NEMA 1 |
| Finish | : | Painted |
| HP Rating | : | 25 to 60 hp |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Phase | : | 1 ph, 3 ph |
| Voltage Rating | : | 240 VAC |
| With Neutral/Without Neutral | : | With Neutral |
- Maximum hp ratings apply only when dual-element fuses are used
- Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
- The position (on or off) can be clearly seen from a distance and the length provides for easy operation
- Personnel safety feature because the large hasp can accommodate up to three 3/8 in shank locks
- Cabinet door can be further padlocked at the top and bottom as applicable

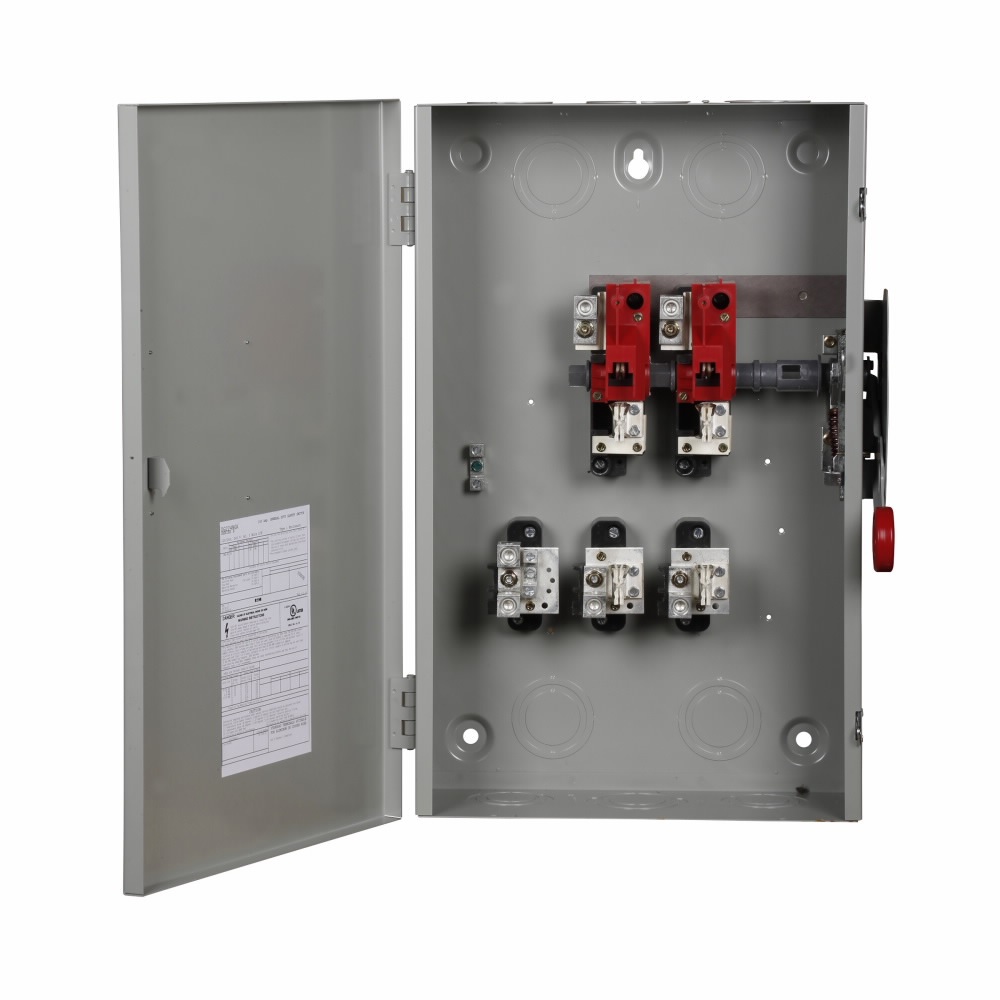

- Door cannot be opened when the handle is in the on position, front and side operable defeater mechanism provides for user access when necessary on single throw switches
- An ample number are provided on the top, bottom and sides of both NEMA types 1 and 3R enclosures through 200 A
