Cutler-Hammer DH325FRK DH325FRK

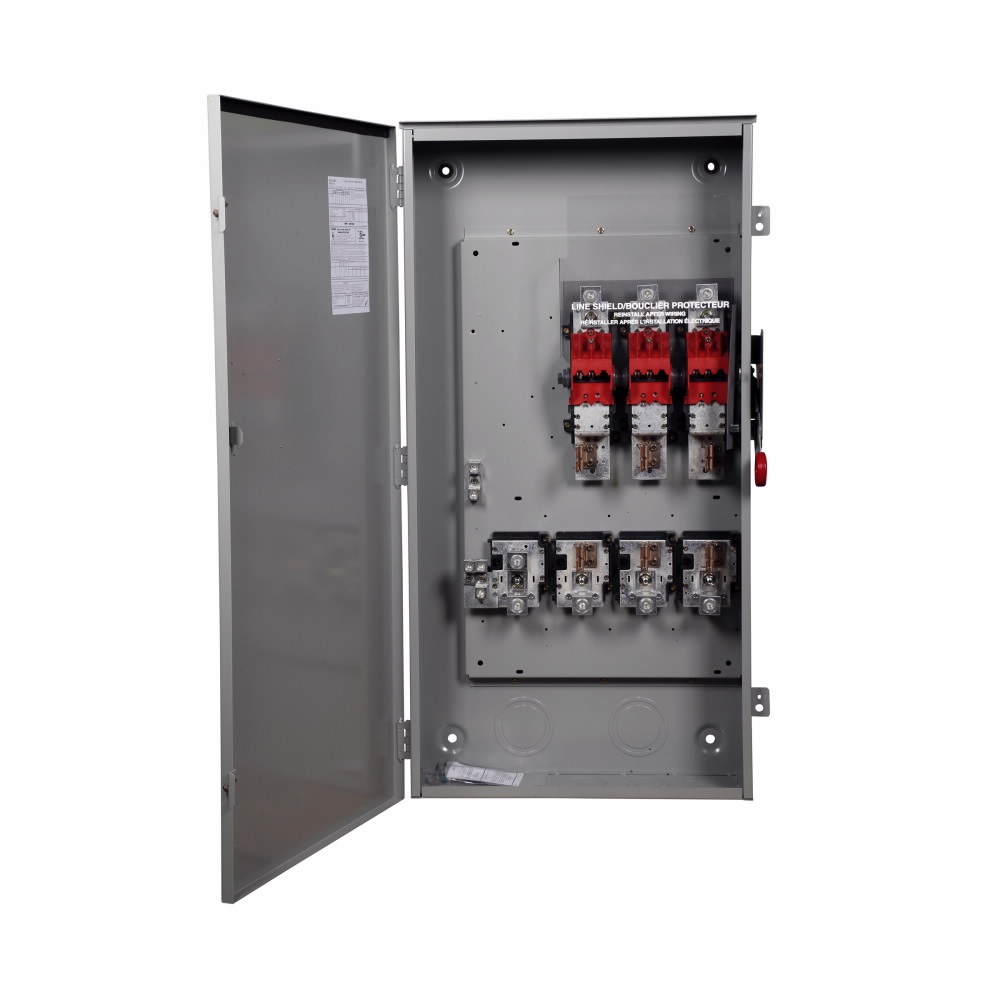

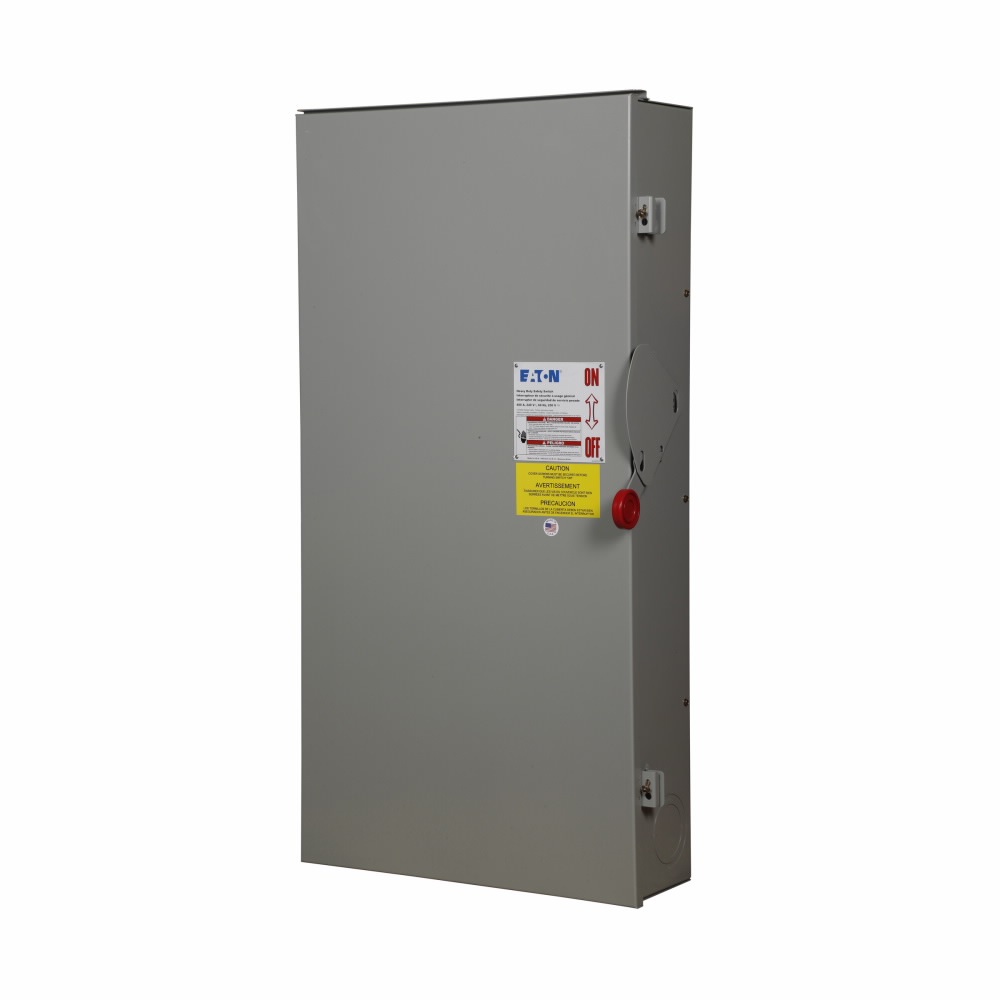

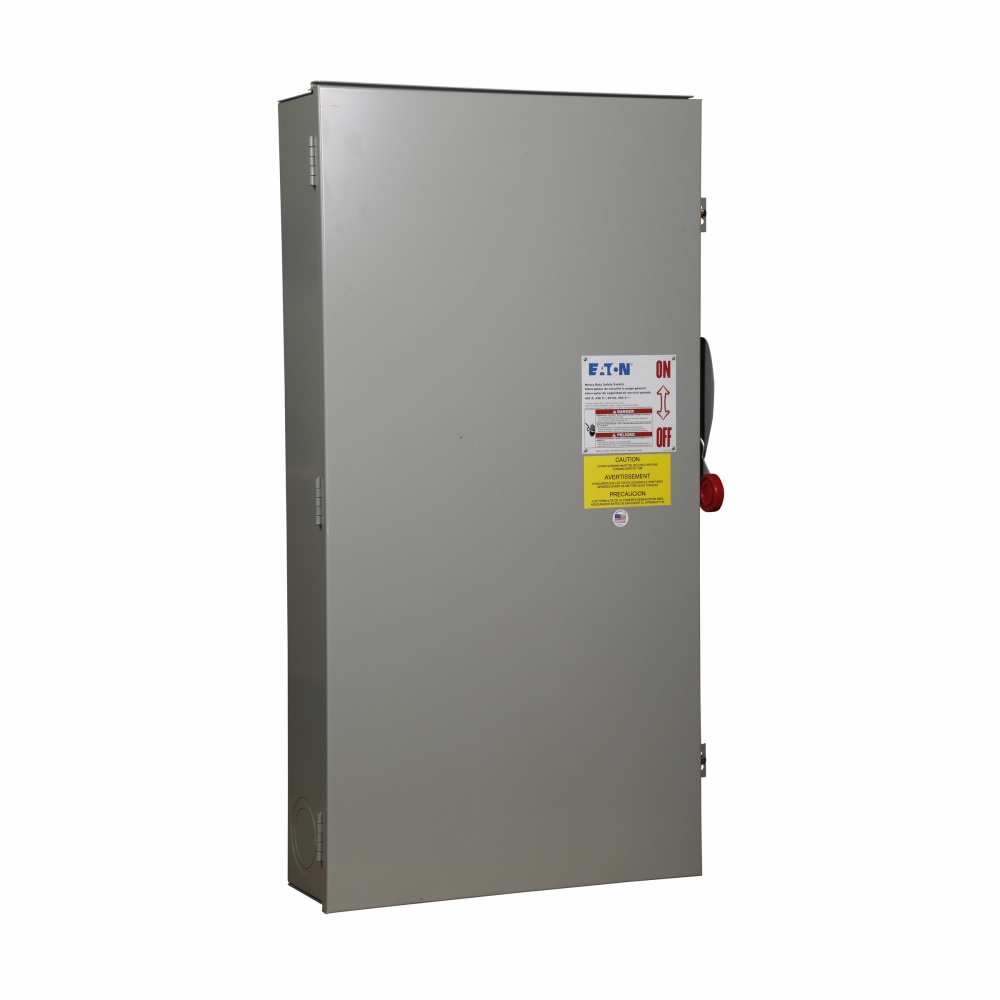

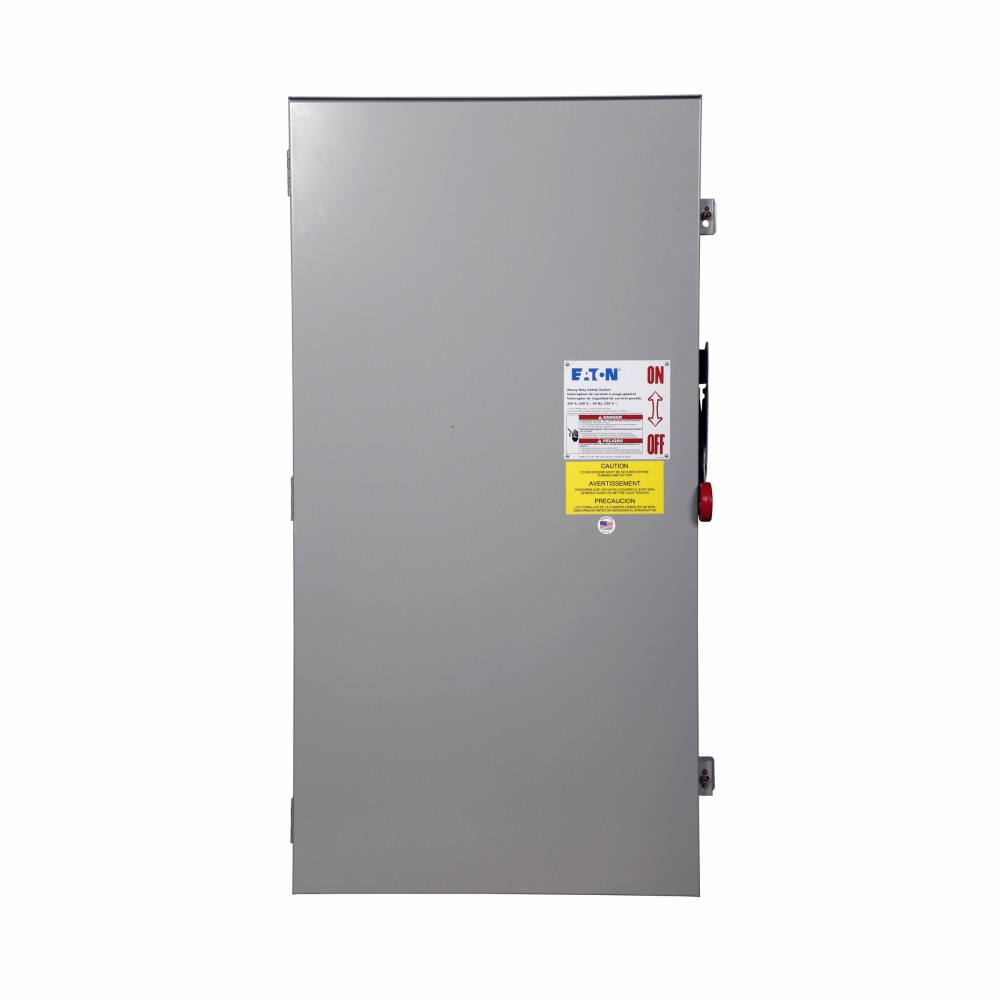

Cutler-Hammer DH325FRK Safety Switch With Enhanced Visible Blade

Cutler-Hammer DH325FRK Safety Switch With Enhanced Visible Blade, 240/250 VAC/VDC, 400 A, 3-Phase, 3-Pole, 50 hp

Cutler-Hammer DH325FRK Safety Switch With Enhanced Visible Blade, 240/250 VAC/VDC, 400 A, 3-Phase, 3-Pole, 50 hp DH325FRK

Cutler-Hammer Safety Switch, 240/250 VAC/VDC, 400 A, 3 ph, 3 Pole, HP Rating: 50 hp, TPST, Disconnect Type: Fusible, Without Neutral With Neutral/Without Neutral, 3 Wires, 1/0 AWG to 300 kcmil, 1/0 AWG to 750 kcmil Wire, NEMA 3R, Surface Mount, Steel, Galvanized/Painted, 10.25 in L x 24.38 in W x 45.5 in H

Amperage Rating      :      400 A
Contact Configuration      :      TPST
Dimensions      :      10.25 in L x 24.38 in W x 45.5 in H
Disconnect Type      :      Fusible
Enclosure Type      :      NEMA 3R
Finish      :      Galvanized/Painted
HP Rating      :      50 hp
Material      :      Steel
Mounting Type      :      Surface
Number of Poles      :      3
Number of Wires      :      3
Phase      :      3 ph
Voltage Rating      :      240/250 VAC/VDC
Wire Size      :      1/0 AWG to 300 kcmil, 1/0 AWG to 750 kcmil
With Neutral/Without Neutral      :      Without Neutral
  • Suitable for service entrance use with a neutral kit installed
  • Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
  • Protects against accidental contact with energized parts, probe holes enable the user to test if the line side is energized without removing the shield
  • The position (on or off) can be clearly seen from a distance and the length provides for easy operation
  • Personnel safety feature because the large hasp can accommodate up to three 3/8 in shank locks
  • Cabinet door can be further padlocked at the top and bottom as applicable
  • Door cannot be opened when the handle is in the on position, front and side operable defeater mechanism provides for user access when necessary on single throw switches
  • An ample number are provided on the top, bottom and sides of both NEMA types 1 and 3R enclosures through 200 A
  • Bolt-on hub kit for switches in a NEMA type 3R, 30 to 200 A
