Cutler-Hammer DH361UDK DH361UDK

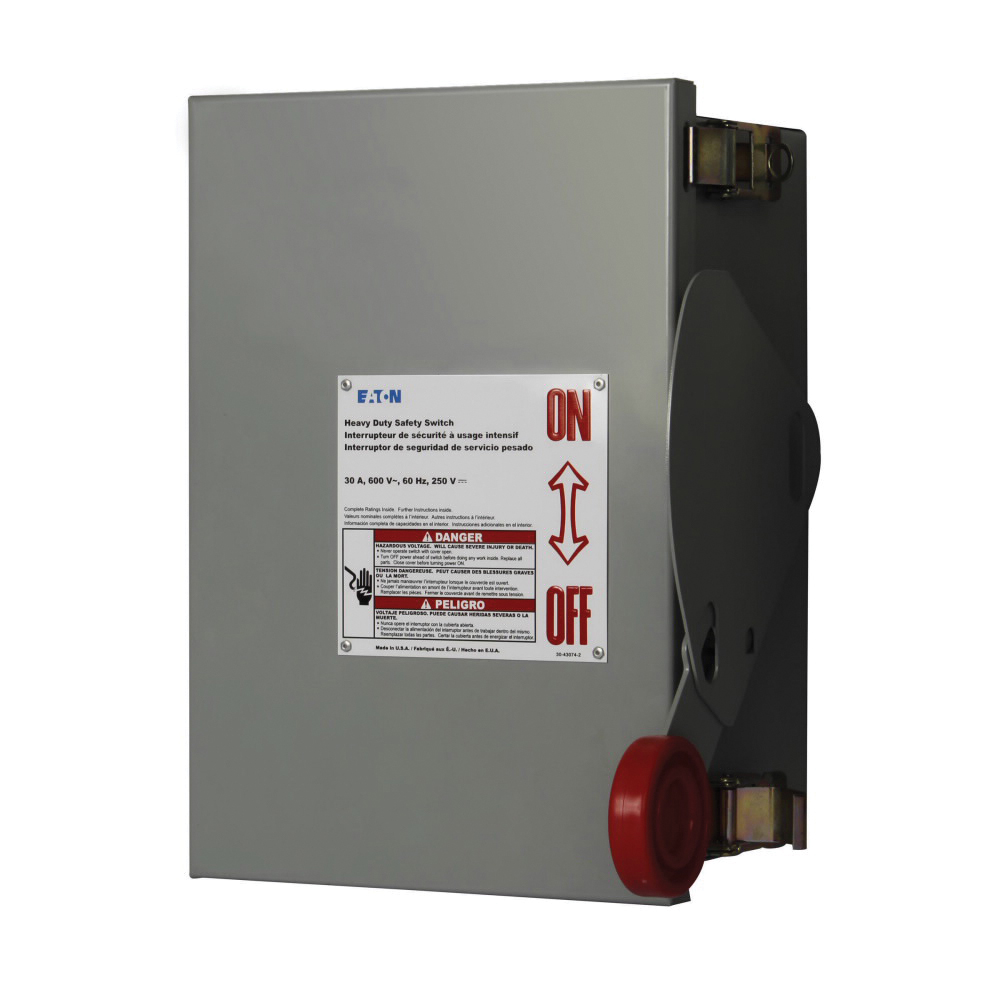

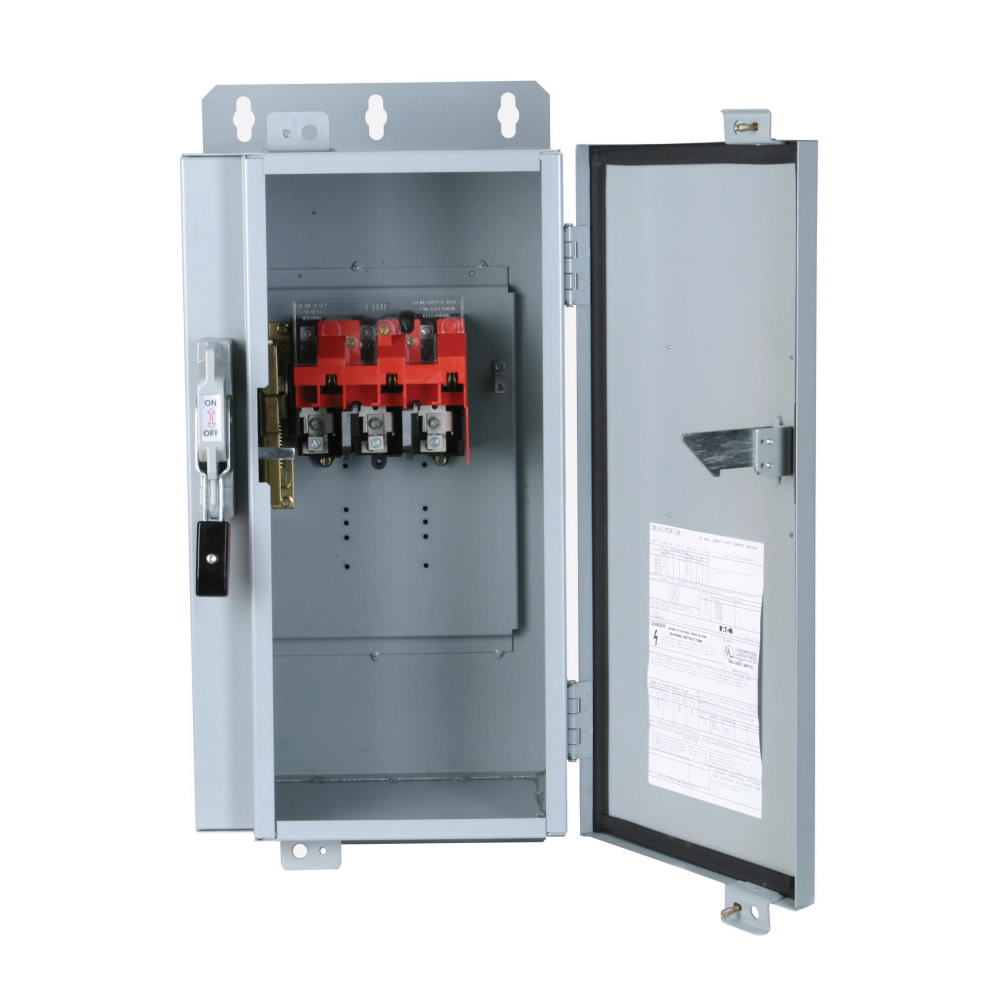

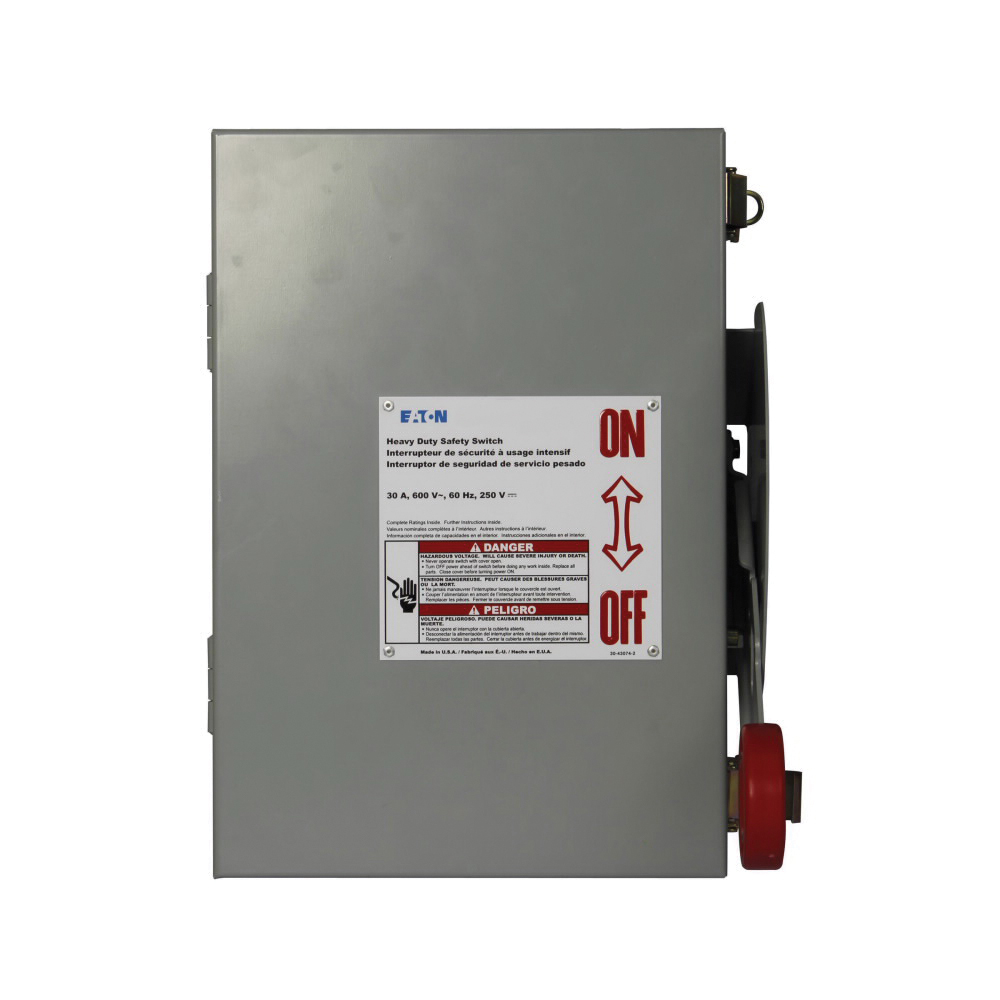

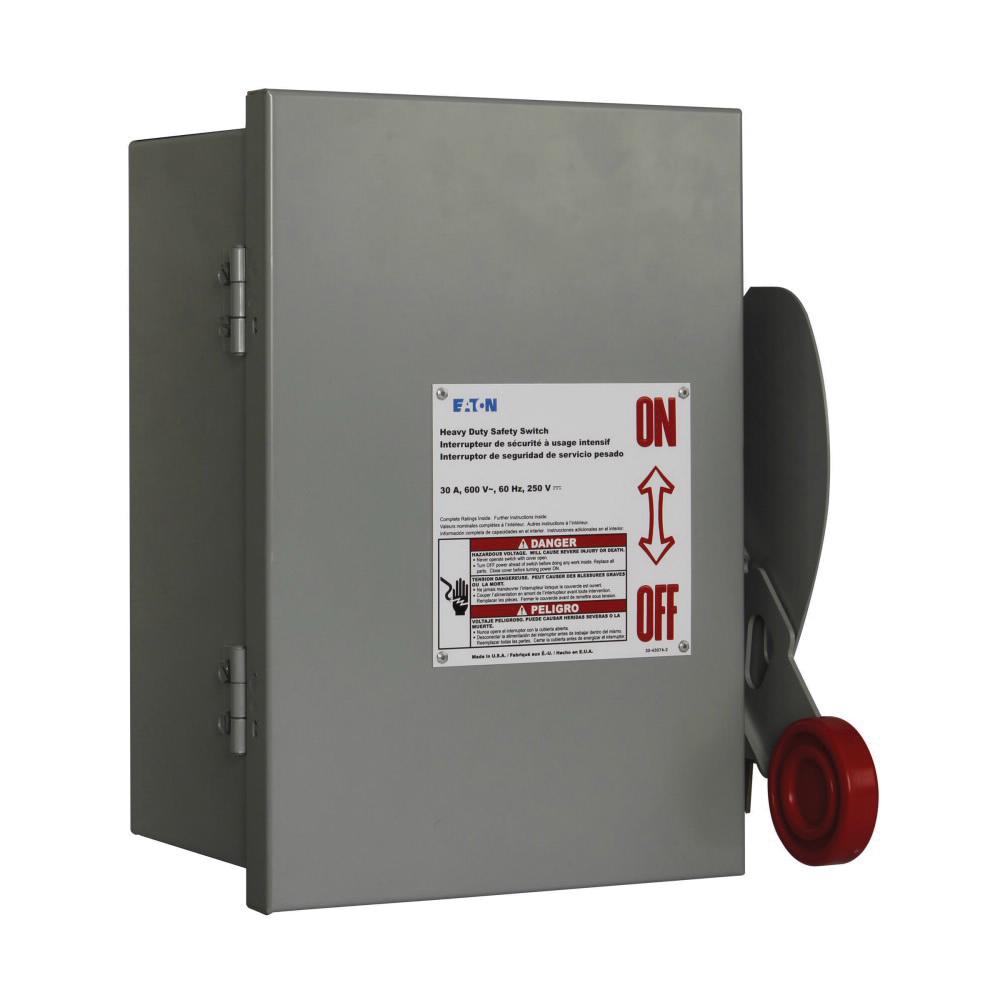

Cutler-Hammer DH361UDK Single-Throw Non-Fused Safety Switch

Cutler-Hammer DH361UDK Single-Throw Non-Fused Safety Switch, Heavy Duty Rating, 600 V, 30 A, 1 or 3 ph -Phase, 3 -Pole

Cutler-Hammer DH361UDK Single-Throw Non-Fused Safety Switch, Heavy Duty Rating, 600 V, 30 A, 1 or 3 ph -Phase, 3 -Pole DH361UDK

Cutler-Hammer Single-Throw Non-Fused Safety Switch, Duty Rating: Heavy, 600 V, 30 A, 1 or 3 ph Phase, 3 Poles, 3 hp, 7.5 hp, 10 hp, 10 hp, 20 hp, 30 hp, 5 hp, 3 Wires, NEMA 12 Enclosure, Steel, Galvanized/Painted, 10.22 in L x 8.76 in W x 14.14 in H

Amperage Rating      :      30 A
Dimensions      :      10.22 in L x 8.76 in W x 14.14 in H
Duty Rating      :      Heavy
Enclosure Type      :      NEMA 12
Finish      :      Galvanized/Painted
HP Rating      :      3 hp, 7.5 hp, 10 hp, 10 hp, 20 hp, 30 hp, 5 hp
Material      :      Steel
Number of Poles      :      3
Number of Wires      :      3
Phase      :      1 or 3 ph
Voltage Rating      :      600 V
  • Suitable for service entrance use with a neutral or ground lug kit installed
  • Can be field modified to meet NEMA 3R rainproof requirements when a factory provided drain hole is opened
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_DH361UDK_Specification_Sheet.pdf
