Cutler-Hammer DH363UDK DH363UDK

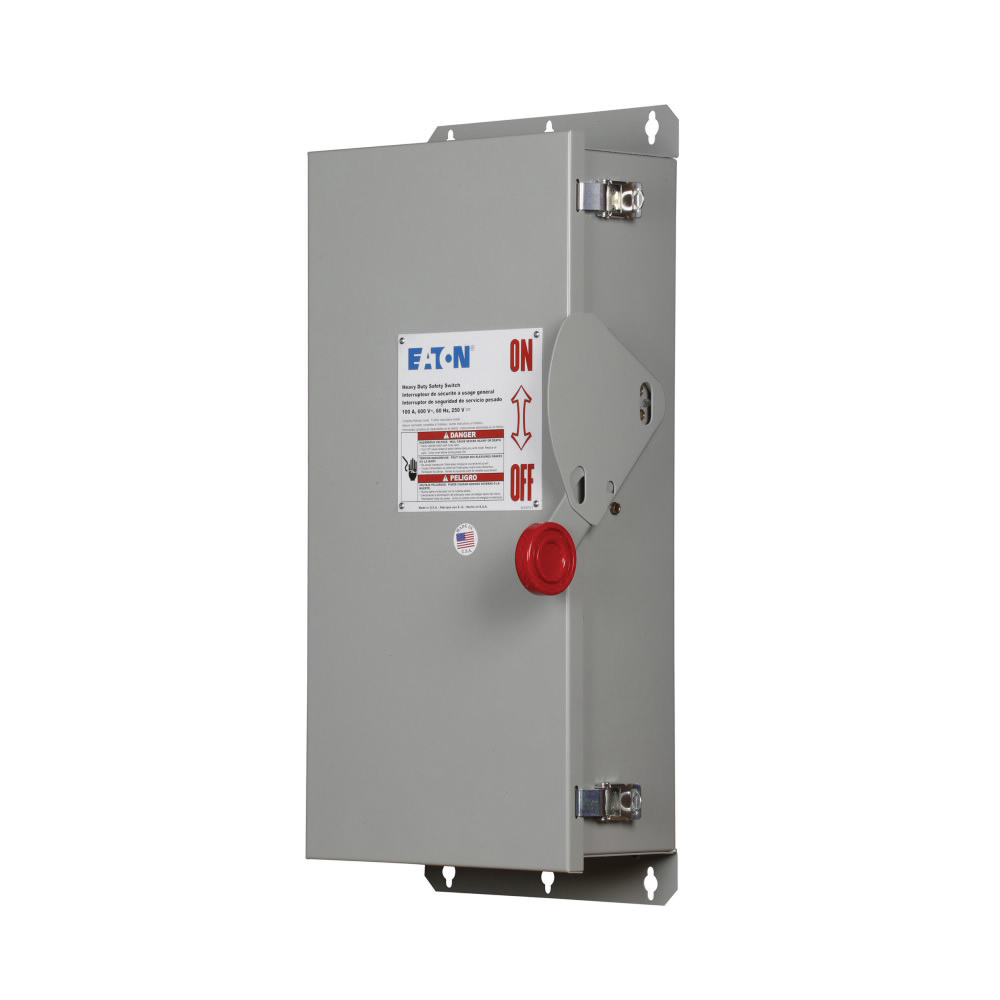

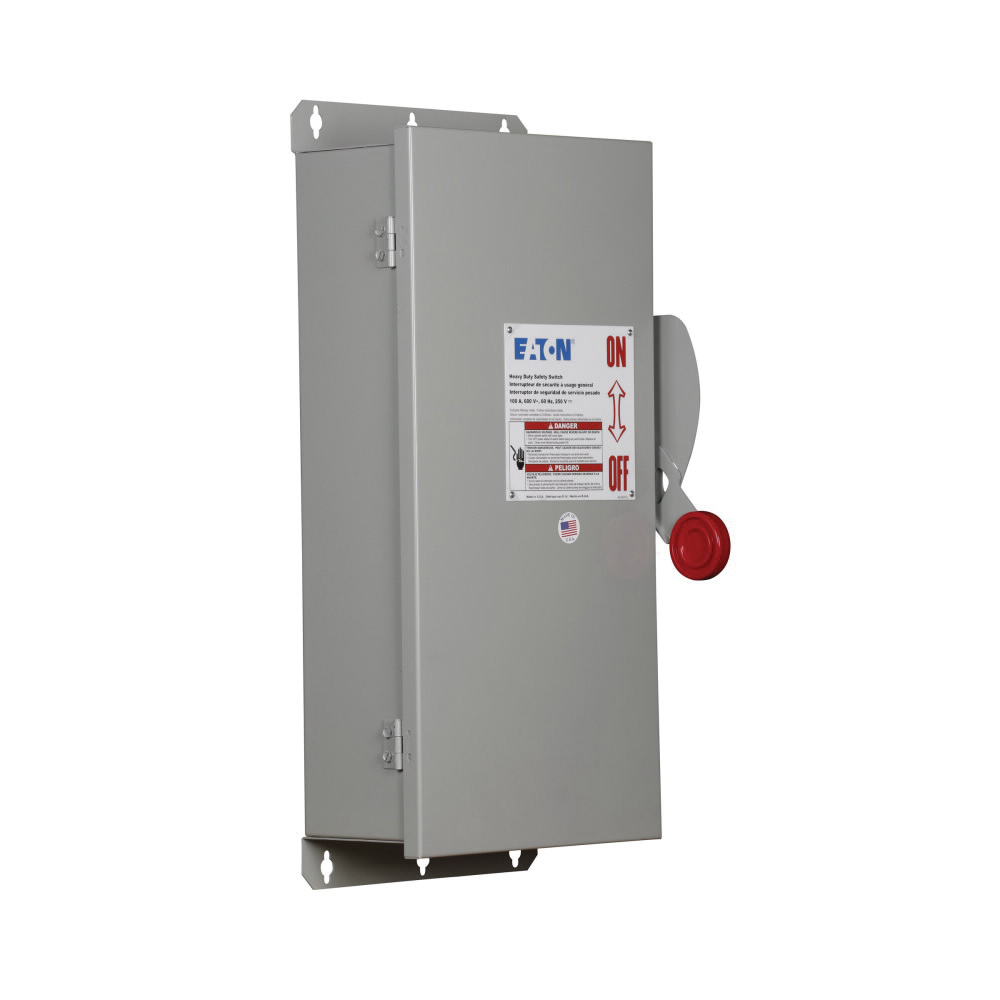

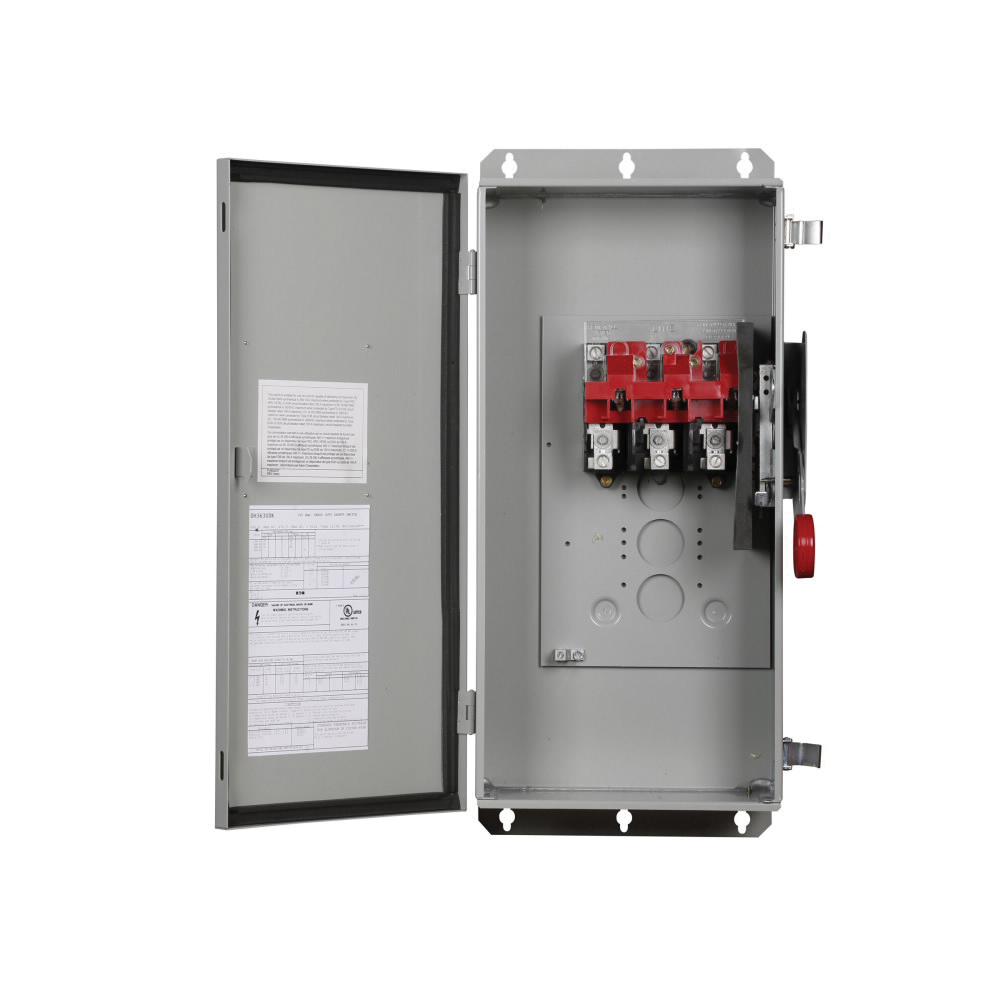

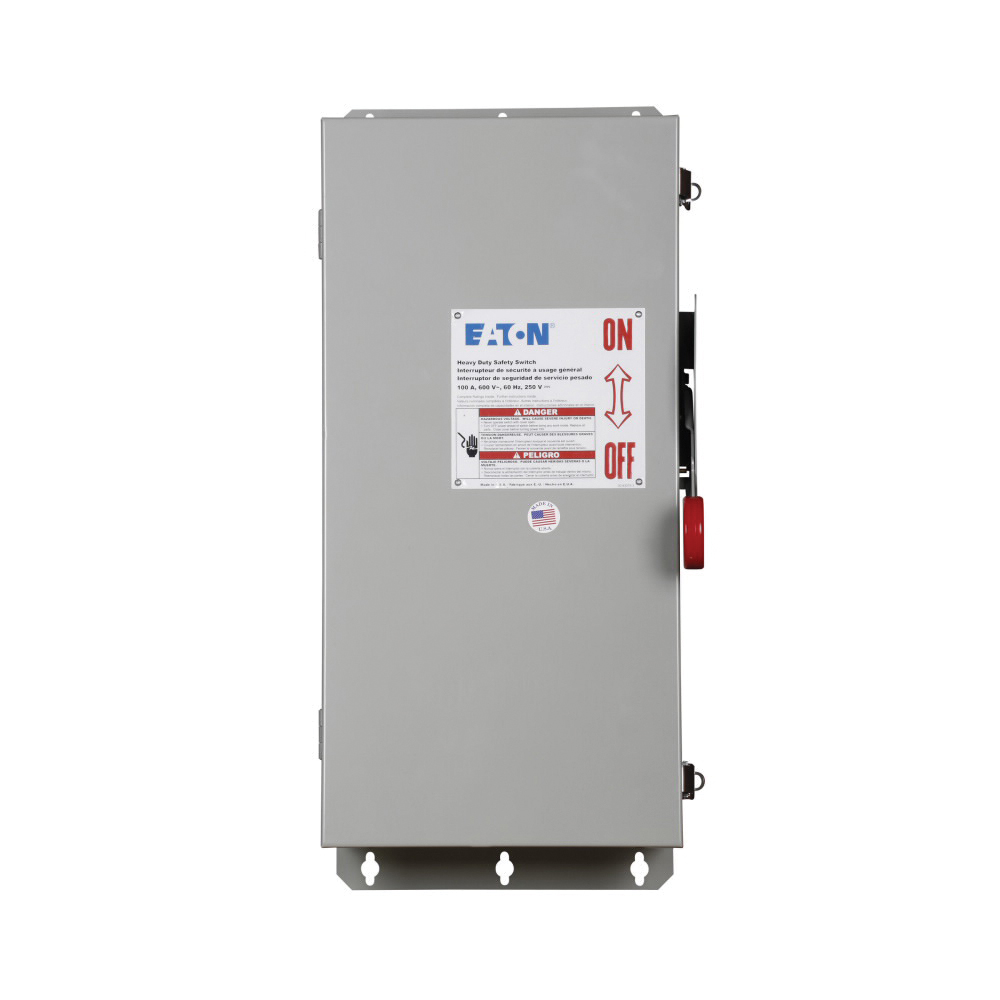

Cutler-Hammer DH363UDK Single-Throw Non-Fused Safety Switch

Cutler-Hammer DH363UDK Single-Throw Non-Fused Safety Switch, Heavy Duty Rating, 600 V, 100 A, 1 or 3 ph -Phase, 3 -Pole

Cutler-Hammer DH363UDK Single-Throw Non-Fused Safety Switch, Heavy Duty Rating, 600 V, 100 A, 1 or 3 ph -Phase, 3 -Pole DH363UDK

Cutler-Hammer Single-Throw Non-Fused Safety Switch, Duty Rating: Heavy, 600 V, 100 A, 1 or 3 ph Phase, 3 Poles, 20 hp, 40 hp, 50 hp, 40 hp, 75 hp, 100 hp, 3 Wires, NEMA 12 Enclosure, Steel, Galvanized/Painted, 10.22 in L x 11.79 in W x 24.95 in H

Amperage Rating      :      100 A
Dimensions      :      10.22 in L x 11.79 in W x 24.95 in H
Duty Rating      :      Heavy
Enclosure Type      :      NEMA 12
Finish      :      Galvanized/Painted
HP Rating      :      20 hp, 40 hp, 50 hp, 40 hp, 75 hp, 100 hp
Material      :      Steel
Number of Poles      :      3
Number of Wires      :      3
Phase      :      1 or 3 ph
Voltage Rating      :      600 V
  • Suitable for service entrance use with a neutral or ground lug kit installed
  • Can be field modified to meet NEMA 3R rainproof requirements when a factory provided drain hole is opened
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_DH363UDK_Specification_Sheet.pdf
