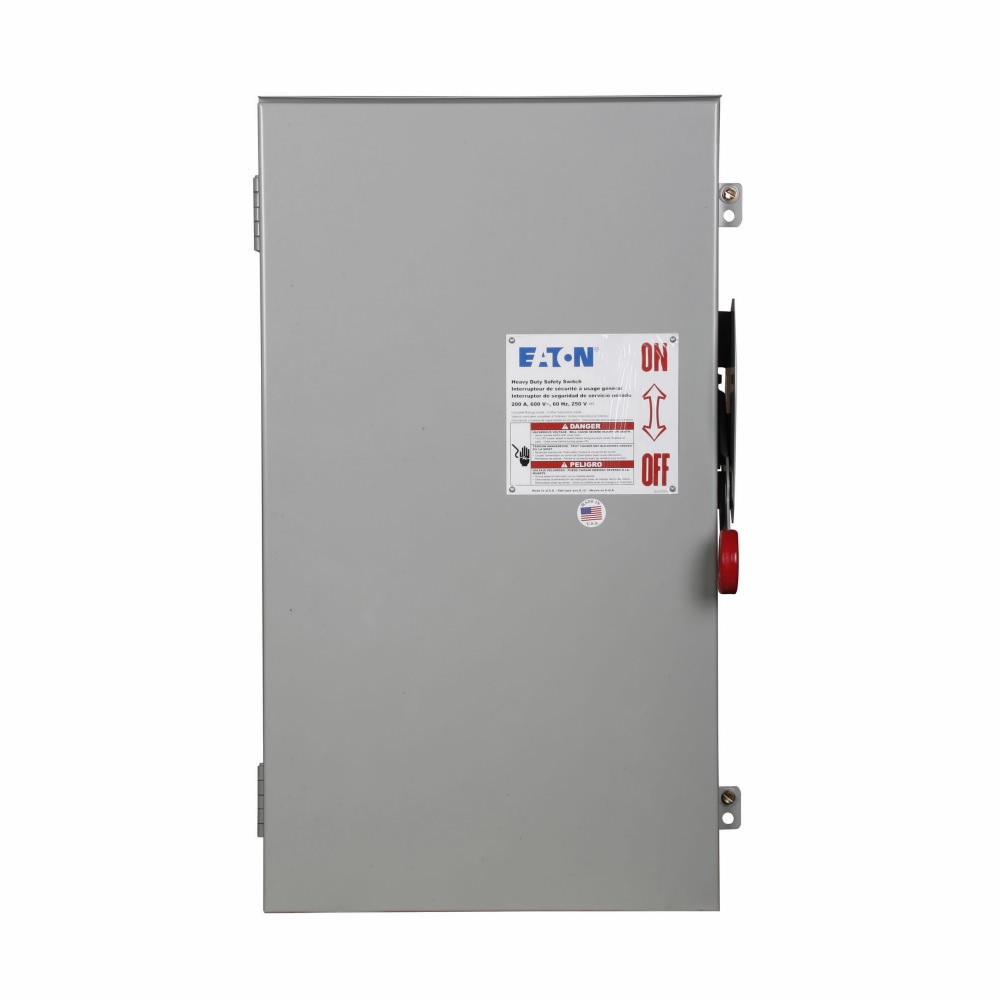

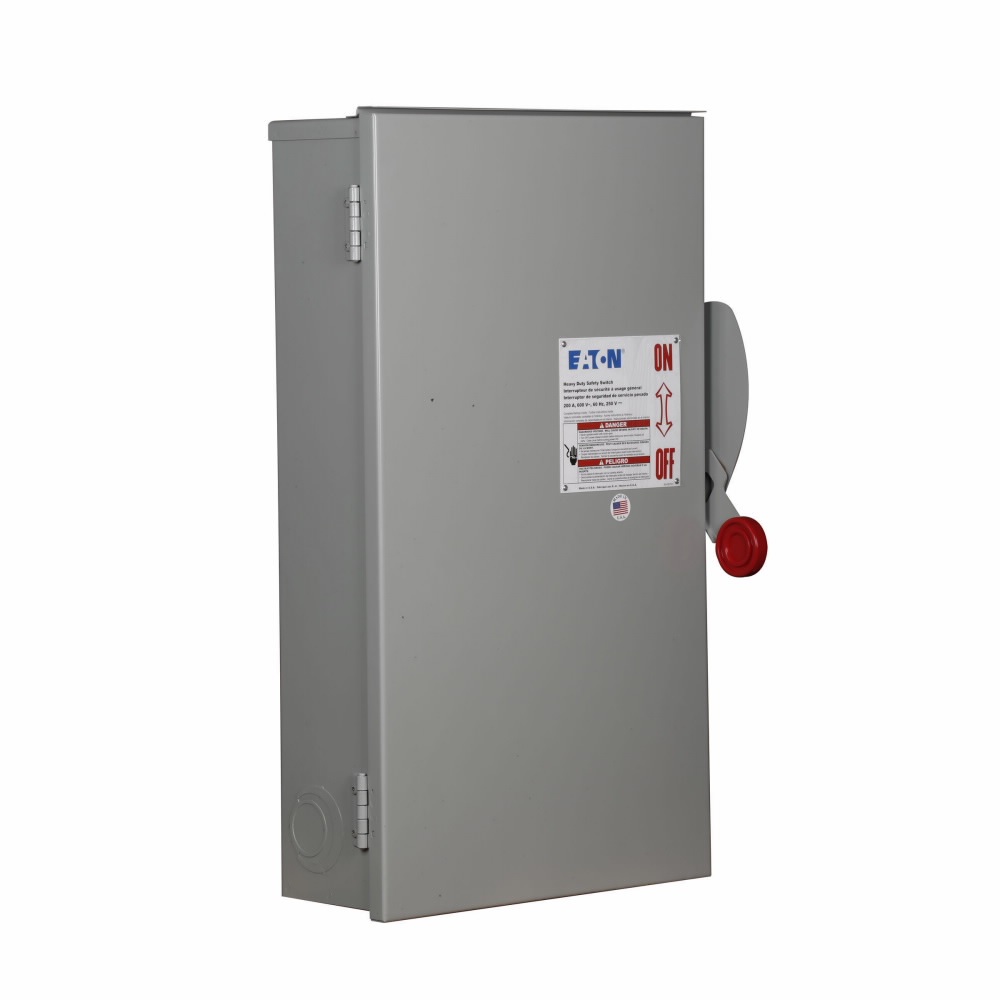

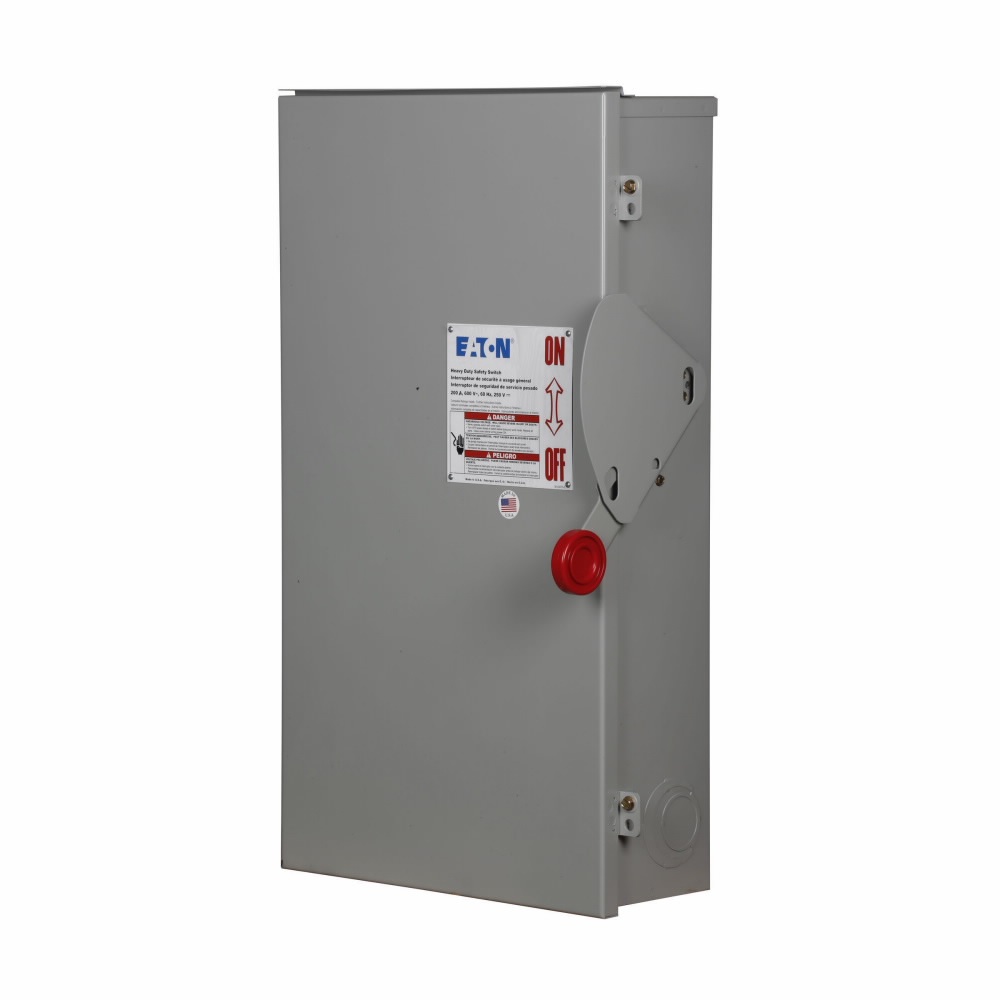

Cutler-Hammer DH364URK Safety Switch

Cutler-Hammer Safety Switch, 240/480/600 VAC/250 VDC, 200 A, 1 ph, 3 ph, 3 Pole, HP Rating: 150 hp, TPST, Disconnect Type: Non-Fusible, 3 Wires, NEMA 3R, IP Rating: IP14, Surface Mount, Steel, Galvanized/Painted, 11.25 in L x 16 in W x 27.63 in H

• Suitable for service entrance use with a neutral or ground lug kit installed
• Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life

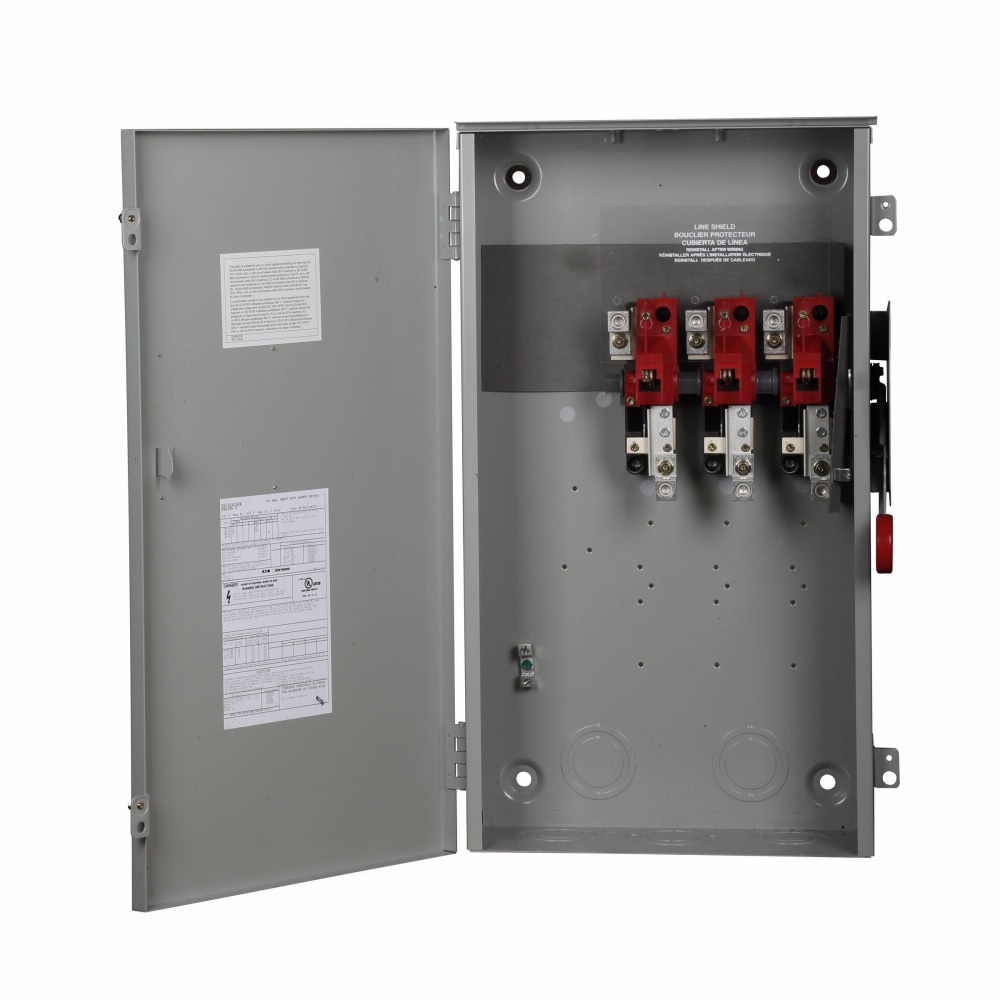

• Protects against accidental contact with energized parts, probe holes enable the user to test if the line side is energized without removing the shield
• The position (on or off) can be clearly seen from a distance and the length provides for easy operation
• Personnel safety feature because the large hasp can accommodate up to three 3/8 in shank locks
• Cabinet door can be further padlocked at the top and bottom as applicable
• Door cannot be opened when the handle is in the on position, front and side operable defeater mechanism provides for user access when necessary on single throw switches
• An ample number are provided on the top, bottom and sides of both NEMA types 1 and 3R enclosures through 200 A
• Bolt-on hub kit for switches in a NEMA type 3R, 30 to 200 A

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_DH366NRK_Catalog.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_DH364URK_Specification_Sheet.pdf
