Cutler-Hammer DH366NRK DH366NRK

Cutler-Hammer DH366NRK Safety Switch

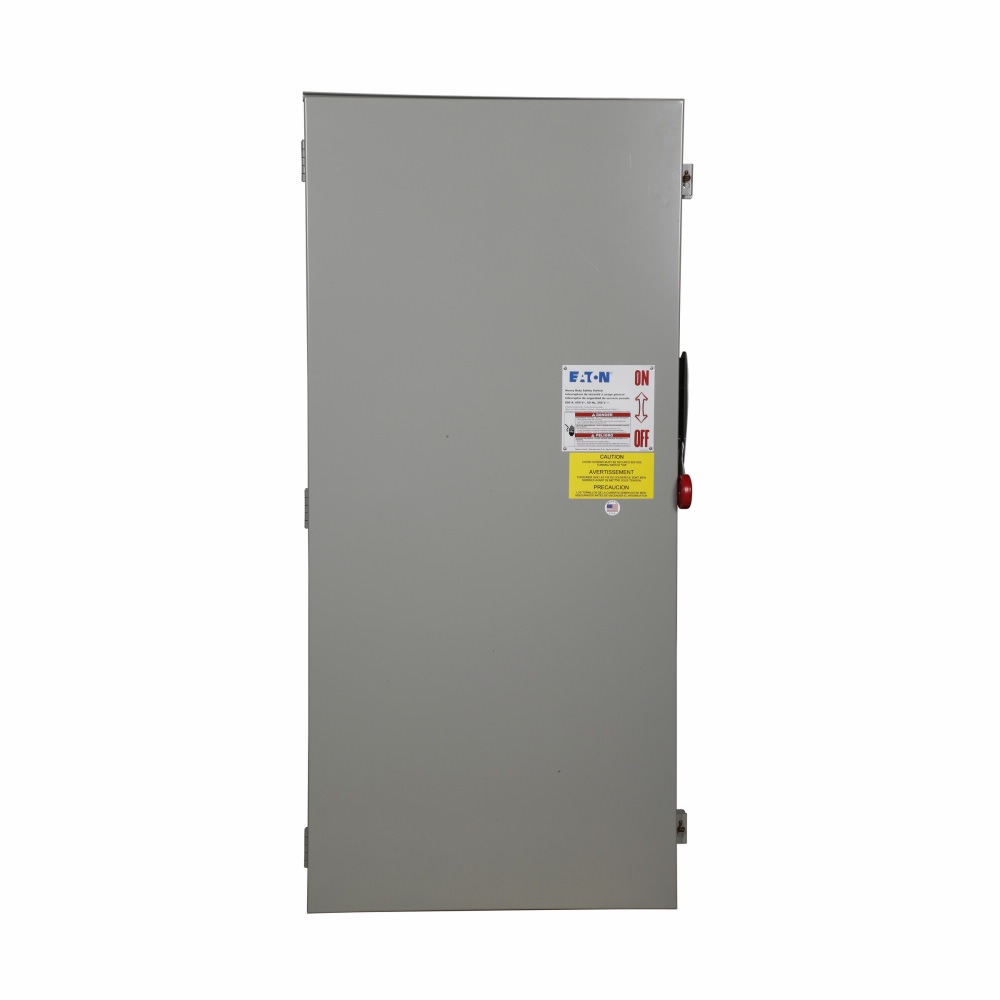

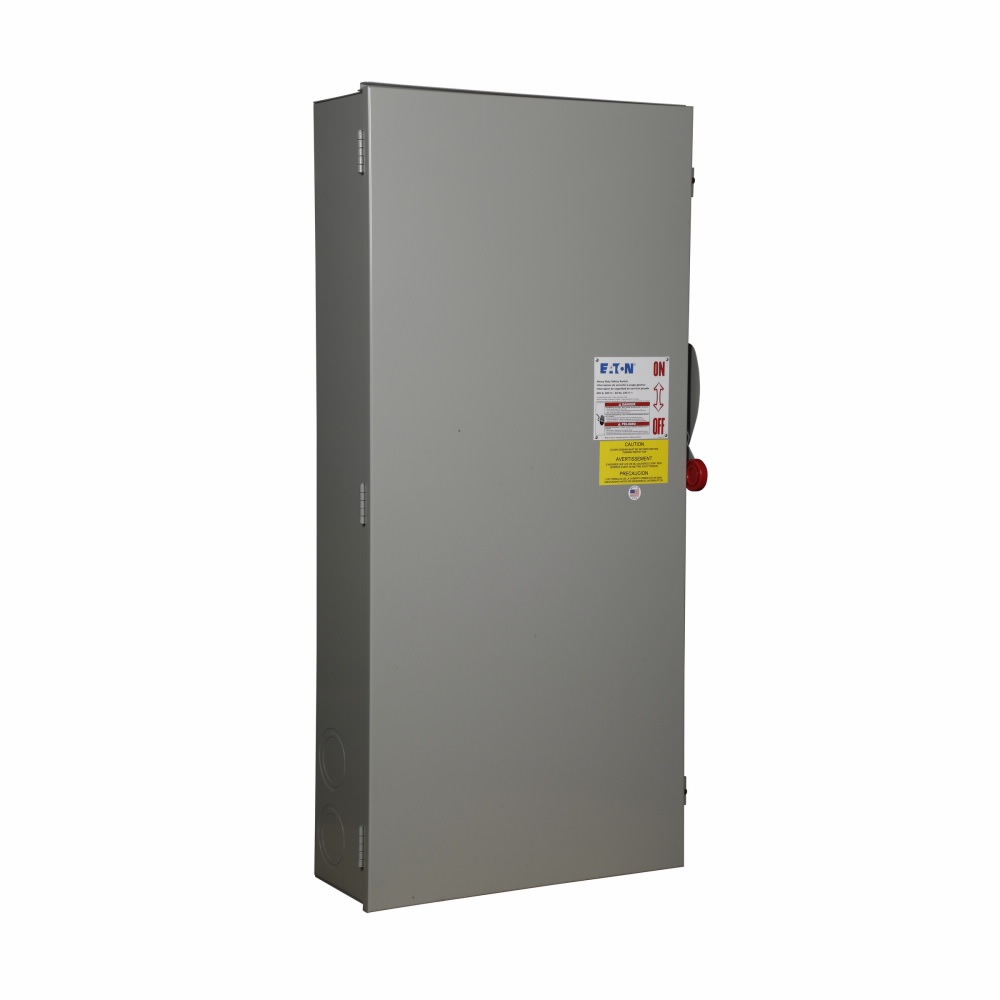

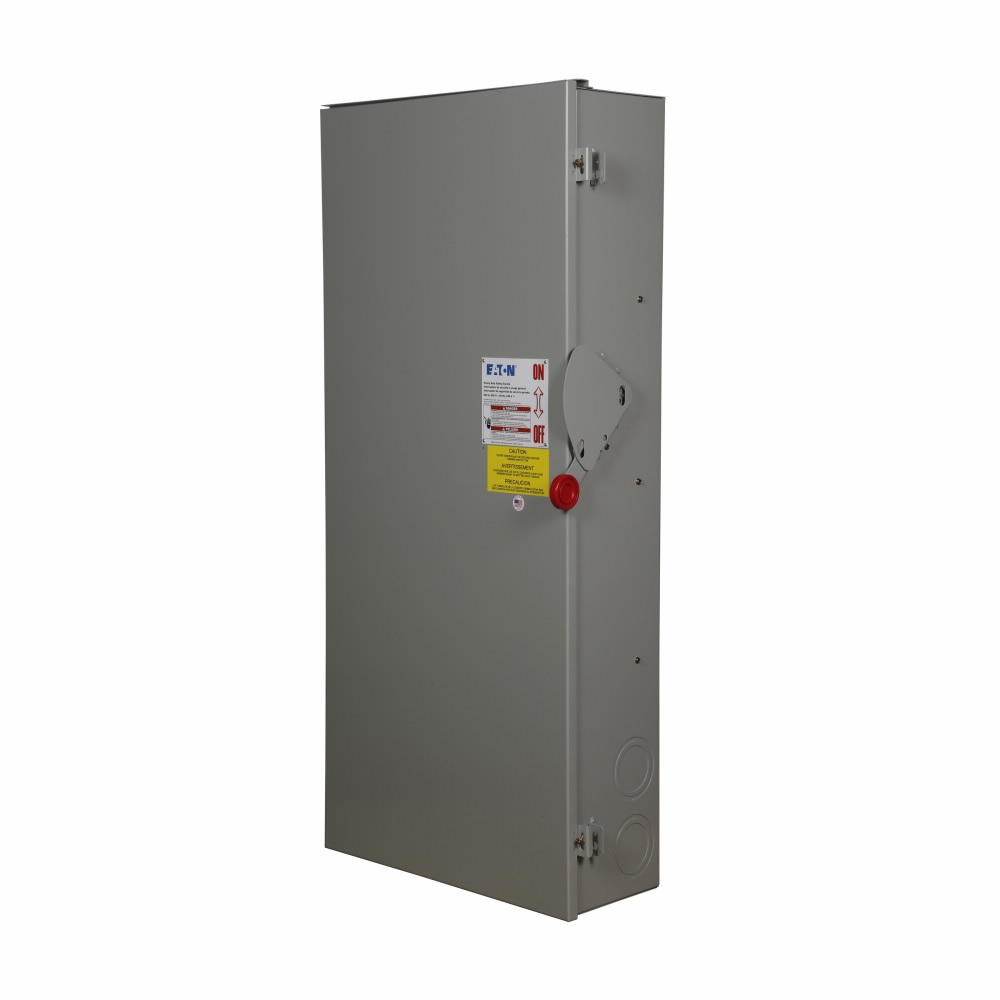

Cutler-Hammer DH366NRK Safety Switch, 480/600 VAC, 600 A, 3-Phase, 3-Pole, 500 hp, 4-Wire, NEMA 3R Enclosure

Cutler-Hammer DH366NRK Safety Switch, 480/600 VAC, 600 A, 3-Phase, 3-Pole, 500 hp, 4-Wire, NEMA 3R Enclosure DH366NRK

Cutler-Hammer Safety Switch, 480/600 VAC, 600 A, 3 ph, 3 Pole, HP Rating: 500 hp, TPST, Disconnect Type: Fusible, With Neutral With Neutral/Without Neutral, 4 Wires, NEMA 3R, Surface Mount, Steel, Galvanized/Painted, 12 in L x 27-1/2 in W x 58 in H

Amperage Rating      :      600 A
Contact Configuration      :      TPST
Dimensions      :      12 in L x 27-1/2 in W x 58 in H
Disconnect Type      :      Fusible
Enclosure Type      :      NEMA 3R
Finish      :      Galvanized/Painted
HP Rating      :      500 hp
Material      :      Steel
Mounting Type      :      Surface
Number of Poles      :      3
Number of Wires      :      4
Phase      :      3 ph
Voltage Rating      :      480/600 VAC
With Neutral/Without Neutral      :      With Neutral
  • Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life

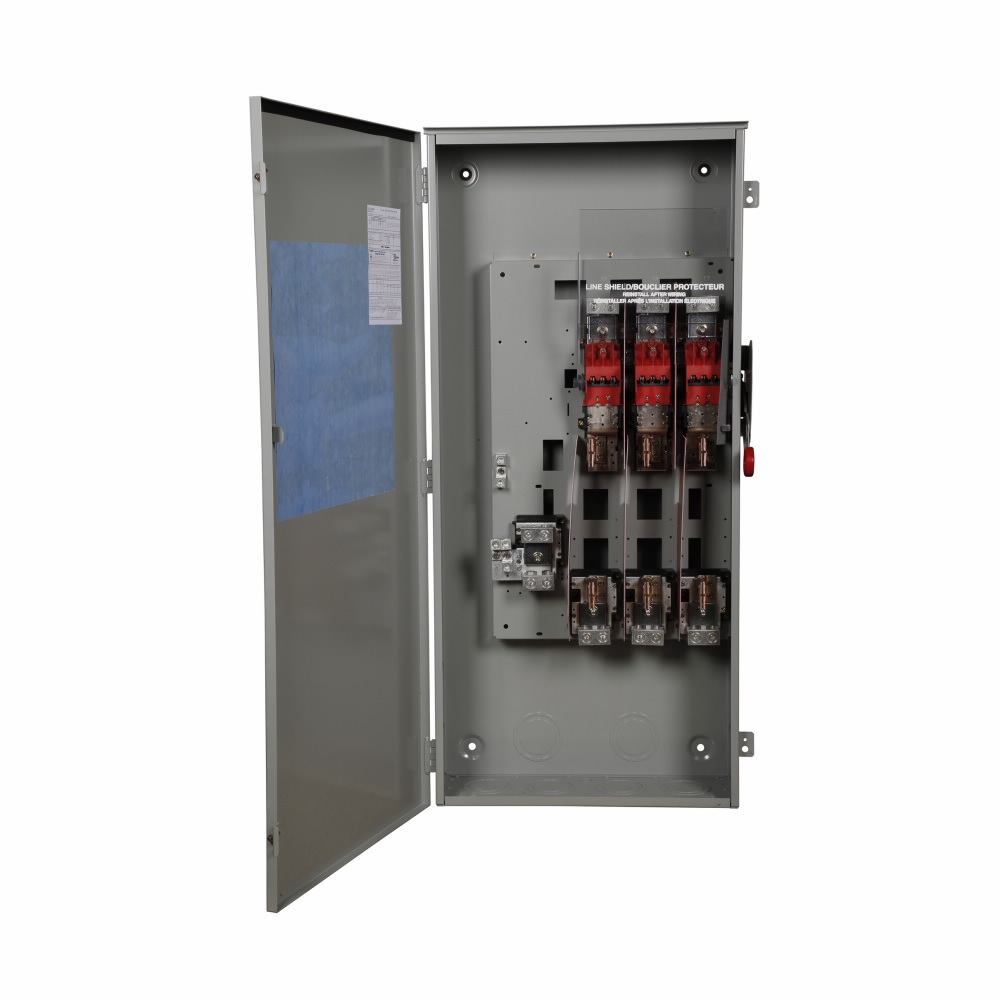

  • Protects against accidental contact with energized parts, probe holes enable the user to test if the line side is energized without removing the shield
  • The position (on or off) can be clearly seen from a distance and the length provides for easy operation
  • Personnel safety feature because the large hasp can accommodate up to three 3/8 in shank locks
  • Cabinet door can be further padlocked at the top and bottom as applicable
  • Door cannot be opened when the handle is in the on position, front and side operable defeater mechanism provides for user access when necessary on single throw switches
  • An ample number are provided on the top, bottom and sides of both NEMA types 1 and 3R enclosures through 200 A
  • Bolt-on hub kit for switches in a NEMA type 3R, 30 to 200 A
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_DH366NRK_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_DH366NRK_Specification_Sheet.pdf
