Cutler-Hammer E34N1 E34N1

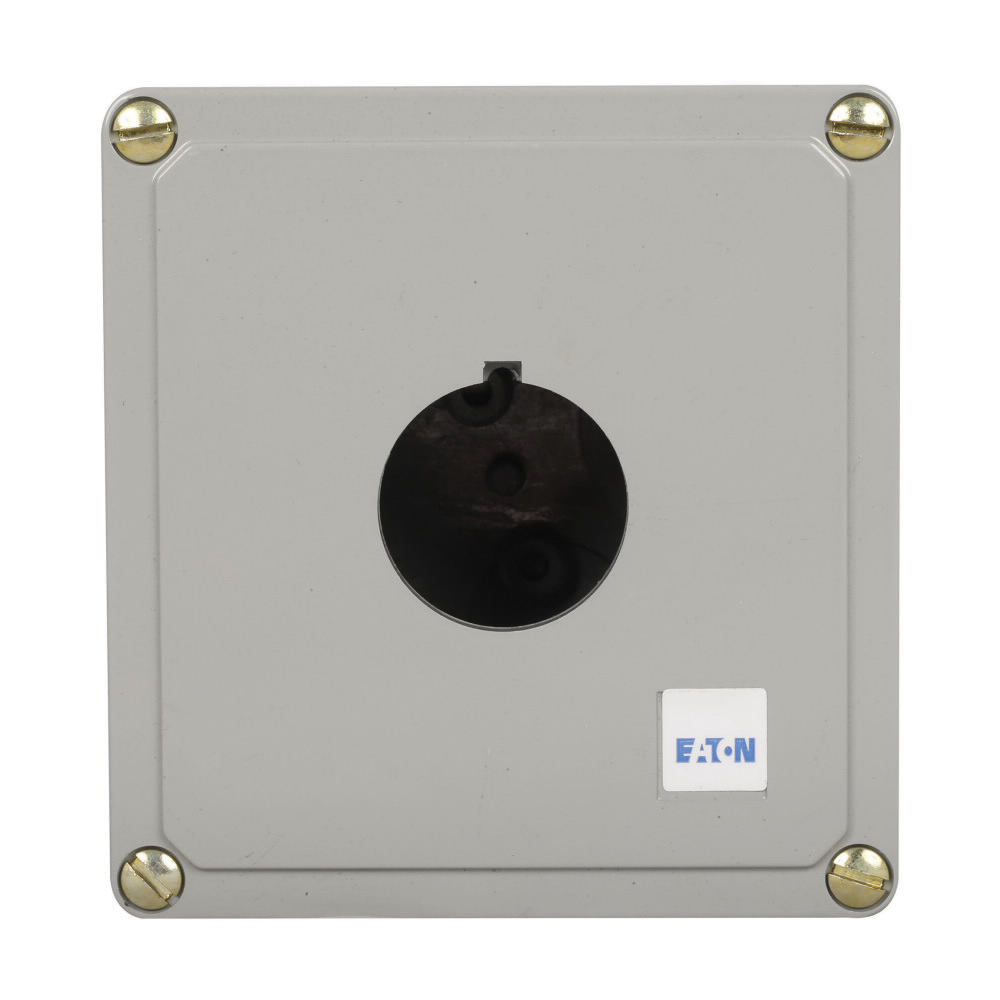

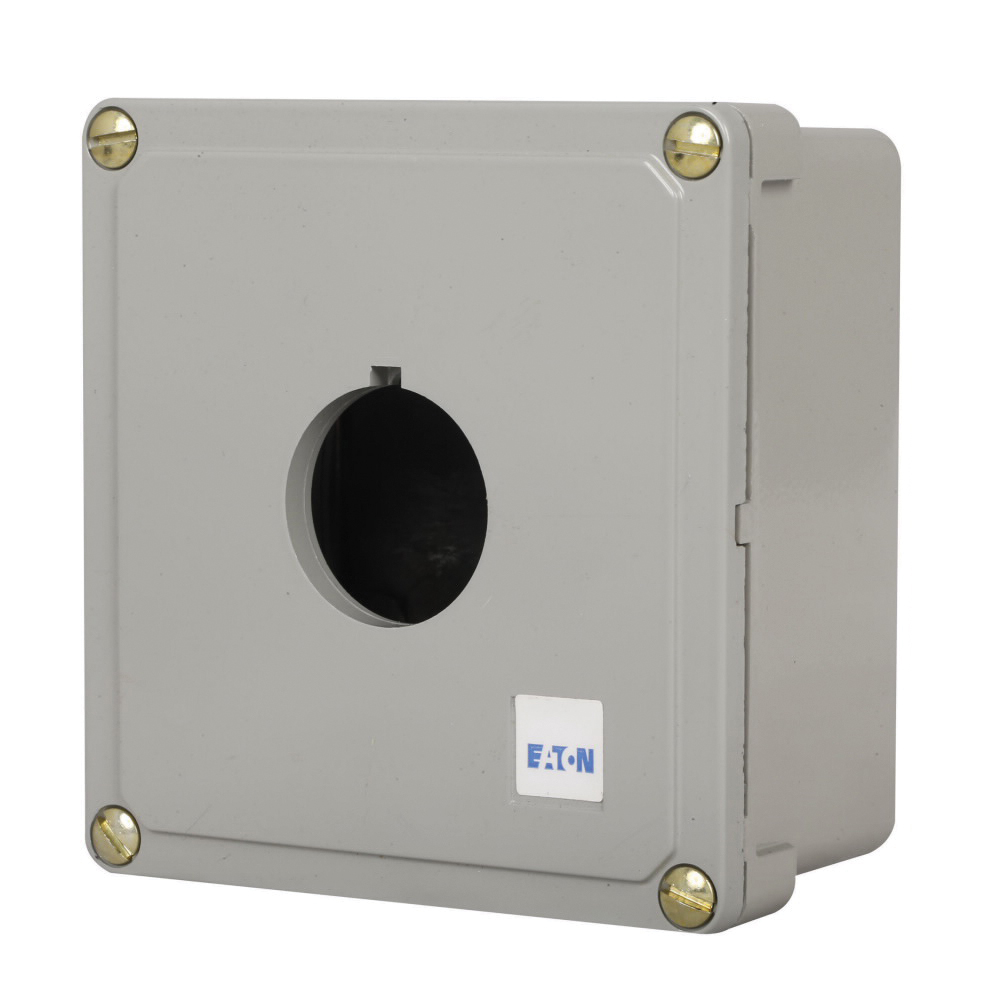

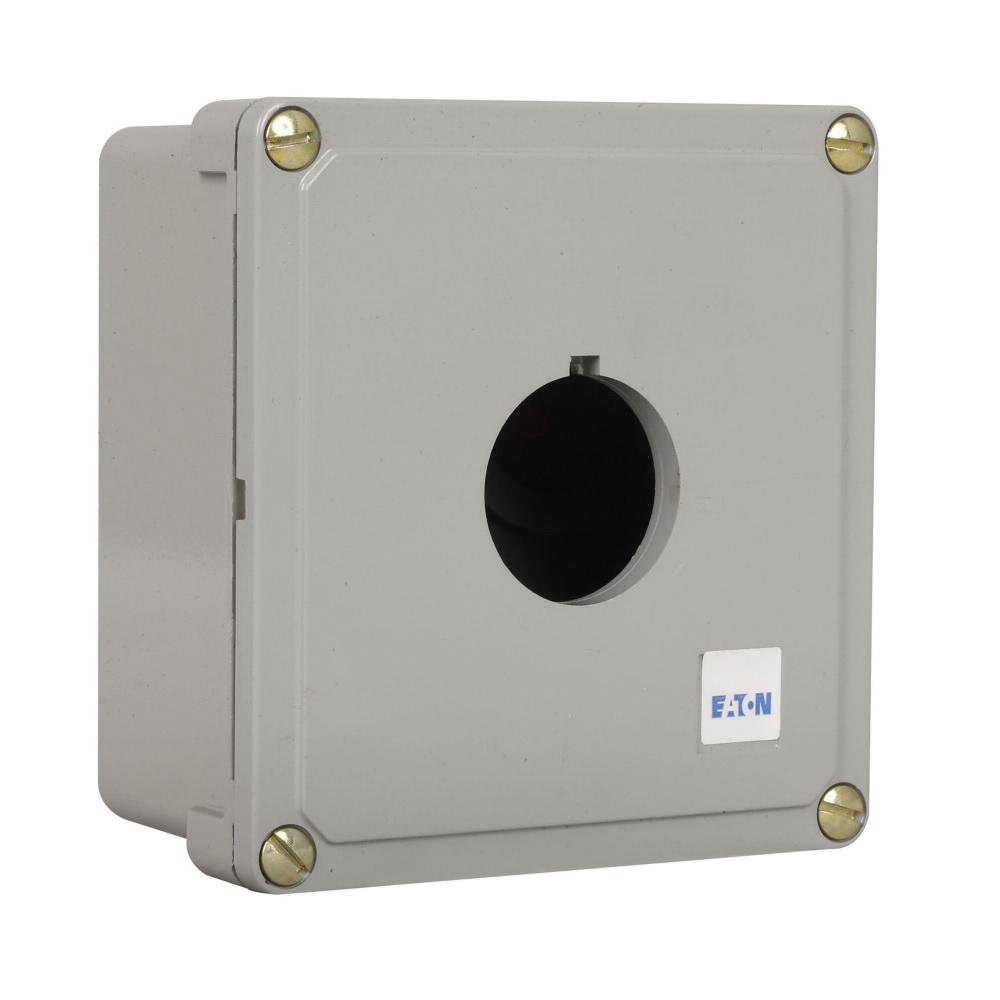

Cutler-Hammer E34N1 Heavy-Duty Pushbutton Enclosure

Cutler-Hammer NZM Series E34N1 Heavy-Duty Pushbutton Enclosure, 5.8 in D, 4.1 in W, NEMA 12/13/4X/4 Enclosure

Cutler-Hammer NZM Series E34N1 Heavy-Duty Pushbutton Enclosure, 5.8 in D, 4.1 in W, NEMA 12/13/4X/4 Enclosure E34N1

Use NEMA 4X 10250T operators where exposed to ultraviolet light. All cast enclosures can be converted to base mounting of contact blocks. When used with E30 Pushbuttons, only the one element enclosure can be used.

Additional Information      :      1-Element, Die-Cast Zinc Bus, 30.5 mm Size
Depth      :      5.8 in
Enclosure Type      :      NEMA 12/13/4X/4
Height      :      3.8 in
Mounting Type      :      Surface
Series      :      NZM Series
Width      :      4.1 in
  • Corrosion-resistant watertight/oiltight
  • EATON® series NZM molded case circuit breaker accessories and terminals, remote operator
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_10250TC59_Catalog.pdf
