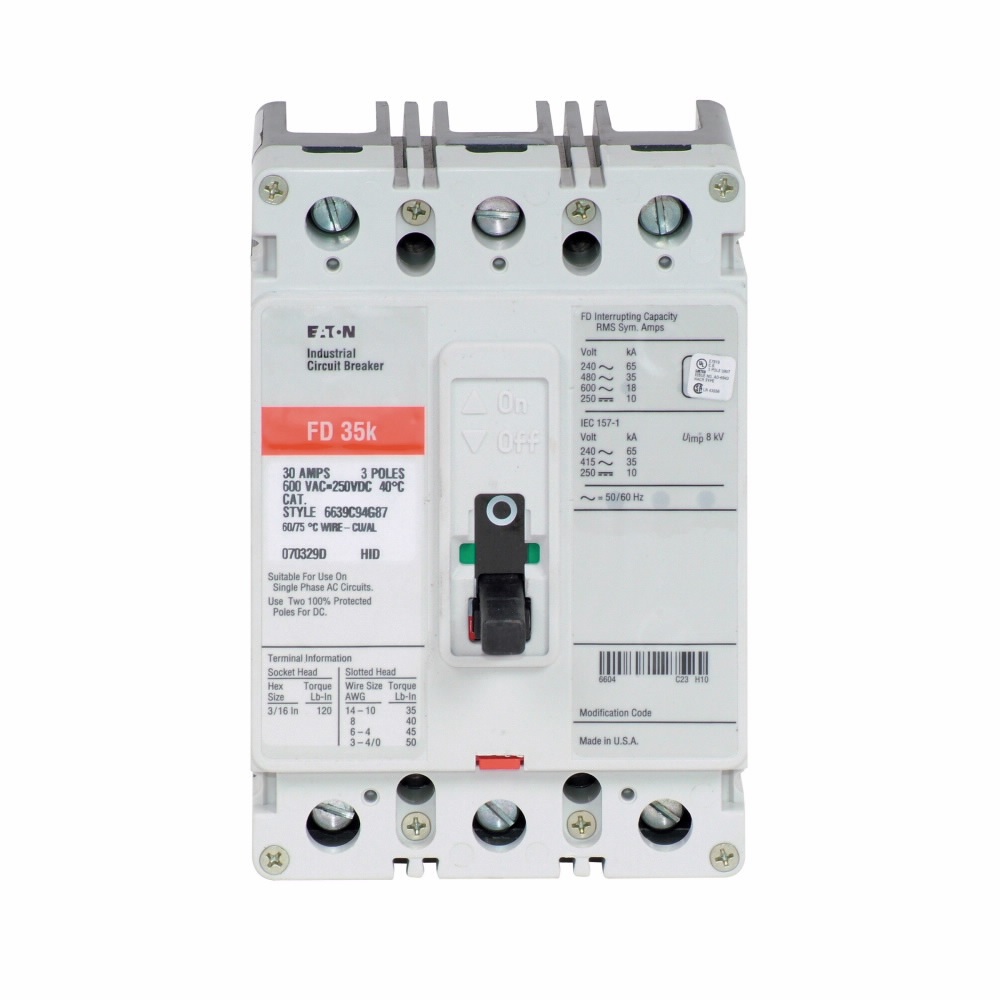

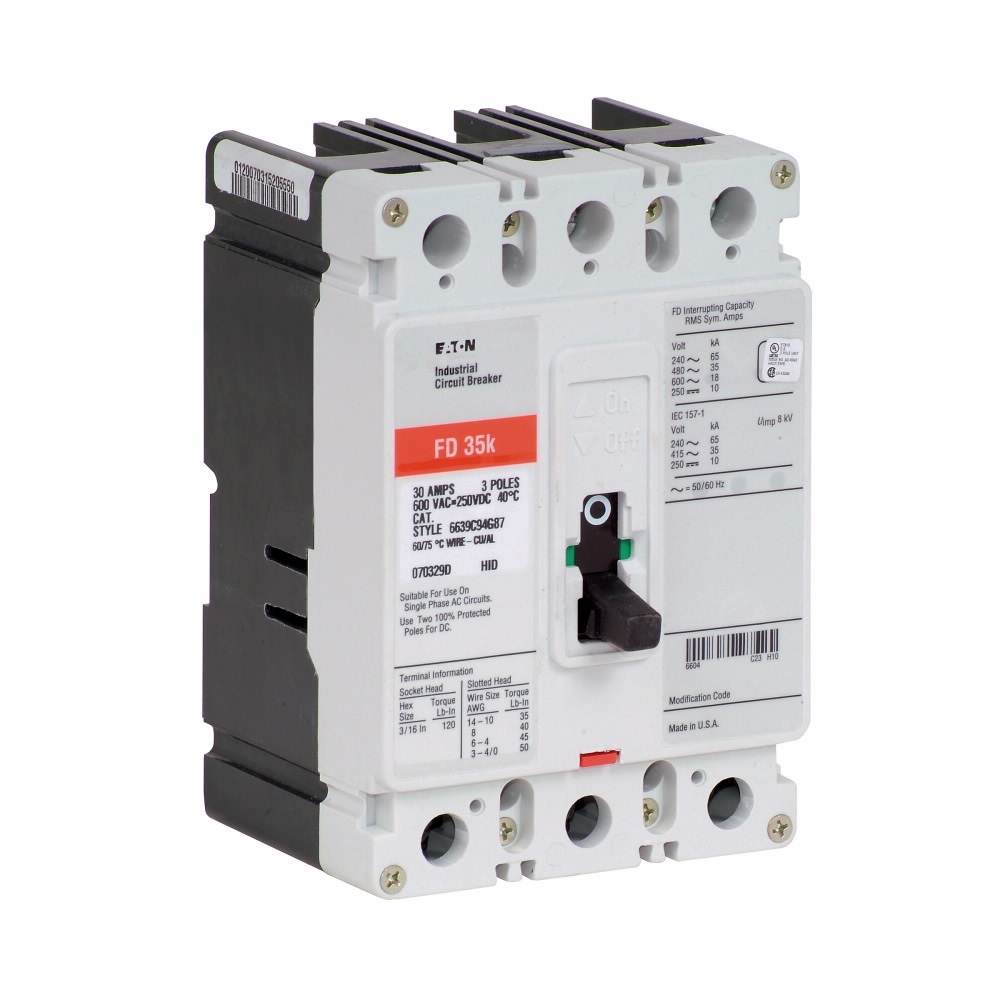

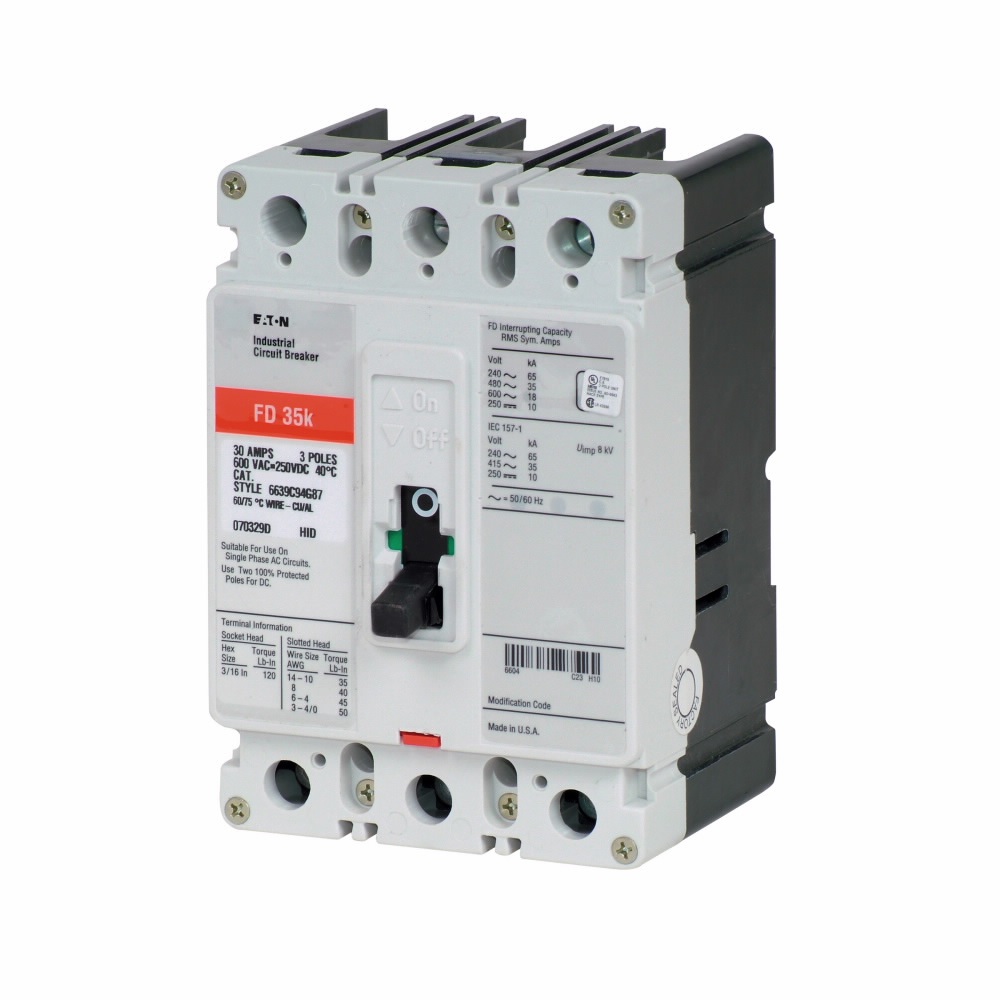

Cutler-Hammer FD3100 Molded Case Circuit Breaker

Cutler-Hammer C Series FD3100 Molded Case Circuit Breaker, 600 VAC/250 VDC, 100 A, 35 kA, 65 kA Interrupt, 3-Pole

Cutler-Hammer C Series FD3100 Molded Case Circuit Breaker, 600 VAC/250 VDC, 100 A, 35 kA, 65 kA Interrupt, 3-Pole FD3100

Cutler-Hammer Molded Case Circuit Breaker, C Series, 100 A, 600 VAC/250 VDC, 50/60 Hz, 35 kA, 65 kA Interrupt Rating, 3 Poles, 3 ph Phase, F Frame, Fixed Thermal, Fixed Magnetic Trip, Load Lug Terminal, Handle Actuator, 14 to 1/0 AWG Wire, Bolt-On Mounting, 40 deg C, 4.13 in Width, 3.38 in Length, 6 in Height

Actuator Type      :      Handle
Amperage Rating      :      100 A
Frame Type      :      F
Frequency Rating      :      50/60 Hz
Height      :      6 in
Interrupt Rating      :      35 kA, 65 kA
Length      :      3.38 in
Mounting Type      :      Bolt-On
Number of Poles      :      3
Phase      :      3 ph
Series      :      C Series
Temperature Rating      :      40 deg C
Terminal Type      :      Load Lug
Trip Type      :      Fixed Thermal, Fixed Magnetic
Voltage Rating      :      600 VAC/250 VDC
Width      :      4.13 in
Wire Size      :      14 to 1/0 AWG
