Cutler-Hammer FDB3125LM04S08 FDB3125LM04S08

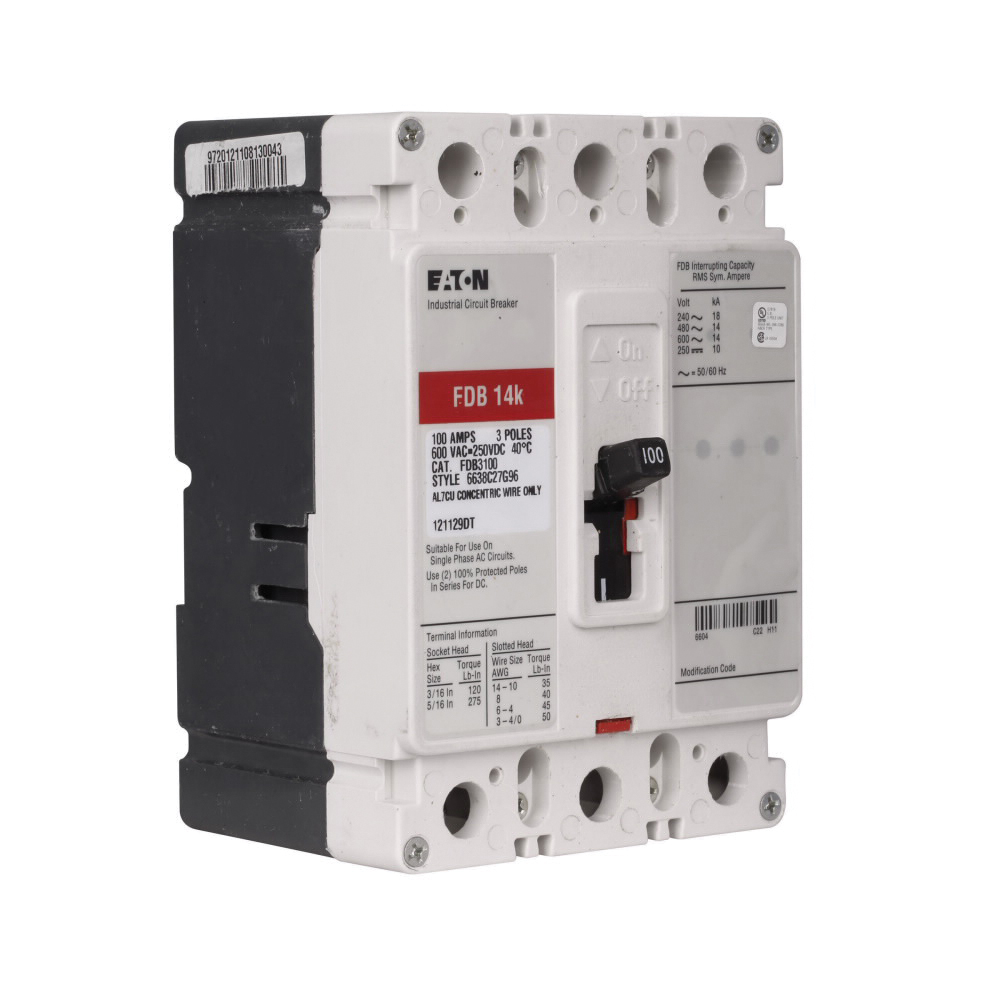

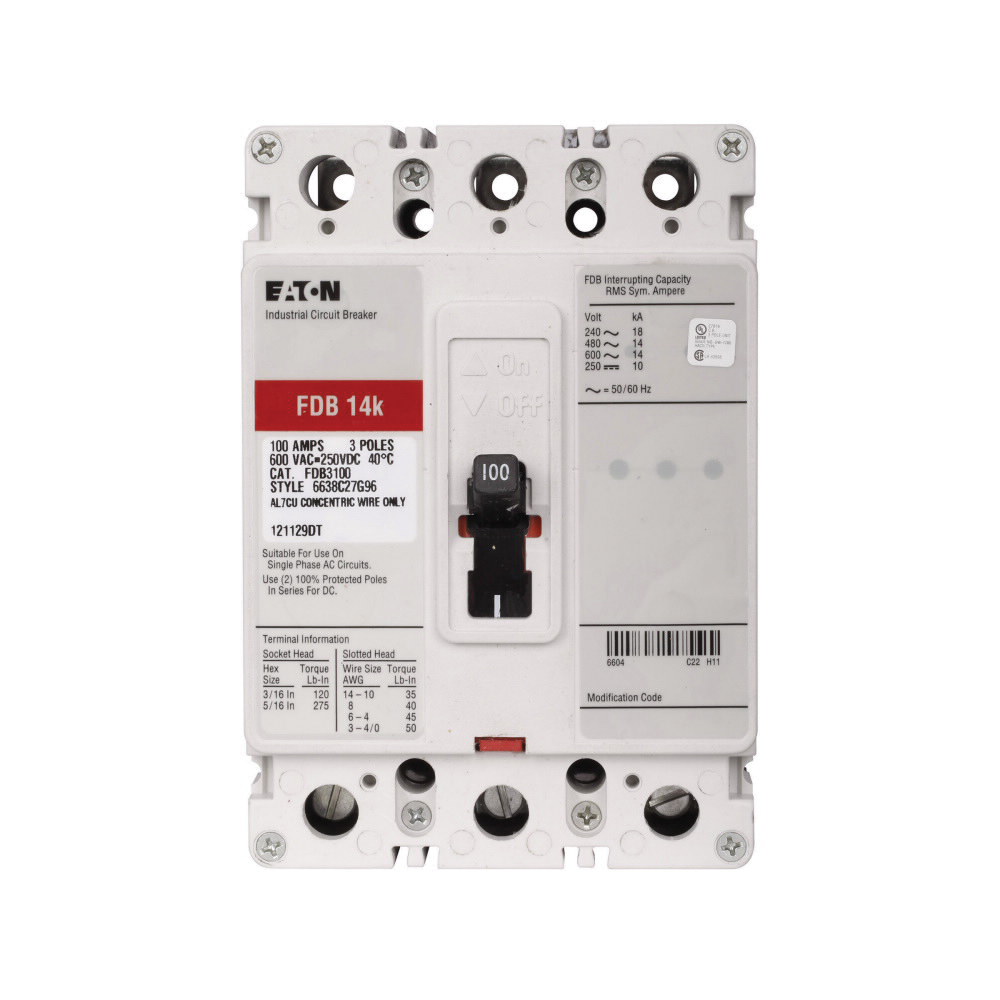

Cutler-Hammer FDB3125LM04S08 Type FDB Molded Case Circuit Breaker

Cutler-Hammer FDB3125LM04S08 Type FDB Molded Case Circuit Breaker, 600 VAC/250 VDC, 125 A, 14 kA Interrupt, 3-Pole

Cutler-Hammer FDB3125LM04S08 Type FDB Molded Case Circuit Breaker, 600 VAC/250 VDC, 125 A, 14 kA Interrupt, 3-Pole FDB3125LM04S08

Cutler-Hammer Type FDB Molded Case Circuit Breaker, 125 A, 600 VAC/250 VDC, 14 kA Interrupt Rating, 3 Poles, F Frame, Fixed Thermal, Fixed Magnetic Trip, Line and Load Lug Terminal, 4.13 in Width, 3.38 in Length, 4.13 in Height

Amperage Rating      :      125 A
Frame Type      :      F
Height      :      4.13 in
Interrupt Rating      :      14 kA
Length      :      3.38 in
Number of Poles      :      3
Terminal Type      :      Line and Load Lug
Trip Type      :      Fixed Thermal, Fixed Magnetic
Voltage Rating      :      600 VAC/250 VDC
Width      :      4.13 in
  • Three or four-pole imperial mount base
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_FDB3125LM04S08_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_FDB3125LM04S08_Line_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_FDB3125LM04S08_Specification_Sheet.pdf
