Cutler-Hammer HKD3200 HKD3200

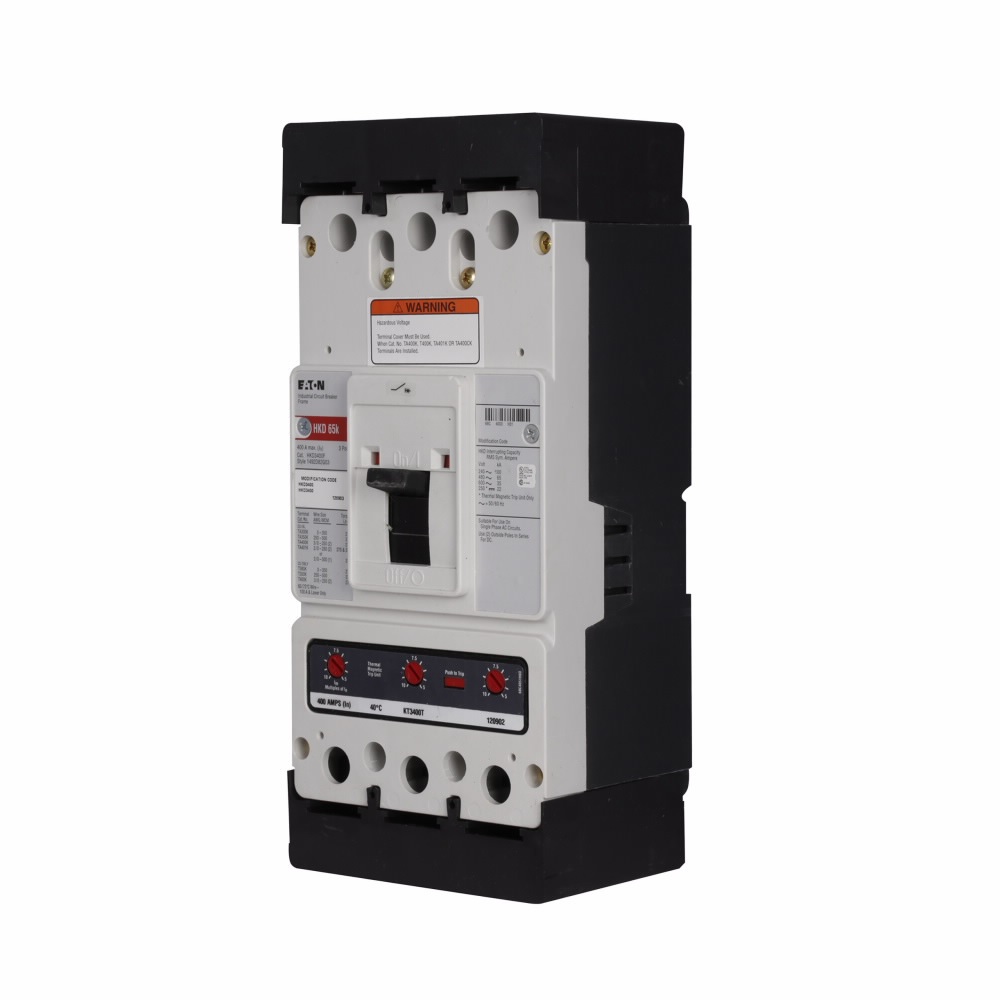

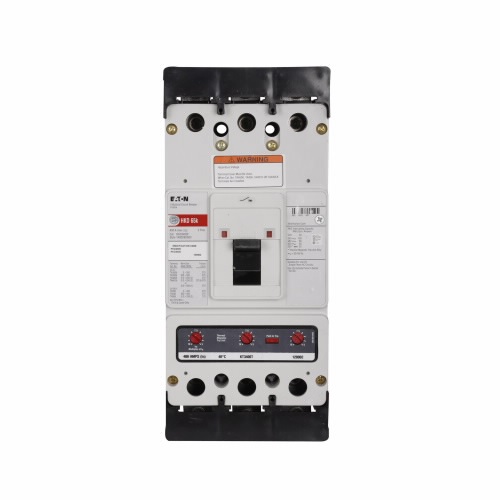

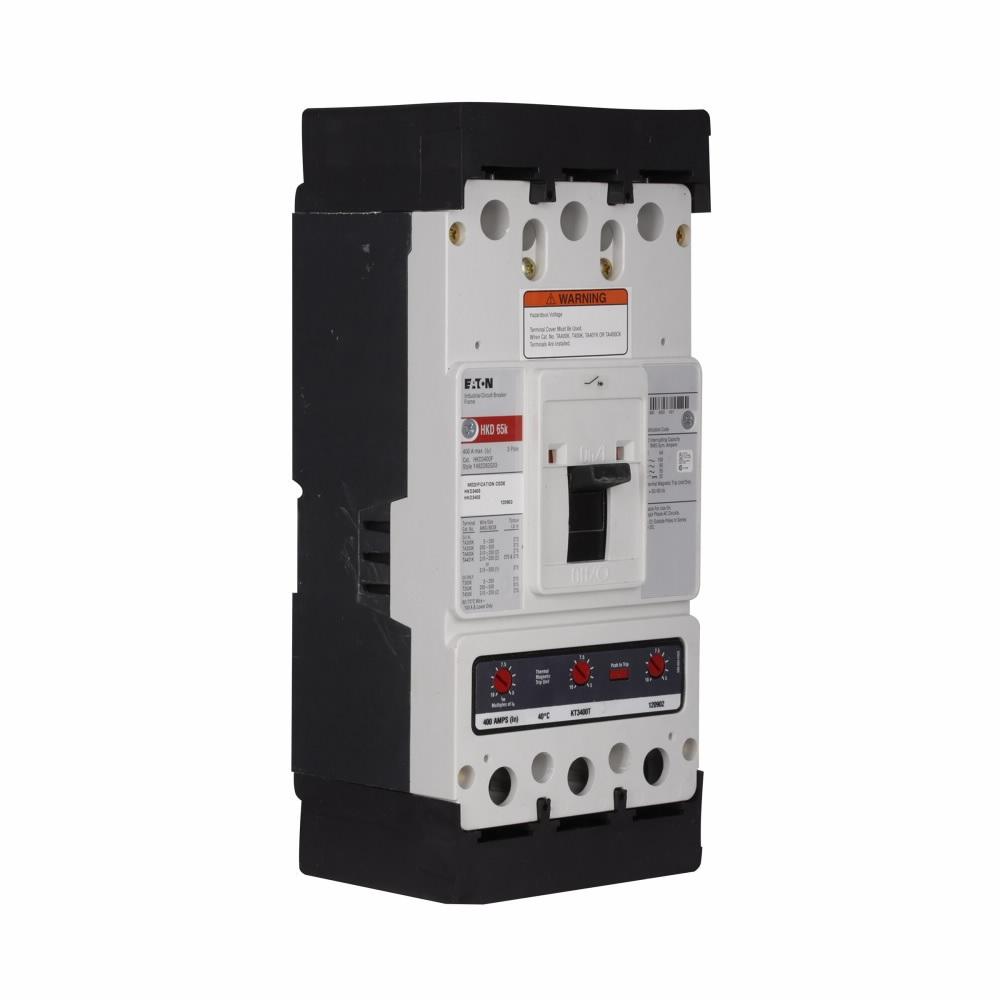

Cutler-Hammer HKD3200 HKD Molded Case Circuit Breaker

Cutler-Hammer C Series HKD3200 HKD Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 65 kA, 100 kA Interrupt

Cutler-Hammer C Series HKD3200 HKD Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 65 kA, 100 kA Interrupt HKD3200

Cutler-Hammer HKD Molded Case Circuit Breaker, C Series, 200 A, 600 VAC/250 VDC, 50/60 Hz, 65 kA, 100 kA Interrupt Rating, 3 Poles, 3 ph Phase, Feed-Thru Connection, K Frame, Fixed Thermal, Fixed Magnetic Trip, Line and Load Lug Terminal, 3 AWG to 350 kcmil Wire, 40 deg C, Aluminum Terminal, 5-1/2 in Width, 4.1 in Length, 5-1/2 in Height

Amperage Rating      :      200 A
Connection Type      :      Feed-Thru
Frame Type      :      K
Frequency Rating      :      50/60 Hz
Height      :      5-1/2 in
Interrupt Rating      :      65 kA, 100 kA
Length      :      4.1 in
Number of Poles      :      3
Phase      :      3 ph
Series      :      C Series
Temperature Rating      :      40 deg C
Terminal Material      :      Aluminum
Terminal Type      :      Line and Load Lug
Trip Type      :      Fixed Thermal, Fixed Magnetic
Voltage Rating      :      600 VAC/250 VDC
Width      :      5-1/2 in
Wire Size      :      3 AWG to 350 kcmil
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_HFD3080_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_HFD3080_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_HFD3080_Instruction_Installation_Manual.pdf
  • videoVideo Link https://www.youtube.com/watch?v=ZBPV2r7VTgw
