Cutler-Hammer JT3225T JT3225T

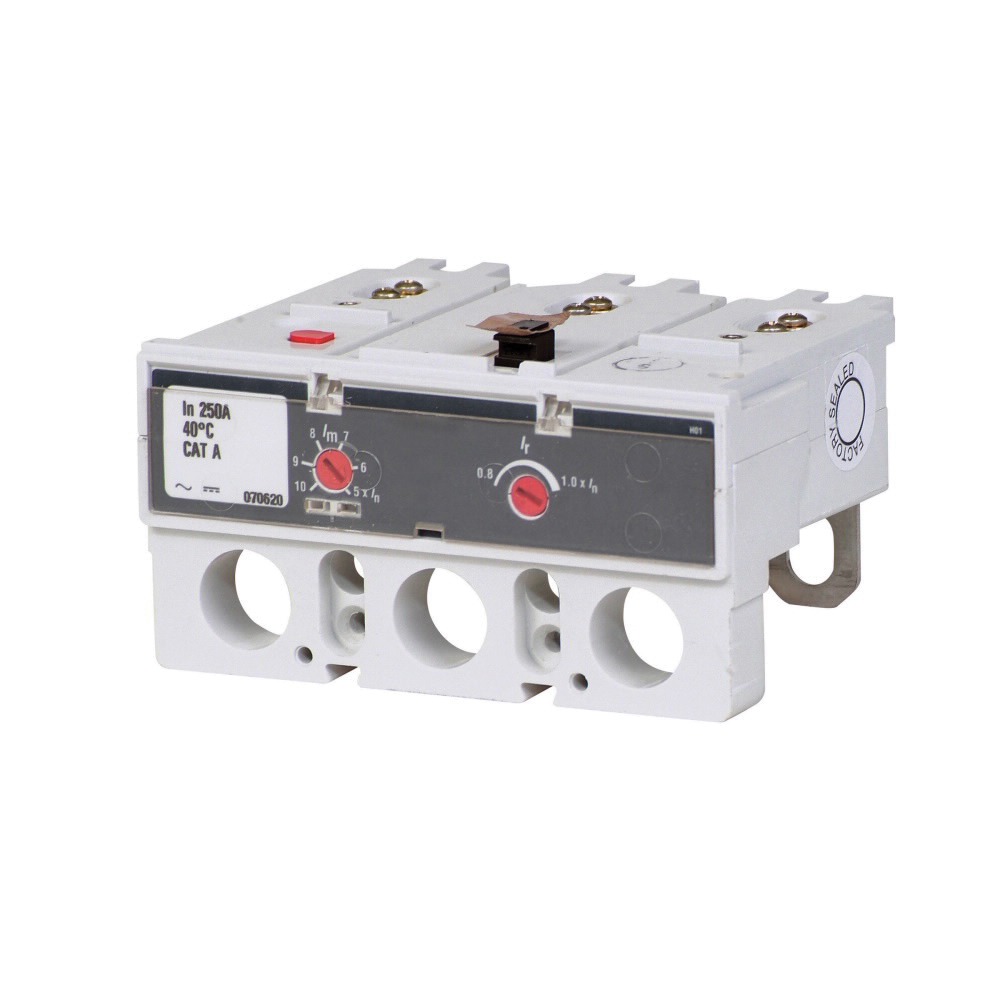

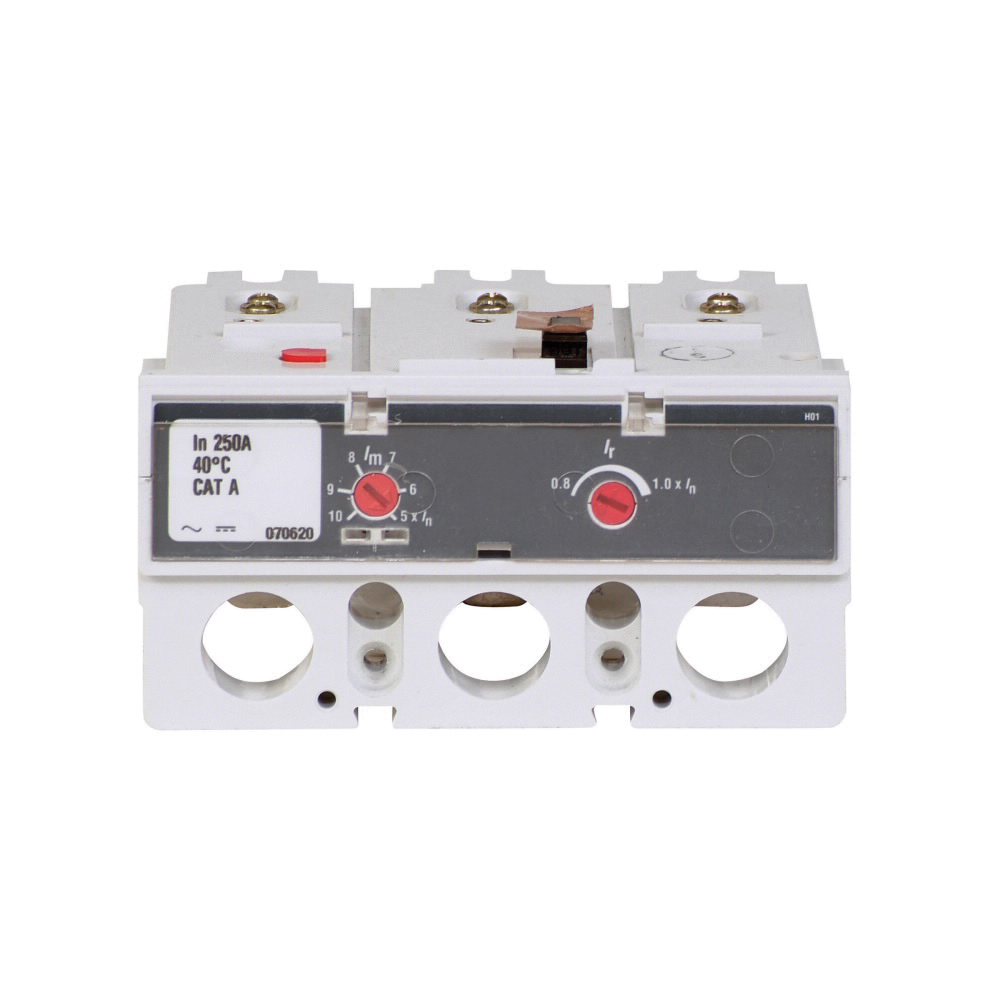

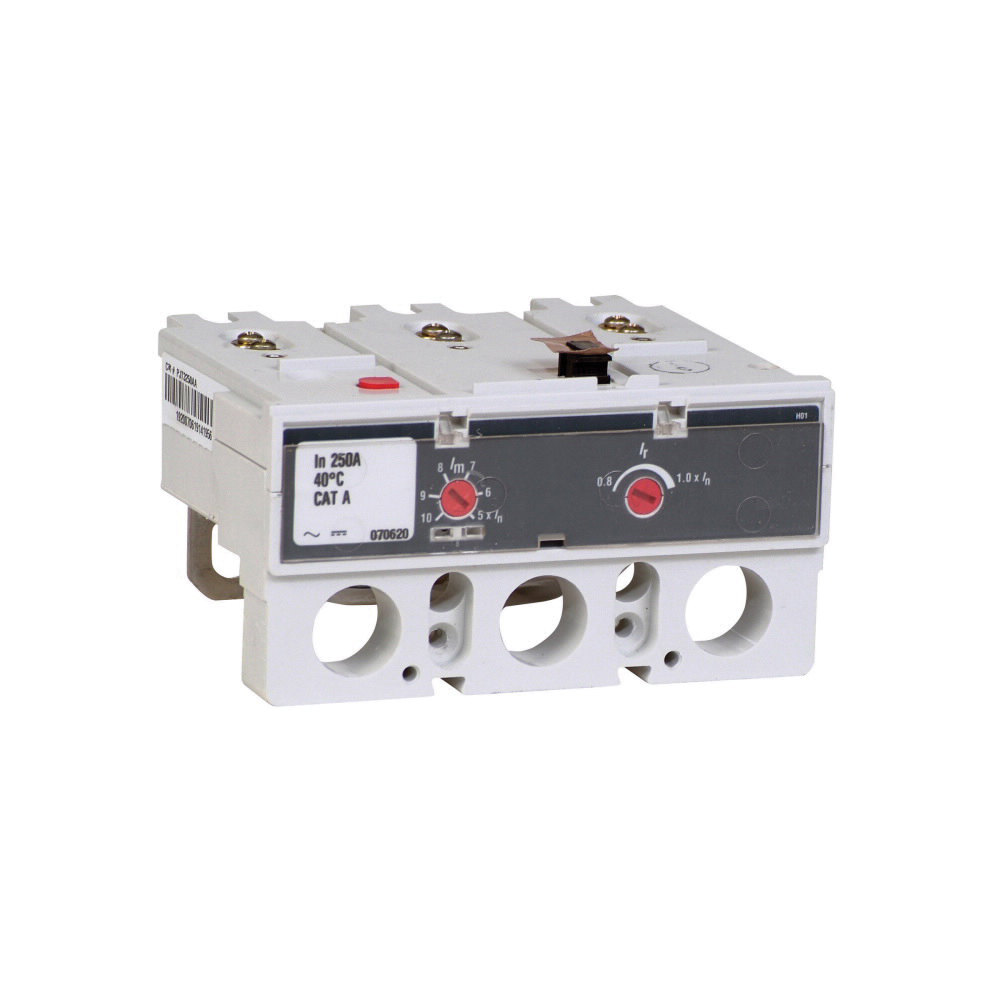

Cutler-Hammer JT3225T Trip Unit

Cutler-Hammer C Series JT3225T Trip Unit

Cutler-Hammer C Series JT3225T Trip Unit JT3225T

Cutler-Hammer Trip Unit, Series: C Series, 225 A, 42 kA Interrupt Rating, 3 Poles, Adjustable Magnetic, Fixed Thermal Trip, JK Frame, For Use With: Types JD, HJD and JDC Thermal Magnetic Circuit Breakers, 7.1 in L x 4.3 in W x 5.3 in H, JT Circuit Breaker Type Additional Information

Additional Information      :      JT Circuit Breaker Type
Amperage Rating      :      225 A
Dimensions      :      7.1 in L x 4.3 in W x 5.3 in H
Frame Type      :      JK
Interrupt Rating      :      42 kA
Number of Poles      :      3
Series      :      C Series
Suitable For Use With      :      Types JD, HJD and JDC Thermal Magnetic Circuit Breakers
Trip Type      :      Adjustable Magnetic, Fixed Thermal
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_JT3225T_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_JT3225T_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_JT3225T_Specification_Sheet.pdf
