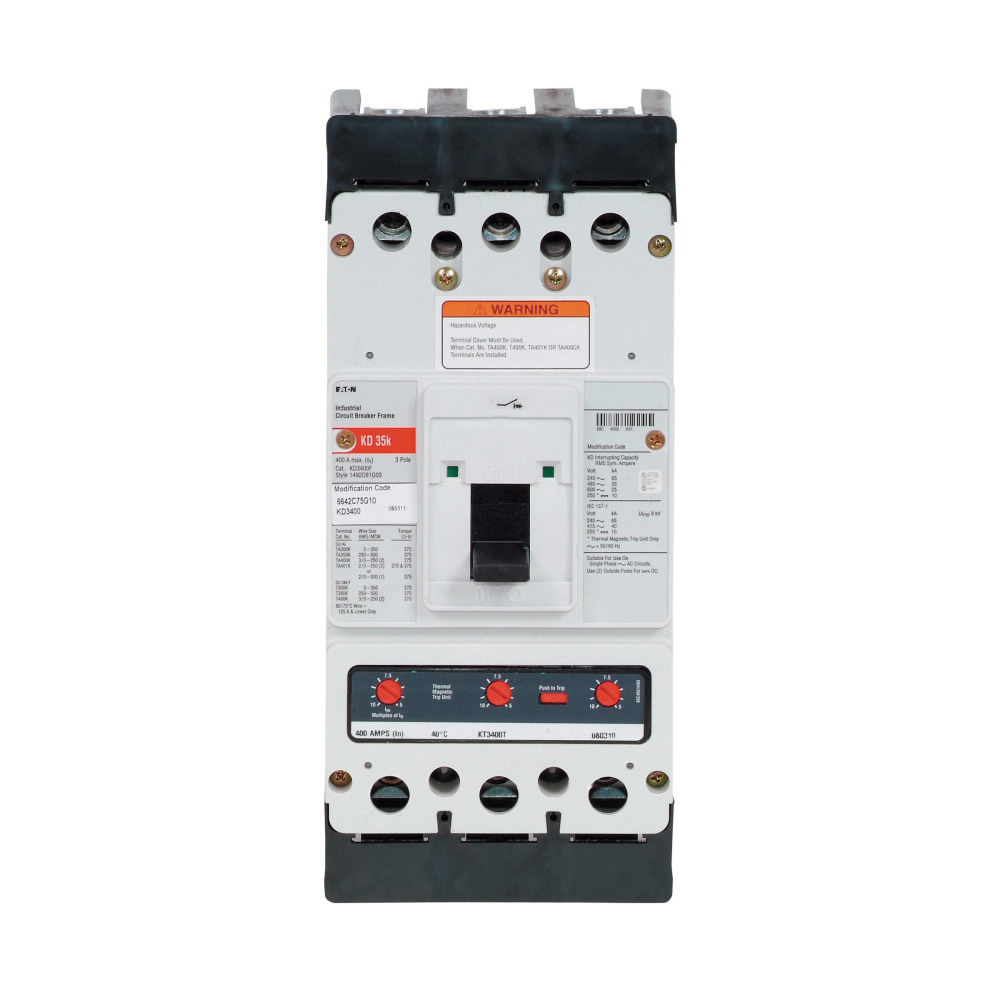

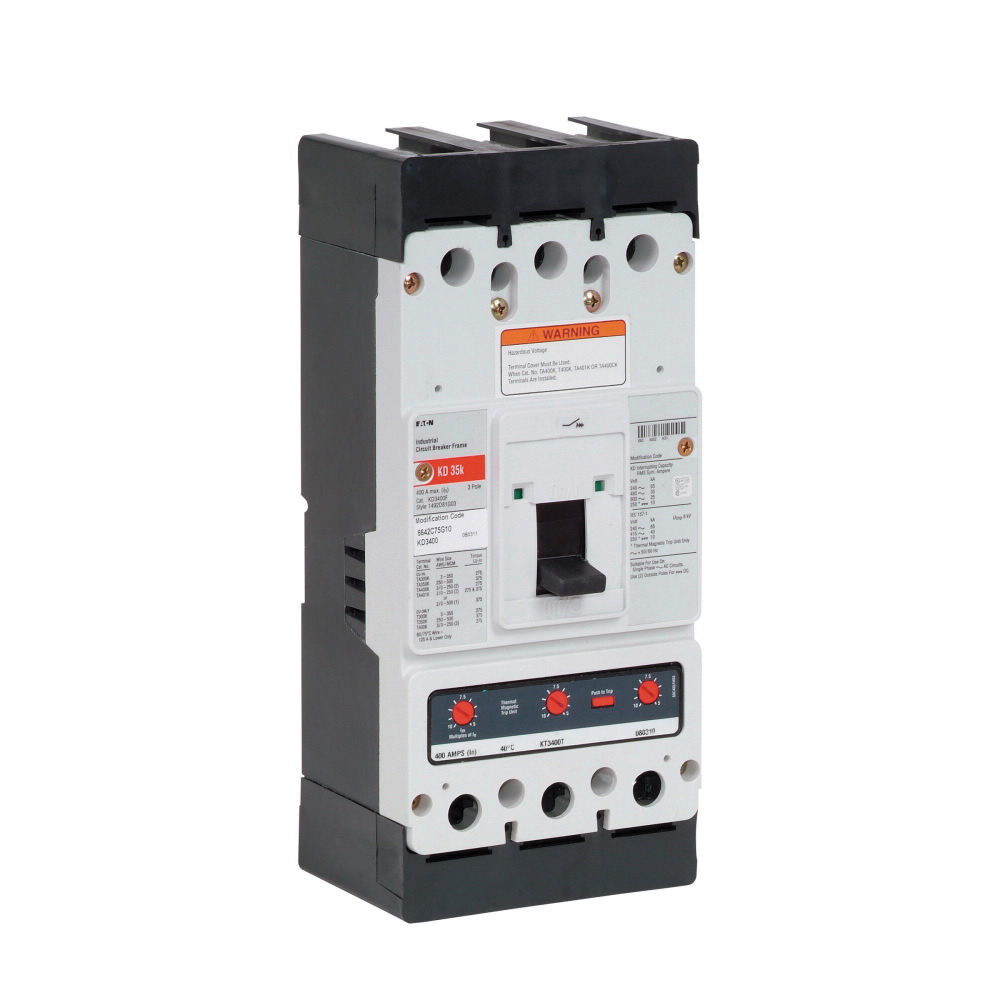

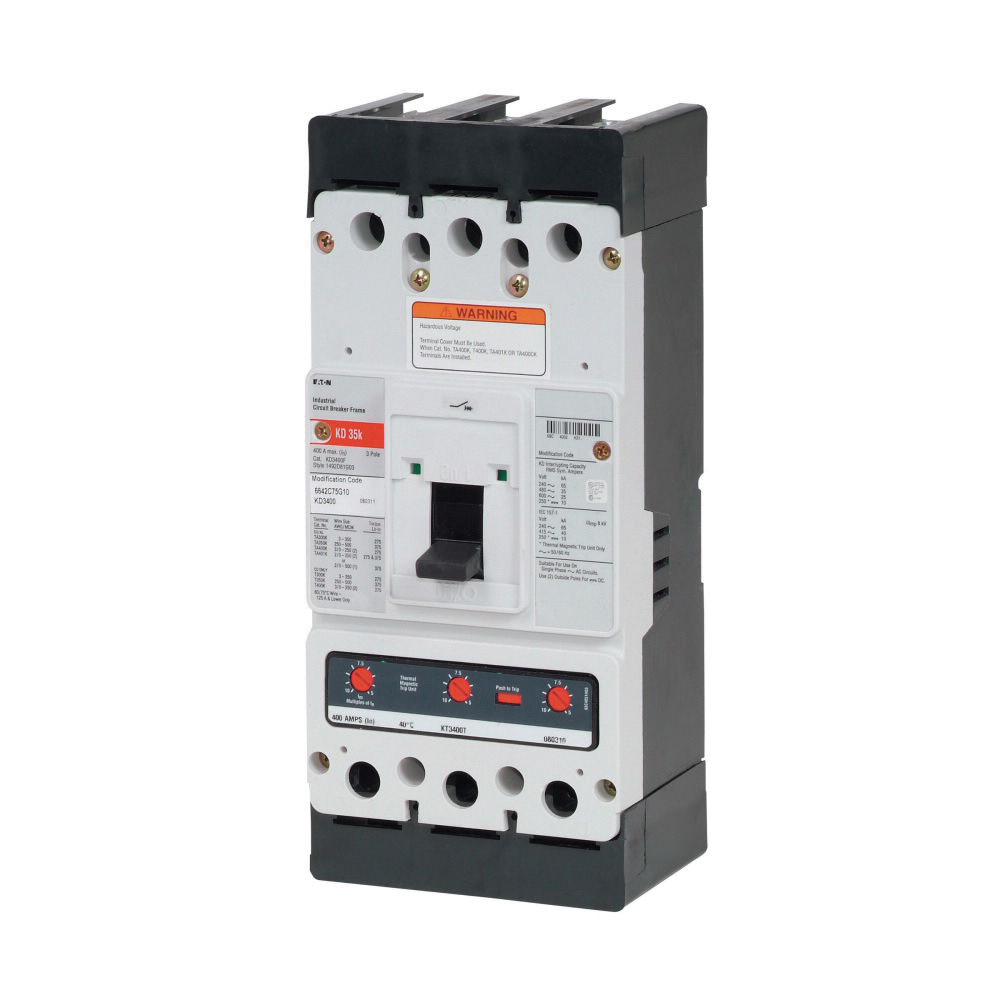

Cutler-Hammer KDB3400M01 Type KDB Molded Case Circuit Breaker
Cutler-Hammer KDB3400M01 Type KDB Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 35 kA, 65 kA Interrupt, 3-Pole
Cutler-Hammer KDB3400M01 Type KDB Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 35 kA, 65 kA Interrupt, 3-Pole KDB3400M01- Brand Name: Cutler-Hammer
- Part Number: KDB3400M01
- UPC: 786679209387
- Check Stock
Add To Favorites ListCutler-Hammer Type KDB Molded Case Circuit Breaker, 400 A, 600 VAC/250 VDC, 50/60 Hz, 35 kA, 65 kA Interrupt Rating, 3 Poles, K Frame, Fixed Thermal, Fixed Magnetic Trip, Line and Load Lug Terminal, 5-1/2 in Width, 4.1 in Length, 5-1/2 in Height
| Amperage Rating | : | 400 A |
| Frame Type | : | K |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 5-1/2 in |
| Interrupt Rating | : | 35 kA, 65 kA |
| Length | : | 4.1 in |
| Number of Poles | : | 3 |
| Terminal Type | : | Line and Load Lug |
| Trip Type | : | Fixed Thermal, Fixed Magnetic |
| Voltage Rating | : | 600 VAC/250 VDC |
| Width | : | 5-1/2 in |
- Single-pole imperial mounting base
- 65 kAIC at 240 VAC, 35 kAIC at 480 VAC interrupt rating
Instruction/Installation Manual
