Cutler-Hammer M22S-DL-R-K01-230R M22S-DL-R-K01-230R

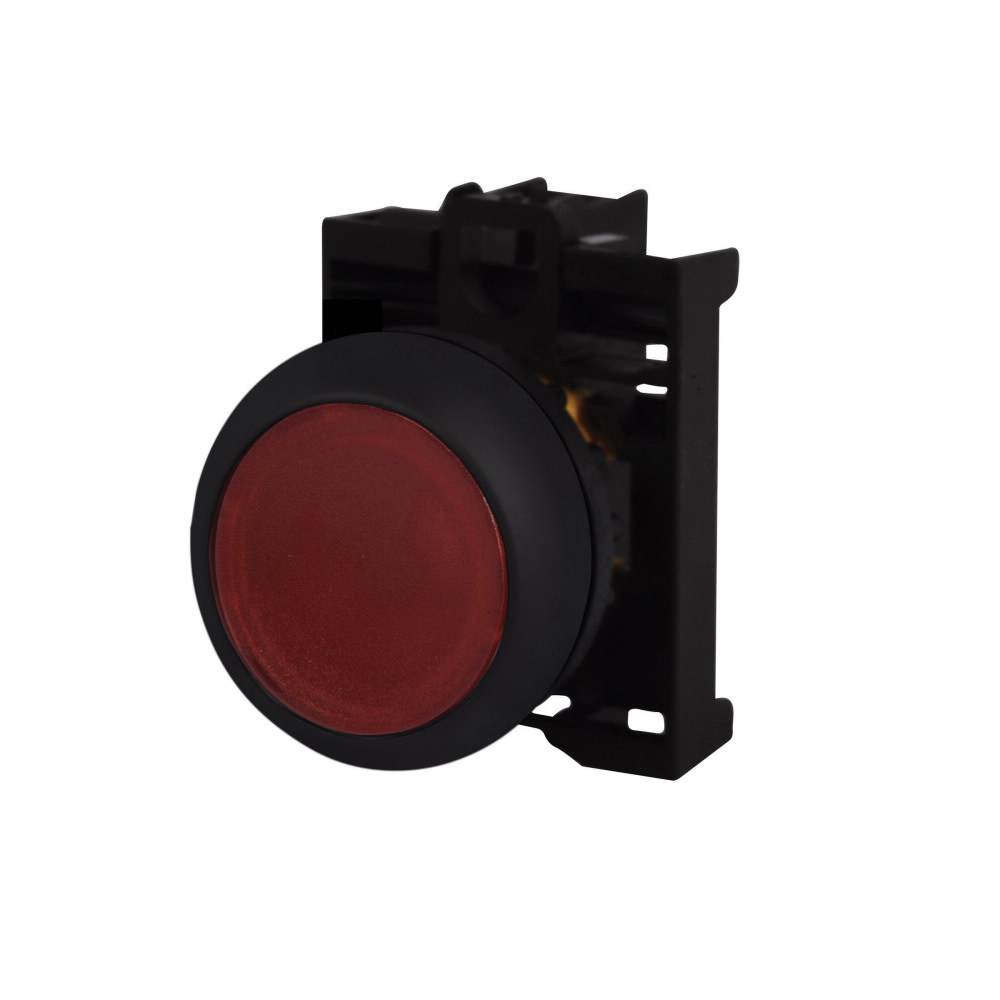

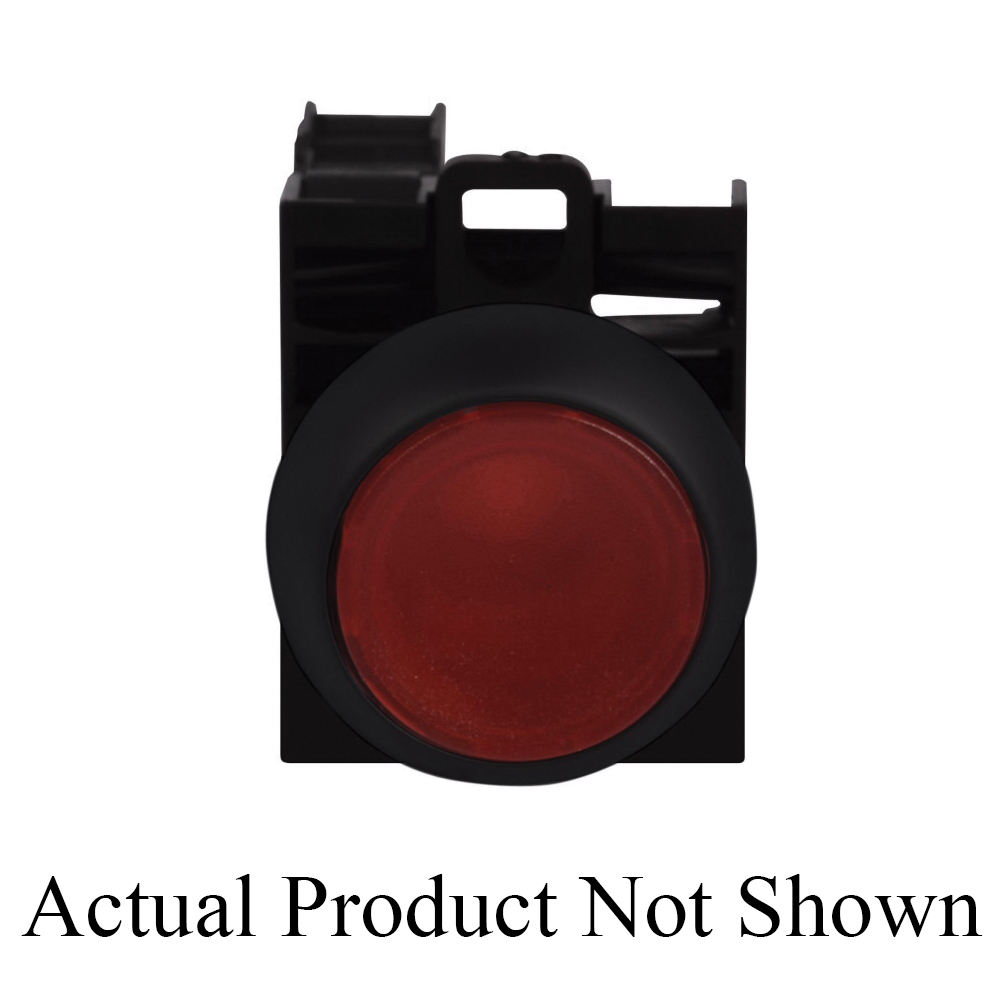

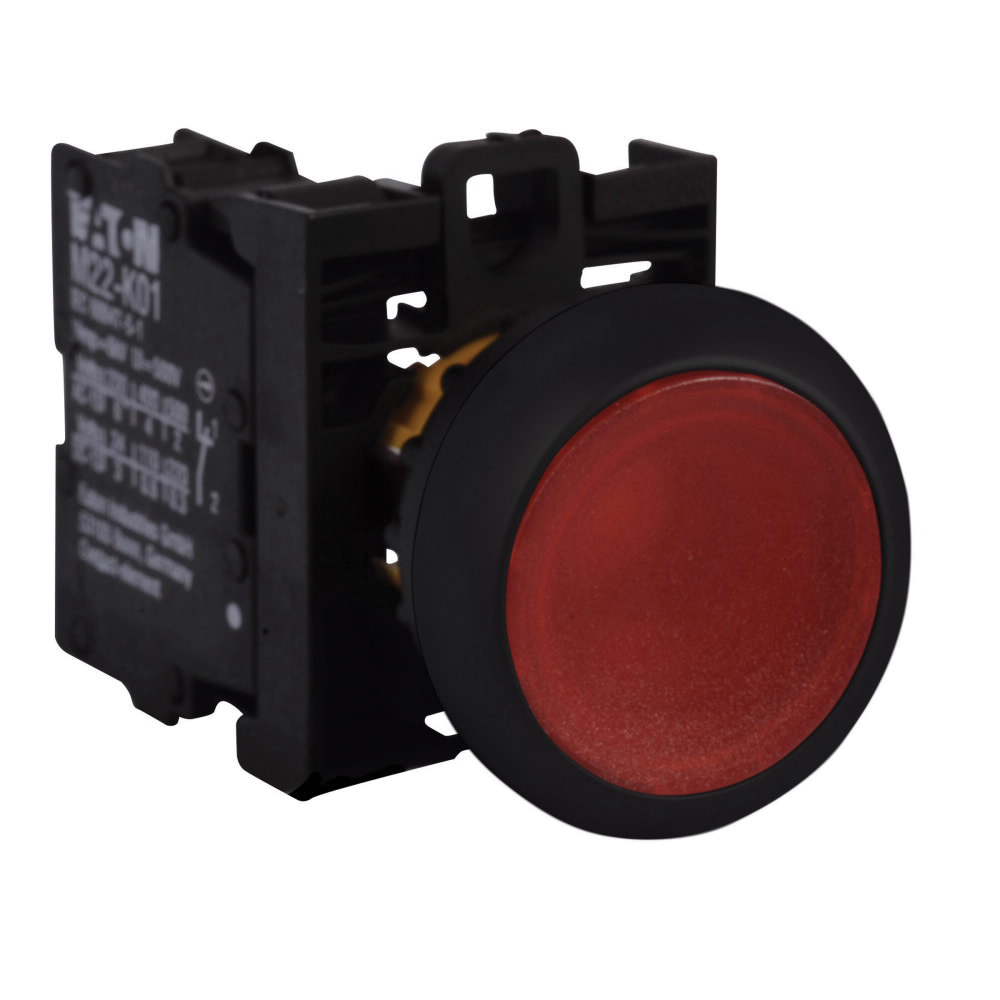

Cutler-Hammer M22S-DL-R-K01-230R Illuminated Pushbutton

Cutler-Hammer M22 Series M22S-DL-R-K01-230R Illuminated Pushbutton, 85 to 264 V, 1 NC, Momentary Action, IP67/69K

Cutler-Hammer M22 Series M22S-DL-R-K01-230R Illuminated Pushbutton, 85 to 264 V, 1 NC, Momentary Action, IP67/69K M22S-DL-R-K01-230R

Cutler-Hammer Illuminated Pushbutton, Series: M22 Series, 85 to 264 V, 1 NC Contact Configuration, Momentary Action, Button Actuator, NEMA 4X/13 Enclosure, IP Rating: IP67/69K, Flush Mounting, Red Actuator Color, 2.16 in Height, 2.16 in Width, 1.46 in Depth, Chrome Bezel, 22.5 mm Size Additional Information

Action Type      :      Momentary
Actuator Color      :      Red
Actuator Type      :      Button
Additional Information      :      Chrome Bezel, 22.5 mm Size
Contact Configuration      :      1 NC
Depth      :      1.46 in
Enclosure Type      :      NEMA 4X/13
Height      :      2.16 in
IP Rating      :      IP67/69K
Mounting Type      :      Flush
Series      :      M22 Series
Voltage Rating      :      85 to 264 V
Width      :      2.16 in
  • Positively driven contact blocks
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_10250TC59_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_M22XDS_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_M22SDLRK01230R_Specification_Sheet.pdf
