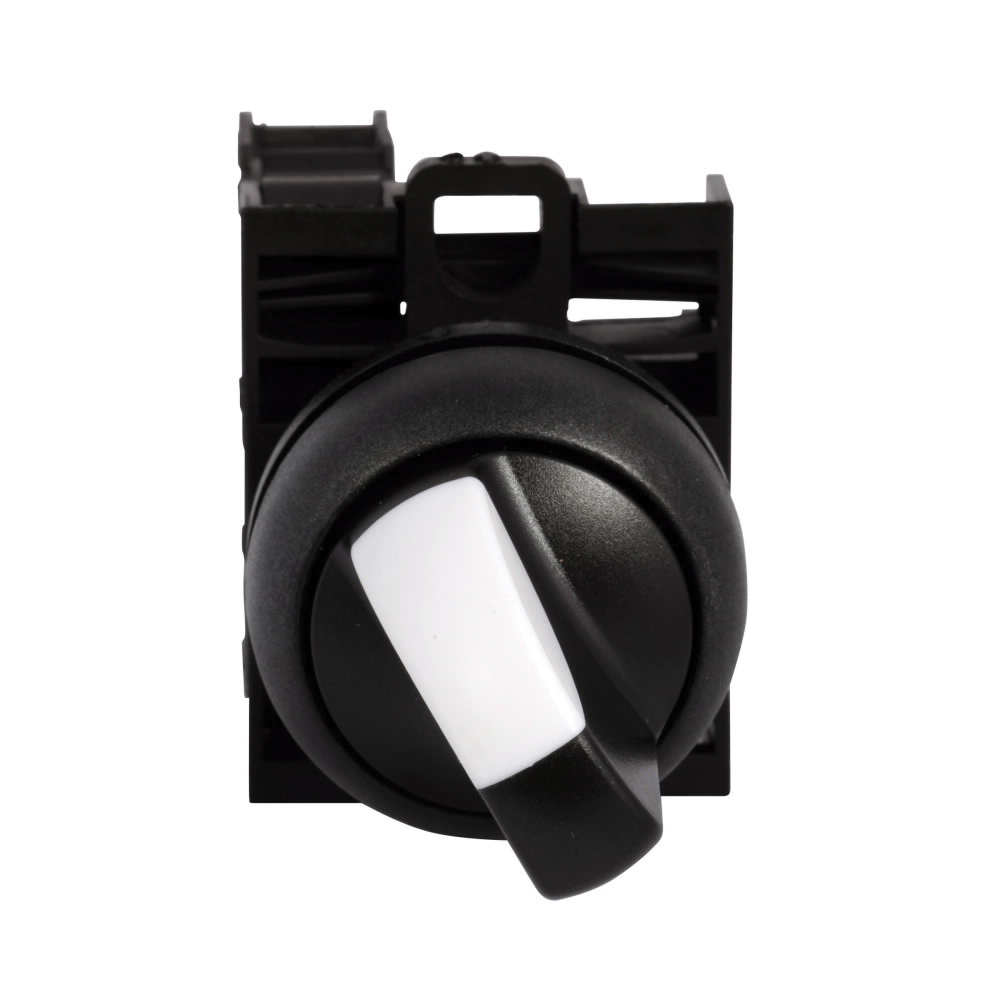

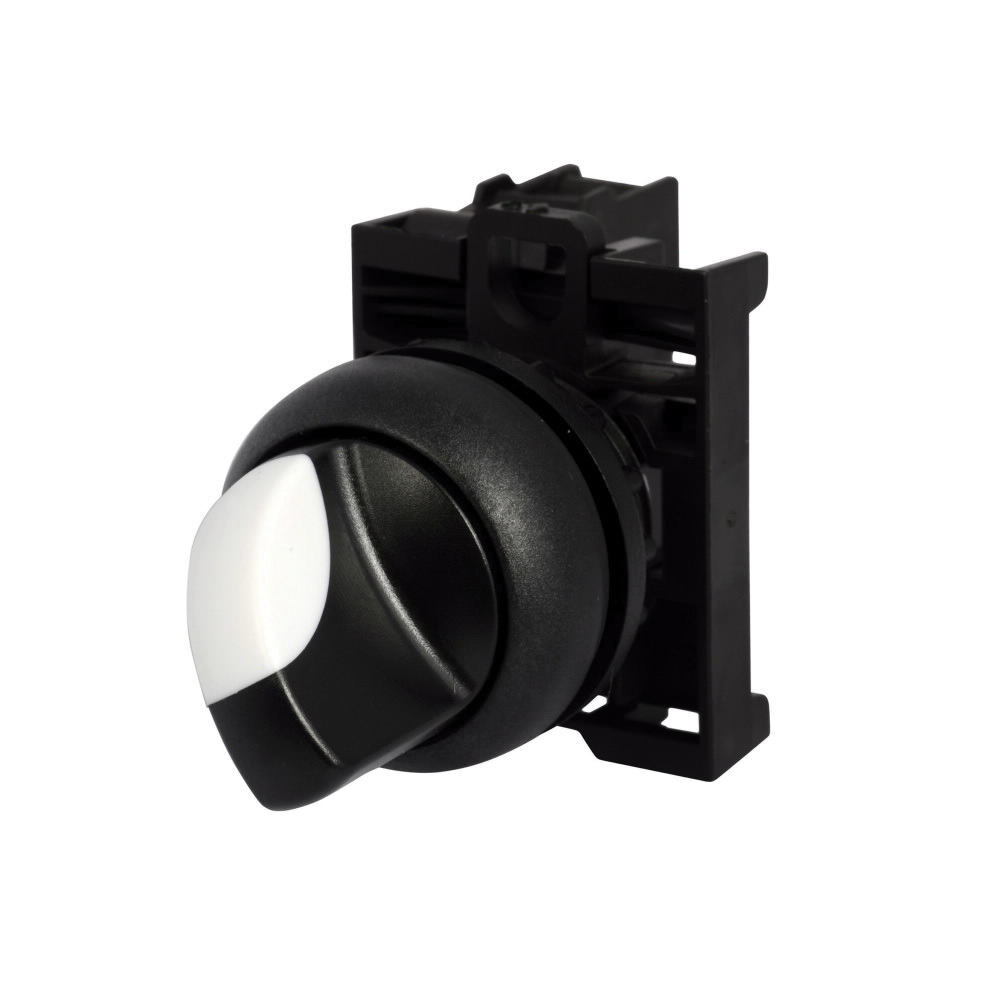

Cutler-Hammer M22S-WKV-K10 M22S-WKV-K10

Cutler-Hammer M22 Series M22S-WKV-K10 Modular Pushbutton Selector Switch, Maintained V-Position Action, 2 -Position

Cutler-Hammer M22 Series M22S-WKV-K10 Modular Pushbutton Selector Switch, Maintained V-Position Action, 2 -Position M22S-WKV-K10

Cutler-Hammer Modular Pushbutton Selector Switch, Series: M22 Series, 1 NO Contact Configuration, 2 Positions, Maintained V-Position Action, Knob Actuator, NEMA 4X/13 Enclosure, IP Rating: IP67/69K, 2.83 in Height, 1.18 in Width, 1.46 in Depth, 22.5 mm Size, Black Bezel, Non-Illuminated Additional Information

Action Type      :      Maintained V-Position
Actuator Type      :      Knob
Additional Information      :      22.5 mm Size, Black Bezel, Non-Illuminated
Contact Configuration      :      1 NO
Depth      :      1.46 in
Enclosure Type      :      NEMA 4X/13
Height      :      2.83 in
IP Rating      :      IP67/69K
Number of Positions      :      2
Series      :      M22 Series
Width      :      1.18 in
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_10250TC59_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_M22SWKVK10_Specification_Sheet.pdf
