Cutler-Hammer MB816B200BTS MB816B200BTS

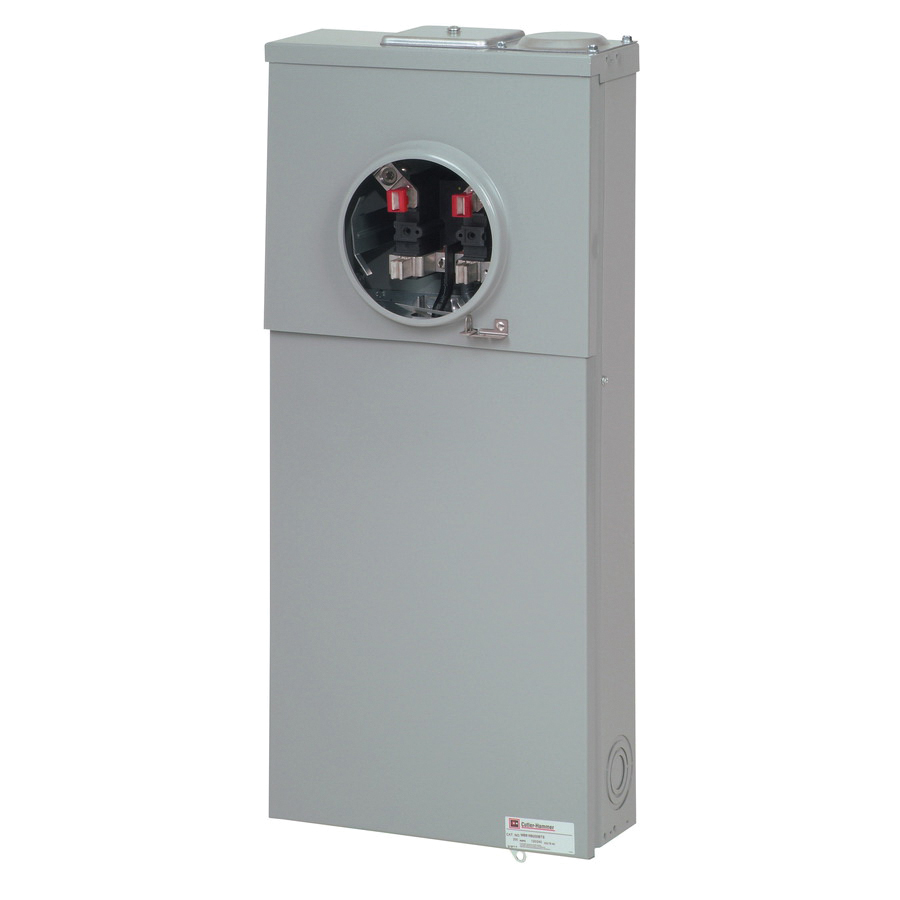

Cutler-Hammer MB816B200BTS Meter Breaker

Cutler-Hammer BR Series MB816B200BTS Meter Breaker, 120/240 VAC, 200 A, 16-Pole, 10 kA Interrupt

Cutler-Hammer BR Series MB816B200BTS Meter Breaker, 120/240 VAC, 200 A, 16-Pole, 10 kA Interrupt MB816B200BTS

A meter breaker combines 2 products into one, a 1 m socket and a load center, a.k.a. the circuit breaker box. Sometimes these units are called all-in-ones or combo units. Certain utilities will specify a meter breaker instead of a meter socket and load center. The meter breaker is used where electricity enters a home or dwelling. The utility attaches a meter in the socket to measure power consumption. The load center portion is used to distribute the power throughout the home using various circuits.

Amperage Rating      :      200 A
Color      :      Gray
Dimensions      :      36 in L x 15 in W x 5-1/2 in H
Interrupt Rating      :      10 kA
Material      :      Aluminum
Mounting Type      :      Surface
Number of Poles      :      16
Phase      :      1 ph
Series      :      BR Series
Voltage Rating      :      120/240 VAC
Wire Size      :      3 AWG
  • Includes CSR2200 main breaker, overhead or underground service, non-euserc, 8 - 16 circuit distribution section, 4 jaws, 1 socket, #6-350 Kcmil line, #6-350 Kcmil ground
  • Eight-spaces
  • Bottom and top breaker feed
  • Meets NEC wire bending space requirements
  • Commercial-grade main breaker
  • Raised interior with built-in wire way for easier installation
  • Uses type BR circuit breakers
  • Ringless type meter socket
