Cutler-Hammer S801+V65N3S S801+V65N3S

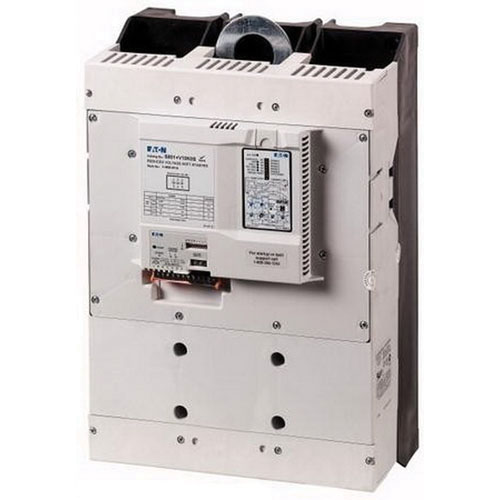

Cutler-Hammer S801+V65N3S Non-Combination Soft Starter

Cutler-Hammer S801+V65N3S Non-Combination Soft Starter, 200 to 600 V, 650 A, 600 hp, 3-Pole

Cutler-Hammer S801+V65N3S Non-Combination Soft Starter, 200 to 600 V, 650 A, 600 hp, 3-Pole S801+V65N3S

Cutler-Hammer Non-Combination Soft Starter, 200 to 600 V, 650 A, HP Rating: 600 hp, 47 to 63 Hz, 3 Pole, 3 ph, Add-On Lug Kit, -30 to 50 deg C, 7.23 in Height, 16.57 in Width, 11.03 in D, Additional Information: Trip Class 5, 10, 20, 30, Less Than 95% Non-Condensing Humidity

Additional Information      :      Trip Class 5, 10, 20, 30, Less Than 95% Non-Condensing Humidity
Amperage Rating      :      650 A
Connection Type      :      Add-On Lug Kit
Depth      :      11.03 in
Frequency Rating      :      47 to 63 Hz
HP Rating      :      600 hp
Height      :      7.23 in
Number of Poles      :      3
Phase      :      3 ph
Temperature Rating      :      -30 to 50 deg C
Voltage Rating      :      200 to 600 V
Width      :      16.57 in
  • Built-in overload protection and bypass contactor
  • Adjustable ramp time, kick start control with torque control and has IP20 deg of protection
  • Offers programmable overload settings, 31 - 100% 3.2:1 of rated current for the unit
  • Three pole frame V starter is easy-to-use control interface module and reduced wear on belts, gears, chains, clutches, shafts/bearings
  • Allows for controlling inrush current to the motor with reduced stable power grid and can lower peak demand charges
  • Comes with add-on lug kit connection
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_S801_V65N3S_Catalog.pdf
