Cutler-Hammer TRW27 TRW27

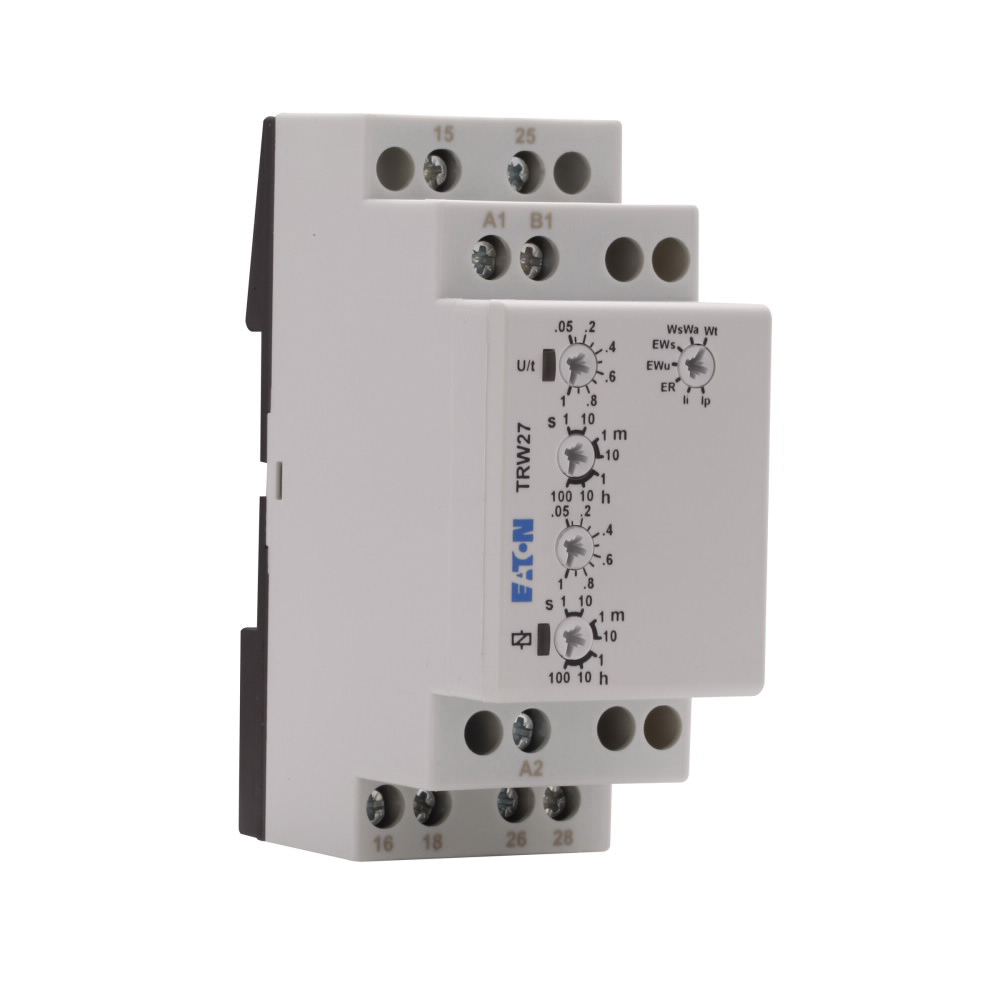

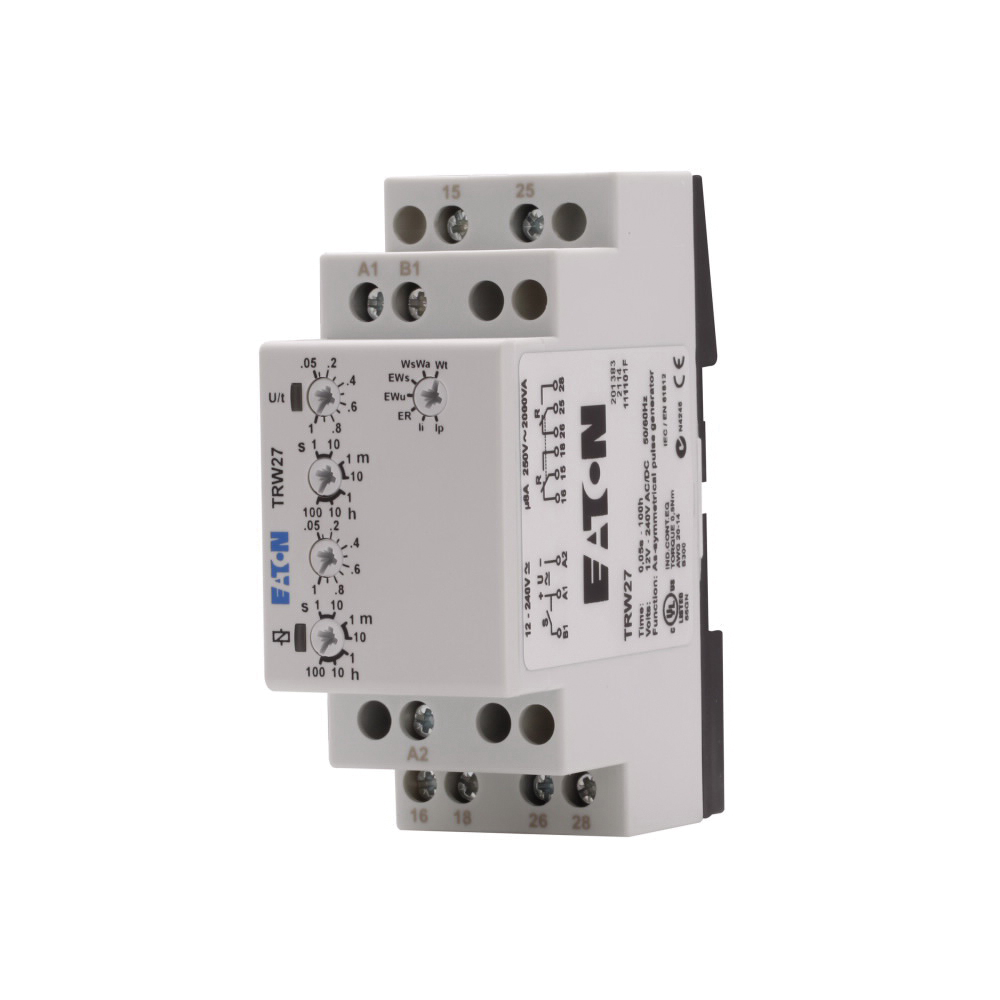

Cutler-Hammer TR Series TRW27 4-Function Timing Relay, 12 to 240 VAC/VDC Input, 0.05 s Time Setting, DPDT

Cutler-Hammer TR Series TRW27 4-Function Timing Relay, 12 to 240 VAC/VDC Input, 0.05 s Time Setting, DPDT TRW27

EATON's Universal TR series timers are our most flexible and cost-effective timing relays available. Products are available with up to seven user-selectable functions and seven user-selectable time ranges. Each unit is DIN rail mountable with a direct connection, eliminating the need for additional sockets. The universal TR series timers are available in SPDT and DPDT contact configurations and have a compact IEC-style footprint and a universal input voltage range for AC and DC applications.

Accuracy      :      +/- 1 %
Additional Information      :      50 to 60 Hz Frequency Rating, 100% Duty Cycle, 4 kV Rated Surge Voltage
Body Material      :      Plastic
Contact Configuration      :      DPDT
Contact Rating      :      8 A
Dimensions      :      2.56 in L x 1.38 in W x 3.43 in H
Enclosure Type      :      IP40
Input Voltage      :      12 to 240 VAC/VDC
Mounting Type      :      DIN Rail
Power Consumption      :      6 VA
Series      :      TR Series
Time Setting Range      :      0.05 s
Timing Relay Functionality      :      Universal TR
  • Multiple user-selectable timing functions and timing ranges in a single unit reduce product variations and stock keeping units
  • Universal input voltages from 12 or 24 to 240 VAC or VDC eliminate the need to order and stock separate coil voltages
  • Compact, DIN rail mountable case reduces panel size
  • Advanced LED indication makes troubleshooting easy
  • Staggered terminal locations allow access to lower-level terminals after wiring
  • Asymmetrical flasher pause or pulse first
  • Pulse sequence monitoring
  • Single shot leading or trailing edge voltage controlled and control contact
  • ON/OFF delay with control contact
