Cutler-Hammer XTAE050D00TD5E100 XTAE050D00TD5E100

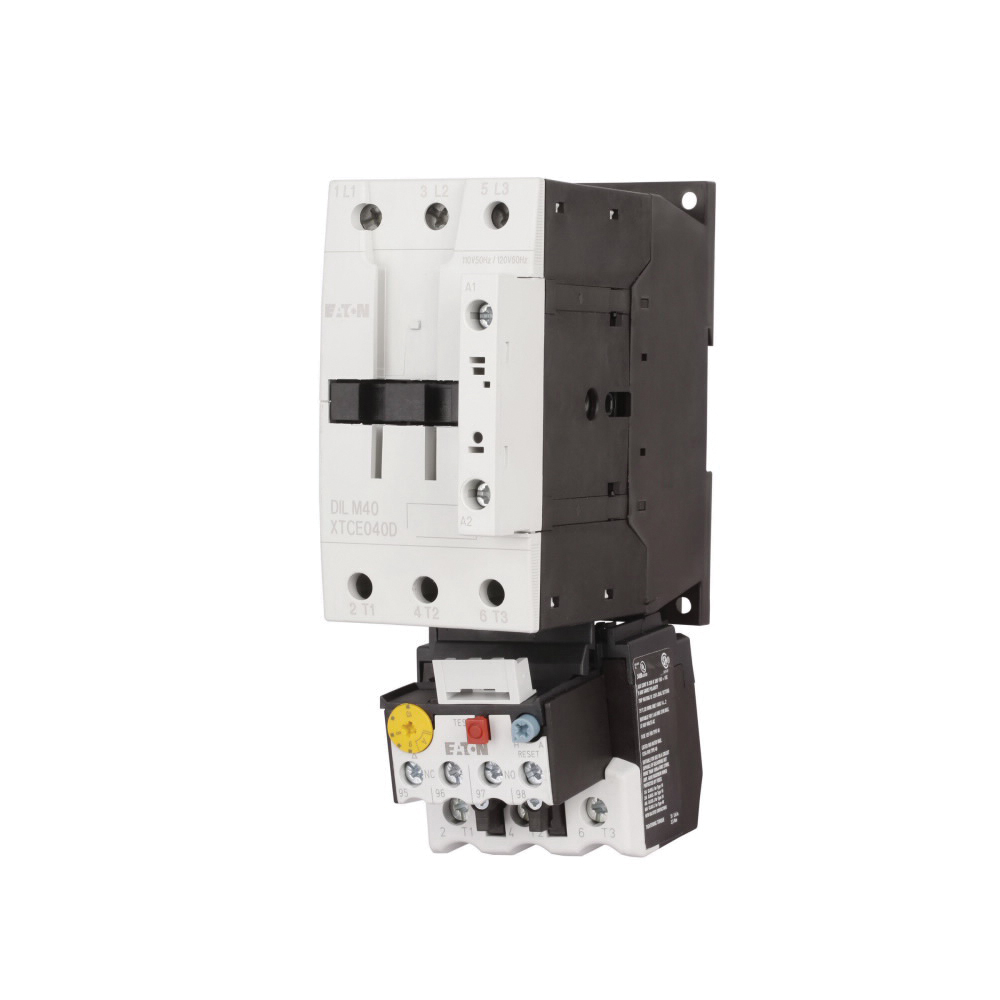

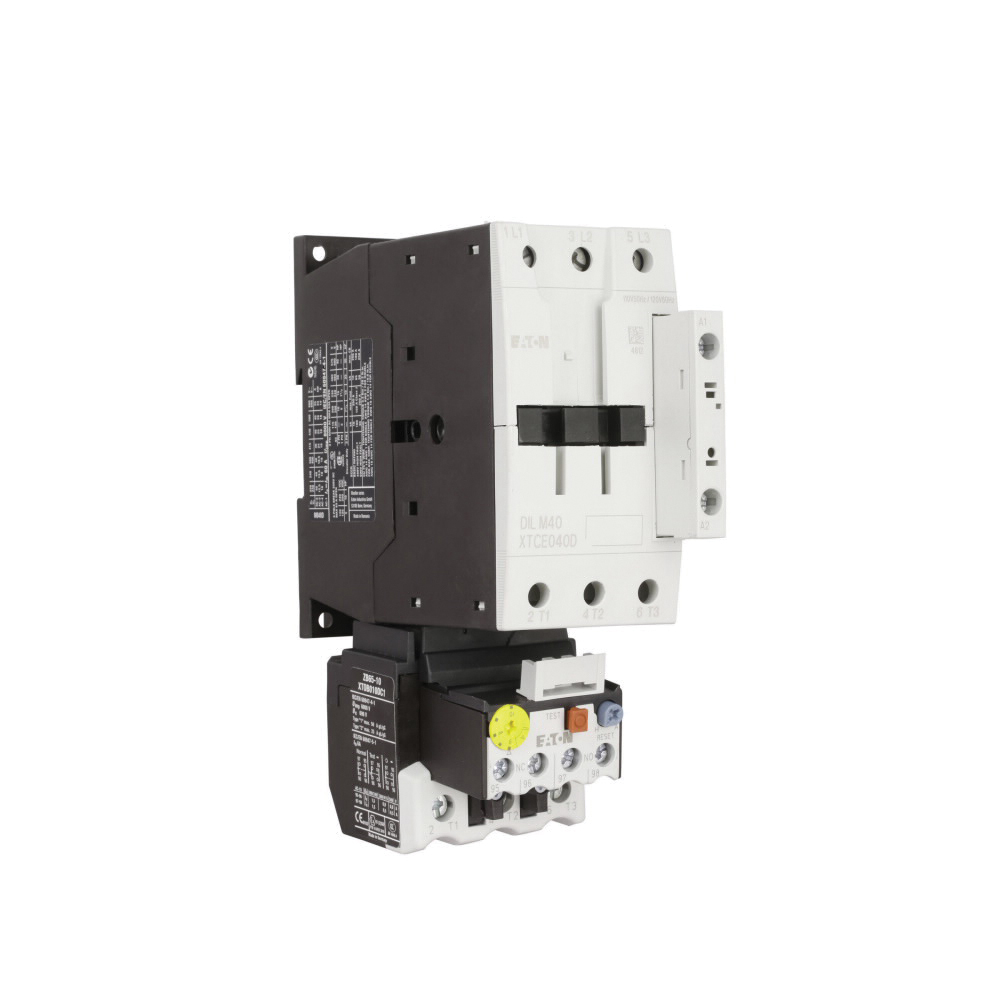

Cutler-Hammer XTAE050D00TD5E100 Full Voltage Non-Reversing IEC Electronic Motor Starter

Cutler-Hammer XT Series XTAE050D00TD5E100 Full Voltage Non-Reversing IEC Electronic Motor Starter, 575/660/690 V, 50 A

Cutler-Hammer XT Series XTAE050D00TD5E100 Full Voltage Non-Reversing IEC Electronic Motor Starter, 575/660/690 V, 50 A XTAE050D00TD5E100

Cutler-Hammer Full Voltage Non-Reversing IEC Electronic Motor Starter, Series: XT Series, 575/660/690 V, 50 A, 50 hp, 30 hp, 50/60 Hz, 3 ph Phase, 3 Poles, 24 to 27 VDC Coil Voltage, 20 to 100 A Overload Relay Current Range, Screw Terminal Connection, 9-3/4 in L x 5 in W x 7-1/4 in H, 55 mm Frame Size, D Frame Type, 0 NO, 0 NC Contact Configuration Additional Information

Additional Information      :      55 mm Frame Size, D Frame Type, 0 NO, 0 NC Contact Configuration
Amperage Rating      :      50 A
Coil Voltage      :      24 to 27 VDC
Dimensions      :      9-3/4 in L x 5 in W x 7-1/4 in H
Frequency Rating      :      50/60 Hz
HP Rating      :      50 hp, 30 hp
Number of Poles      :      3
Overload Relay Current Range      :      20 to 100 A
Phase      :      3 ph
Series      :      XT Series
Terminal Connection Type      :      Screw
Voltage Rating      :      575/660/690 V
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_XTAE007B01TD1P6_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Cutler_Hammer_XTAE050D00TD5E100_Specification_Sheet.pdf
